09.C177.11

Disc

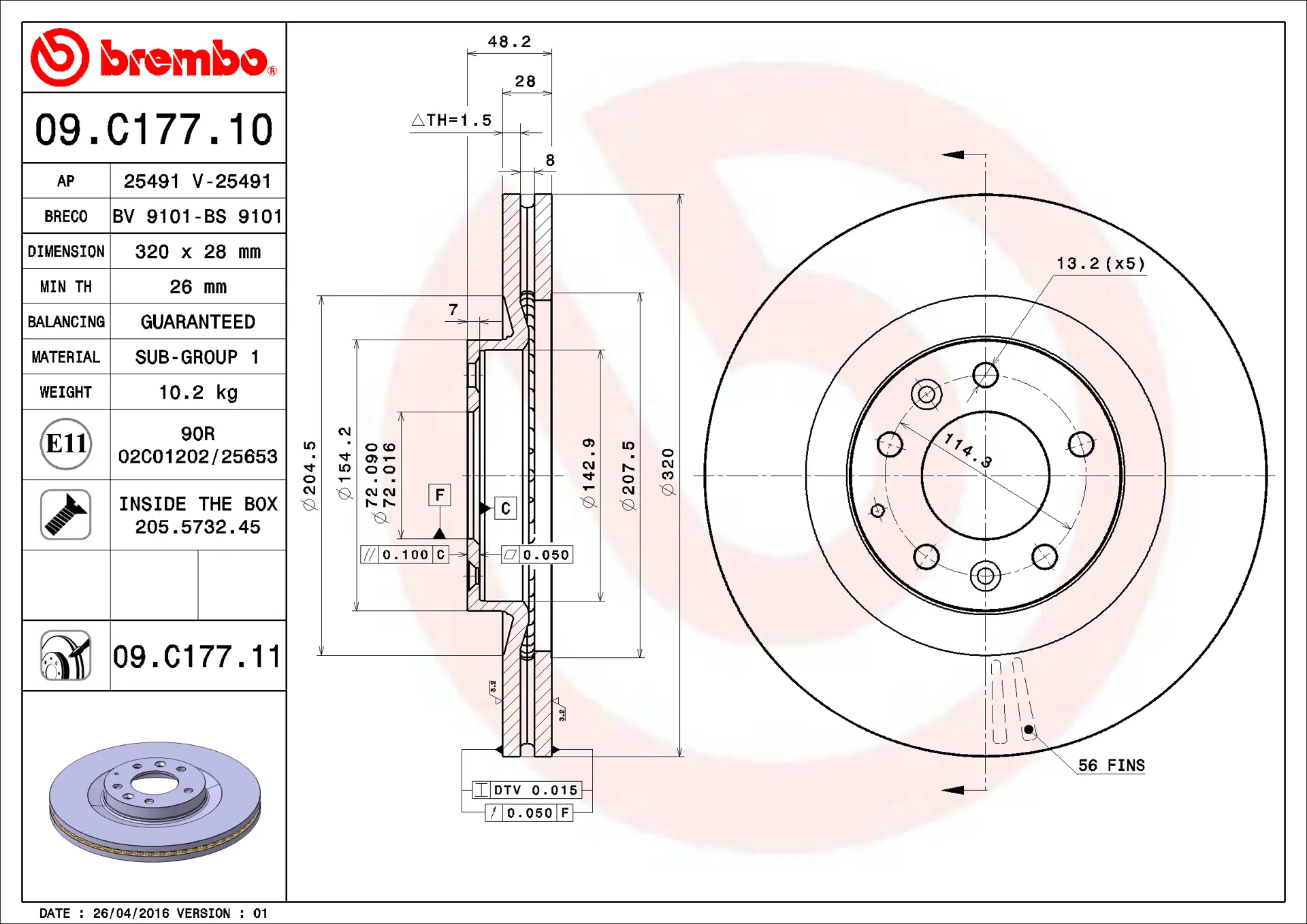

Disc technical data
Axle
Front
Diameter
320 mm
Overall height (A)
48,2 mm
Centring diameter (B)
72 mm
Number of holes (C)
5
Thickness (TH)
28 mm
Minimum thickness
26 mm
Unit per box
1
EANCode
8020584222393
Discs
Brand part numbers
Brembo 09.C177.11
AP 25491 V
Breco BV 9101
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
MAZDA EH143325X
MAZDA EH143325XA
MAZDA TD133325X
