09.C220.10

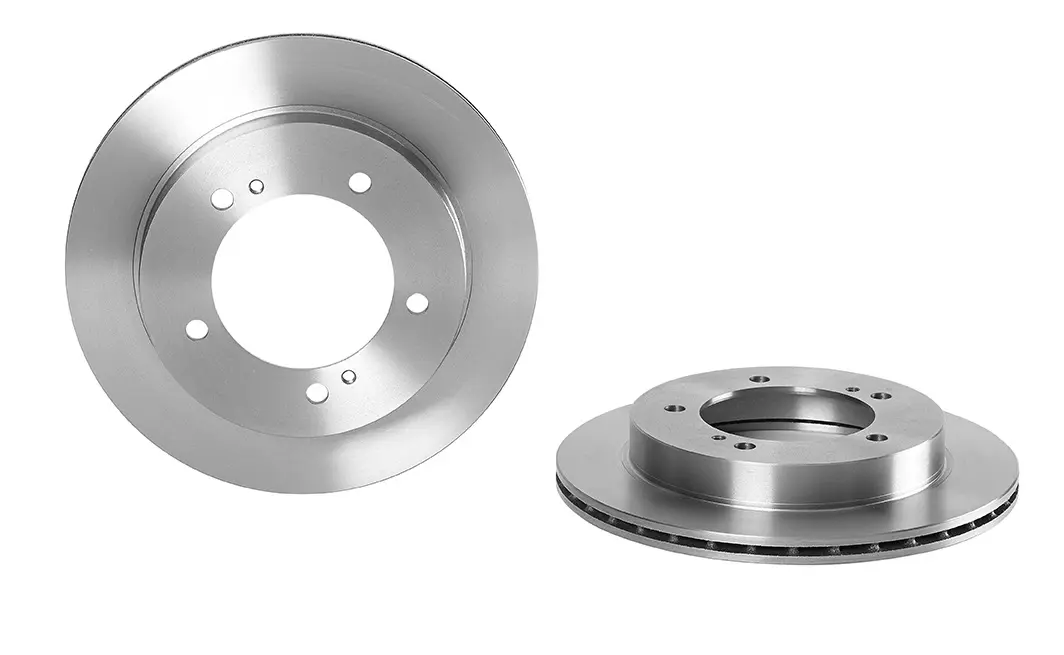

Disc

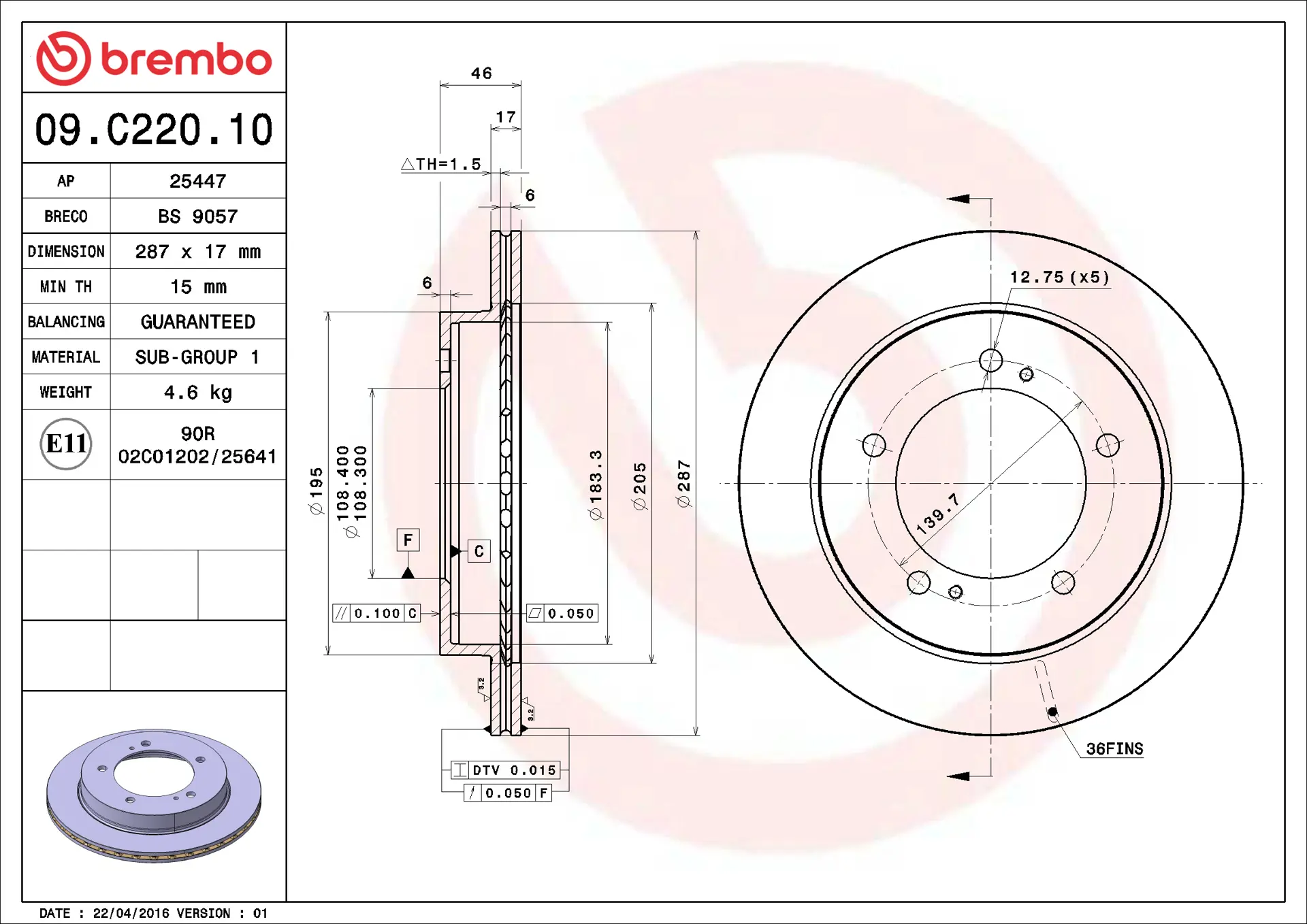

Disc technical data
Axle
Front
Diameter (Diameter)
287 mm
Overall height (A)
46 mm
Centring diameter (B)
108,3 mm
Number of holes (C)
5
Thickness (TH)
17 mm
Minimum thickness
15 mm
Unit per box
2
EANCode
8020584216842
Discs
Brand part numbers
Brembo 09.C220.10
AP 25447
Breco BS 9057
OE Part number
Compatible OE codes
SUZUKI 5521176J10
SUZUKI 5521176J11
