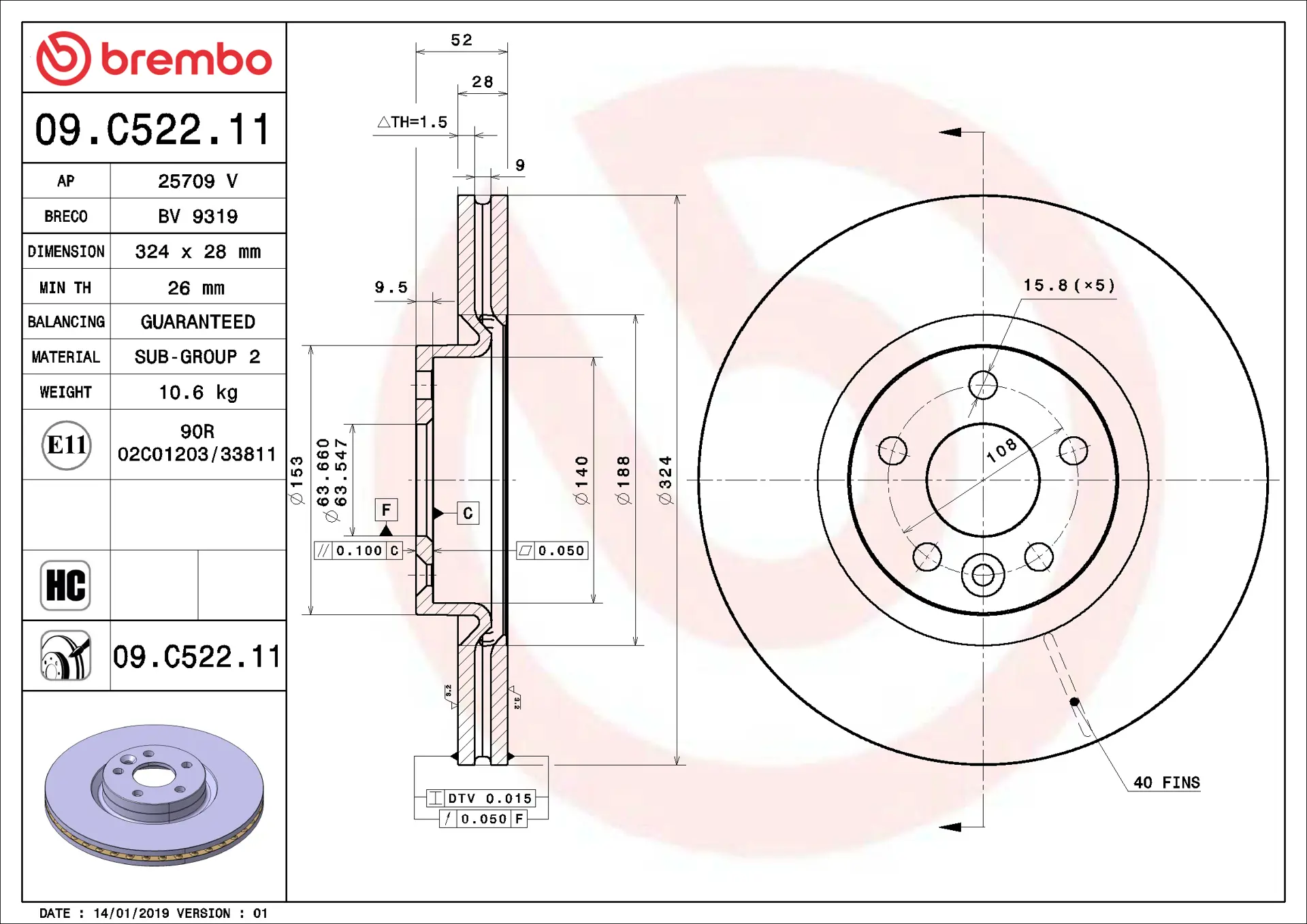

09.C522.11

Disc
Disc technical data
Axle
Front
Diameter
324 mm
Overall height (A)
52 mm
Centring diameter (B)
63,5 mm
Number of holes (C)
5
Thickness (TH)
28 mm
Minimum thickness
26 mm
Unit per box
1
EANCode
8020584232255
Discs
Brand part numbers
Brembo 09.C522.11
AP 25709 V
Breco BV 9319
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
VOLVO 31423214
VOLVO 31423305
