09.C542.21

Disc

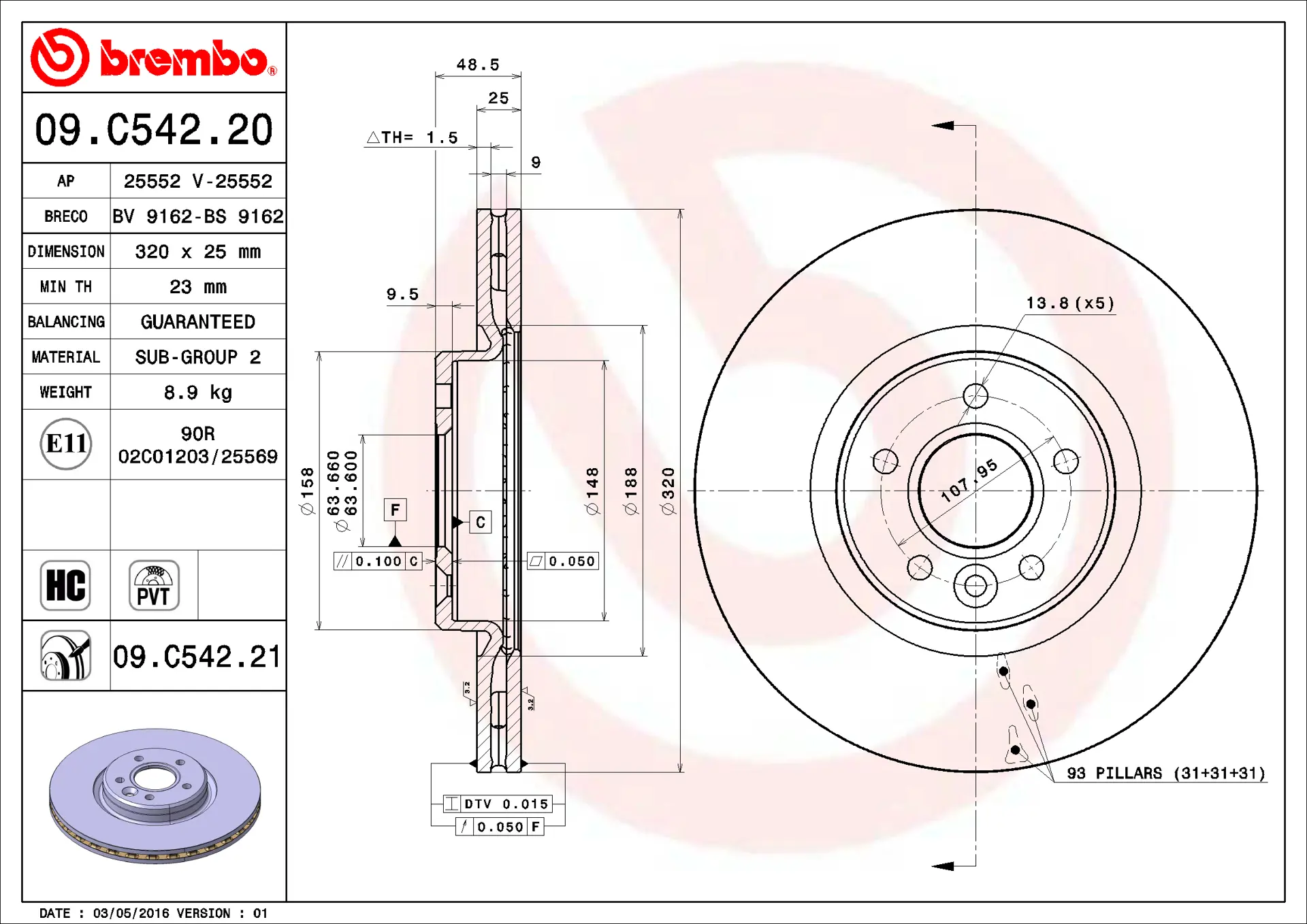

Disc technical data
Axle
Front
Diameter (Diameter)
320 mm
Overall height (A)
48,5 mm
Centring diameter (B)
63,6 mm
Number of holes (C)
5
Thickness (TH)
25 mm
Minimum thickness
23 mm
Unit per box
1
EANCode
8020584221082
Discs
Brand part numbers
Brembo 09.C542.21
AP 25552 V
Breco BV 9162
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

VOLVO

VOLVO (CHANGAN)

OE Part number
Compatible OE codes
VOLVO 31329122
VOLVO 31341644
VOLVO 31381376
VOLVO 31400818
VOLVO 31400938
VOLVO 31400942
