14.7243.10

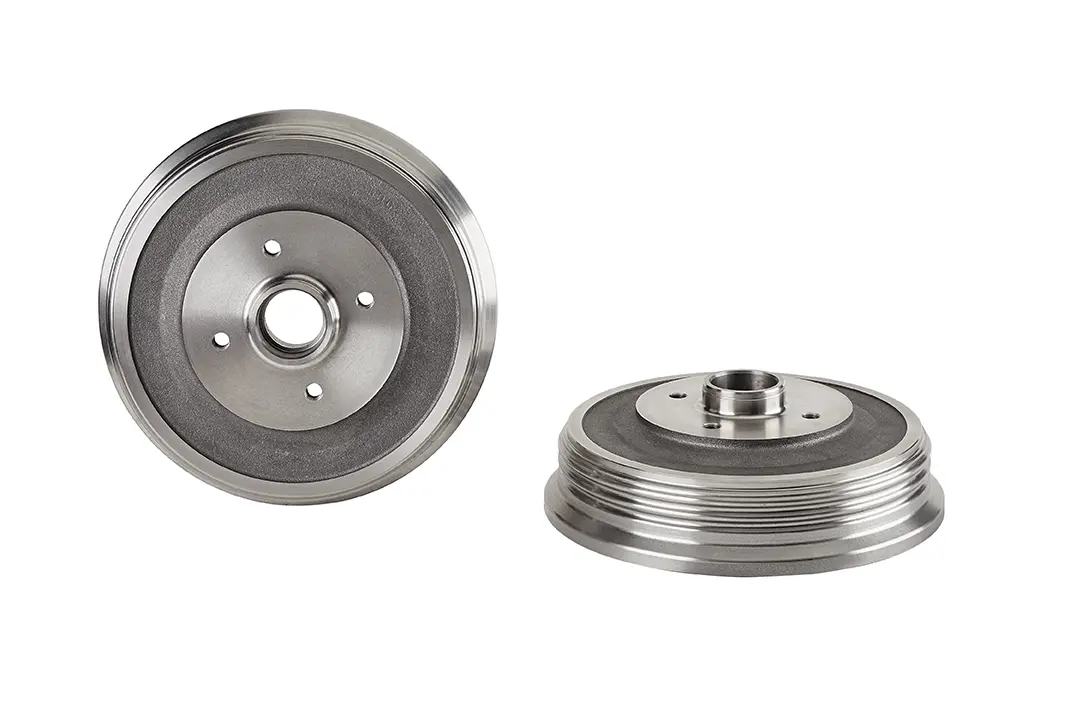

Drum

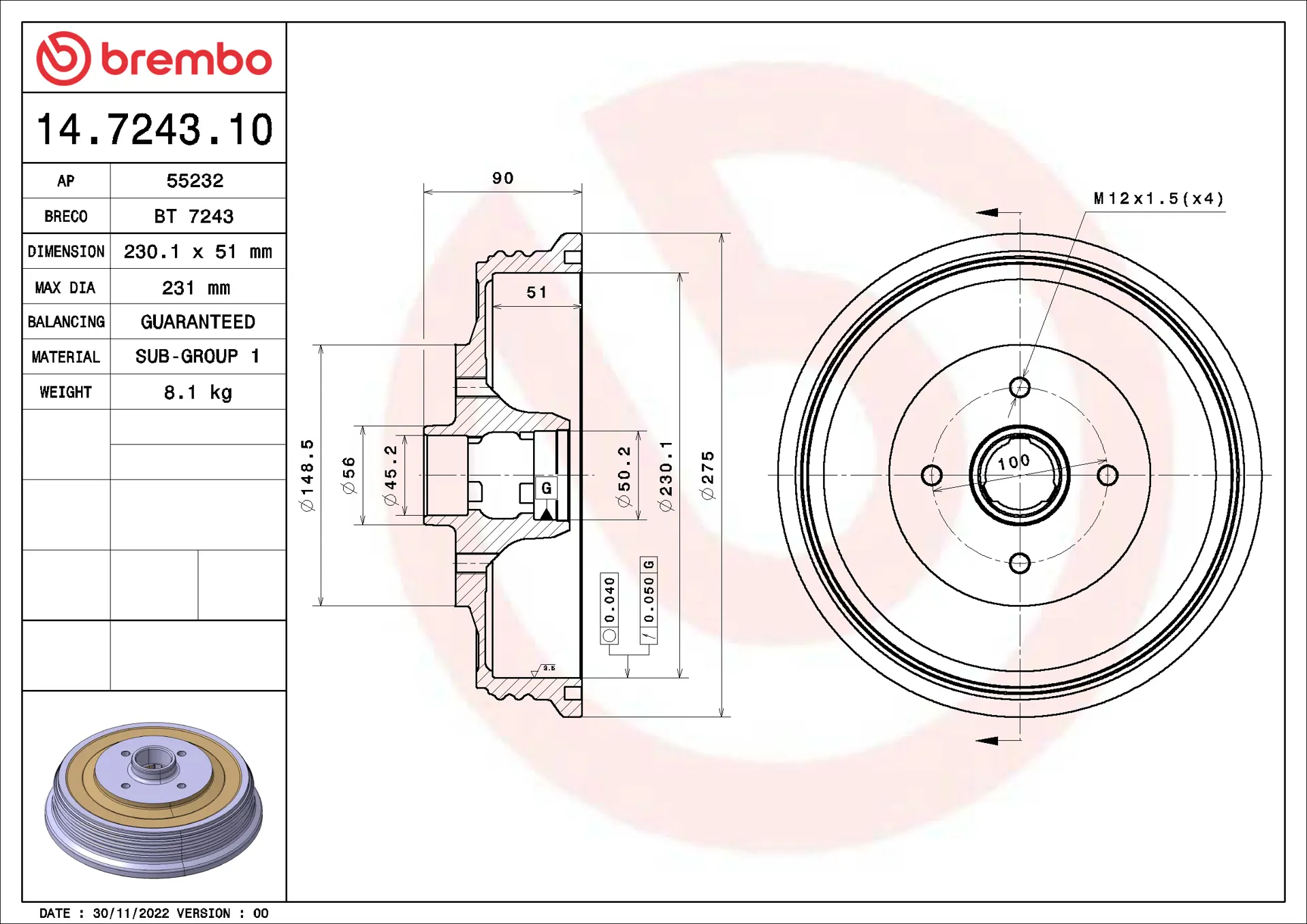

Drum technical data
Axle
Rear
Diameter (Diameter)
230.00 mm
Maximum diameter
231.00 mm
Width (A)
51.00 mm
Centring diameter (B)
45-50,3 mm
Overall height (C)
90.00 mm
Number of holes (D)
4.00
EANCode
8020584724316
Drums
OE Part number
Compatible OE codes
SEAT 6K9501615
VW 6K9501615
