Catalogue Drums 14.7747.10

14.7747.10

Drum
Compare
In the comparator
Add to favourites
My Favourites
Products compared

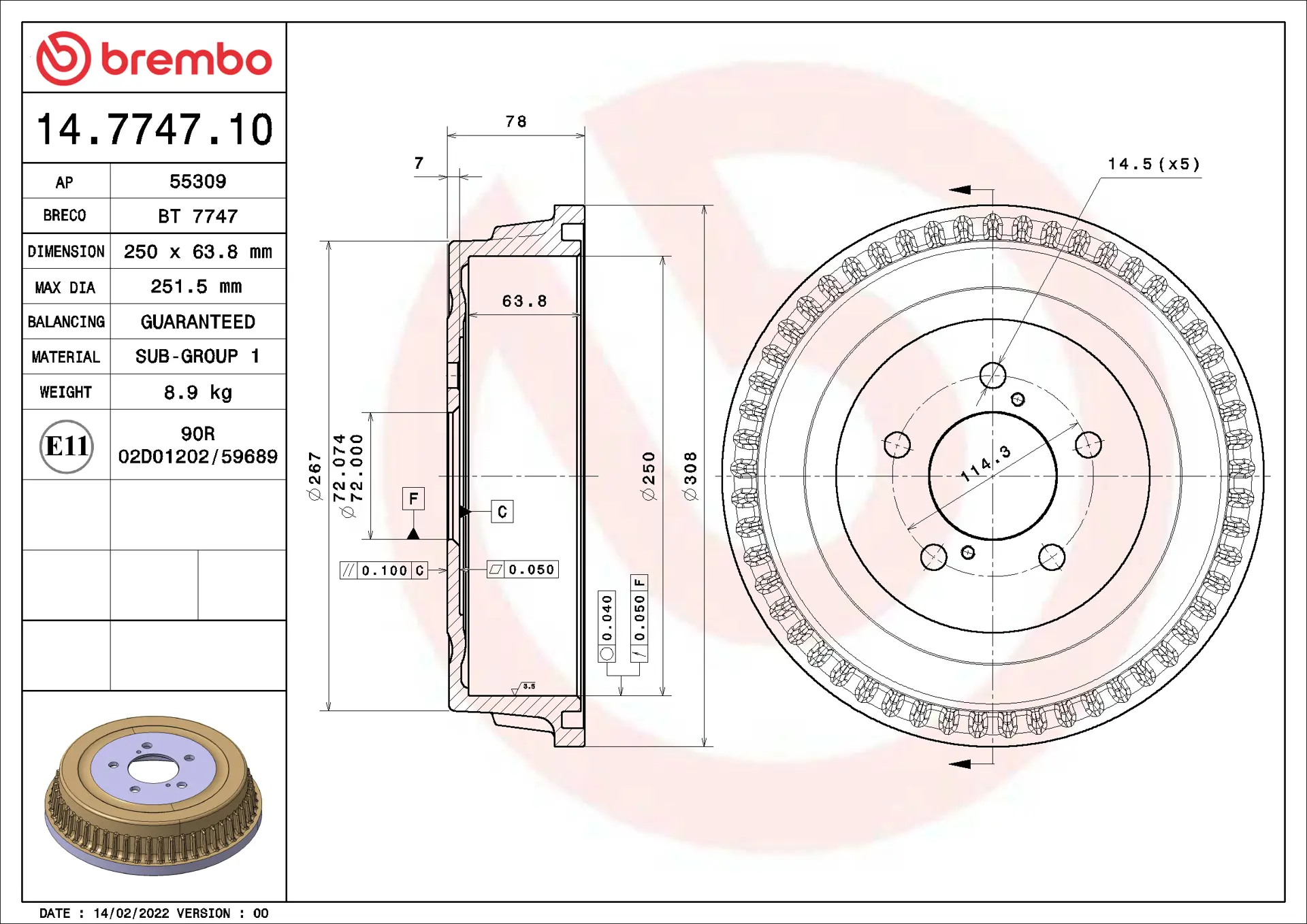

Drum technical data
Axle
Rear
Diameter (Diameter)
250.00 mm
Maximum diameter
251.50 mm
Width (A)
66.00 mm
Centring diameter (B)
72 mm
Overall height (C)
77.20 mm
Number of holes (D)
5.00
EANCode
8020584774717
Drums
Where to buy
Download data sheet
14.7747.10
14.7747.10
14.7747.10
Compatible vehicles

CHRYSLER

Model Type kW CV Year
ModelVOYAGER / GRAND VOYAGER III (GS) Type2.0 i kW98 CV133 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type2.4 AWD kW111 CV151 Year02/97 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type2.4 i kW111 CV151 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type2.5 TD kW85 CV116 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type2.5 TDiC AWD kW85 CV116 Year10/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type3.0 kW112 CV152 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type3.3 i kW116 CV158 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type3.8 i AWD kW122 CV166 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER III (GS) Type3.8 i AWD kW131 CV178 Year01/95 - 03/01

DODGE

Model Type kW CV Year
ModelCARAVAN Type2.4 i kW111 CV151 Year01/95 - 03/01
ModelCARAVAN Type2.5 TD kW85 CV116 Year01/95 - 03/01
ModelCARAVAN Type3.0 kW112 CV152 Year01/95 - 06/00
ModelCARAVAN Type3.3 i kW116 CV158 Year01/95 - 03/01
ModelCARAVAN Type3.8 i kW122 CV166 Year01/95 - 03/01
ModelCARAVAN Type3.8 i kW131 CV178 Year01/95 - 03/01
ModelCARAVAN Type3.8 i AWD kW122 CV166 Year01/95 - 03/01
ModelCARAVAN Type3.8 i AWD kW131 CV178 Year01/95 - 03/01

PLYMOUTH

Model Type kW CV Year
ModelVOYAGER / GRAND VOYAGER Type2.0 i kW98 CV133 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type2.4 i kW111 CV151 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type2.5 TD kW85 CV116 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type3.0 kW112 CV152 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type3.3 i kW116 CV158 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type3.8 i kW122 CV166 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type3.8 i kW131 CV178 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type3.8 i AWD kW122 CV166 Year01/95 - 03/01
ModelVOYAGER / GRAND VOYAGER Type3.8 i AWD kW131 CV178 Year01/95 - 03/01
OE Part number
Compatible OE codes
CHRYSLER 4683433
CHRYSLER 4721263
CHRYSLER 4877263
CHRYSLER 4877433
DODGE 4683433
PLYMOUTH 4683433
