Catalogue Drums 14.9383.10

14.9383.10

Drum
Compare
In the comparator
Add to favourites
My Favourites
Products compared

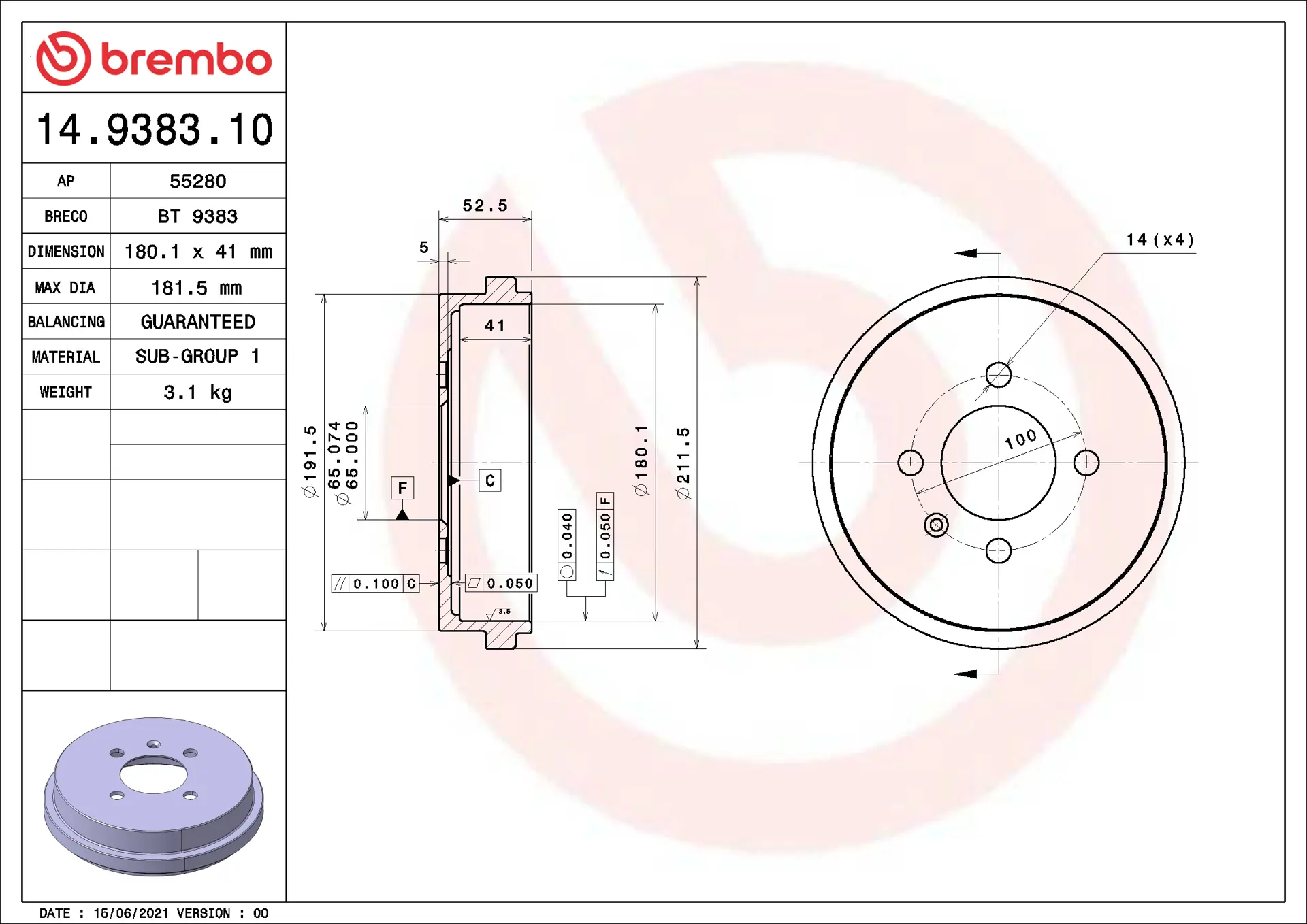

Drum technical data
Axle
Rear
Diameter (Diameter)
180.00 mm
Maximum diameter
181.50 mm
Width (A)
41.00 mm
Centring diameter (B)
65 mm
Overall height (C)
52.50 mm
Number of holes (D)
4.00
EANCode
8020584938317
Drums
Where to buy
Download data sheet
14.9383.10
14.9383.10
14.9383.10
Compatible vehicles

SEAT

Model Type kW CV Year
ModelAROSA (6H) Type1.0 kW37 CV50 Year05/97 - 06/04
ModelAROSA (6H) Type1.0 kW37 CV50 Year10/98 - 01/01
ModelAROSA (6H) Type1.4 kW44 CV60 Year05/97 - 06/04
ModelAROSA (6H) Type1.4 16V kW74 CV100 Year01/00 - 06/04
ModelAROSA (6H) Type1.4 TDI kW55 CV75 Year01/00 - 06/04
ModelAROSA (6H) Type1.7 SDI kW44 CV60 Year08/97 - 06/04

VW

Model Type kW CV Year
ModelLUPO (6X1, 6E1) Type1.0 kW37 CV50 Year09/98 - 07/05
ModelLUPO (6X1, 6E1) Type1.0 kW37 CV50 Year10/98 - 05/00
ModelLUPO (6X1, 6E1) Type1.4 kW44 CV60 Year10/00 - 07/05
ModelLUPO (6X1, 6E1) Type1.4 16V kW55 CV75 Year09/98 - 07/05
ModelLUPO (6X1, 6E1) Type1.4 TDI kW55 CV75 Year01/99 - 07/05
ModelLUPO (6X1, 6E1) Type1.7 SDI kW44 CV60 Year09/98 - 07/05
OE Part number
Compatible OE codes
SEAT 6X0609617
VW 6X0609617
