14.A691.10

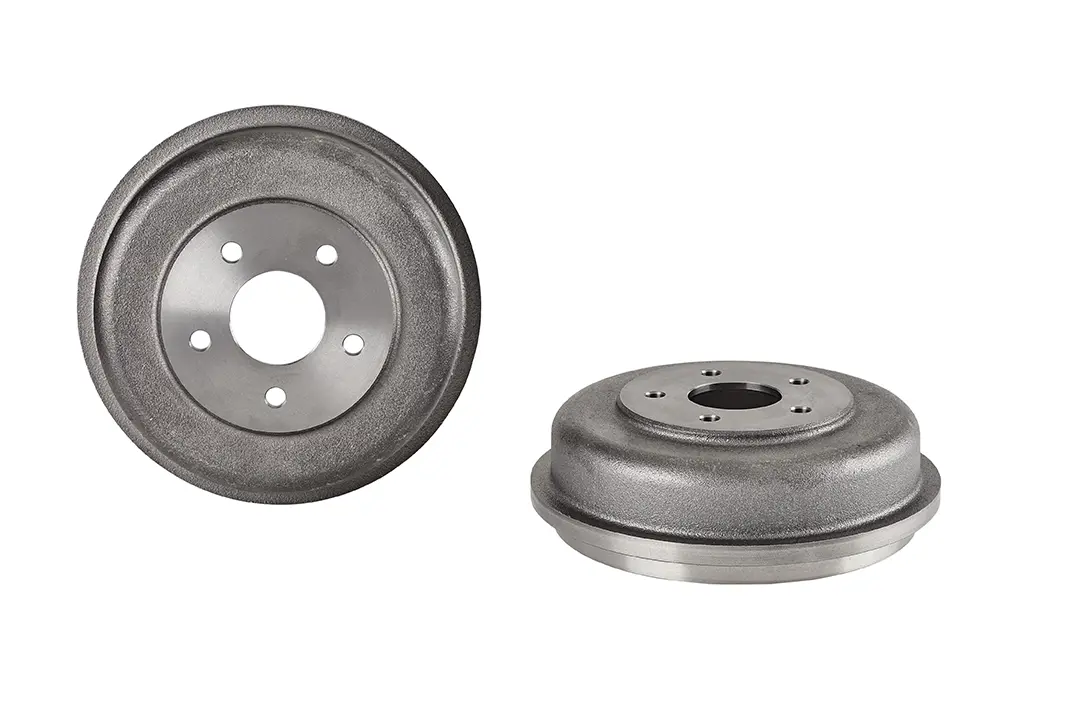

Drum

In the comparator

Add to favourites

Products compared

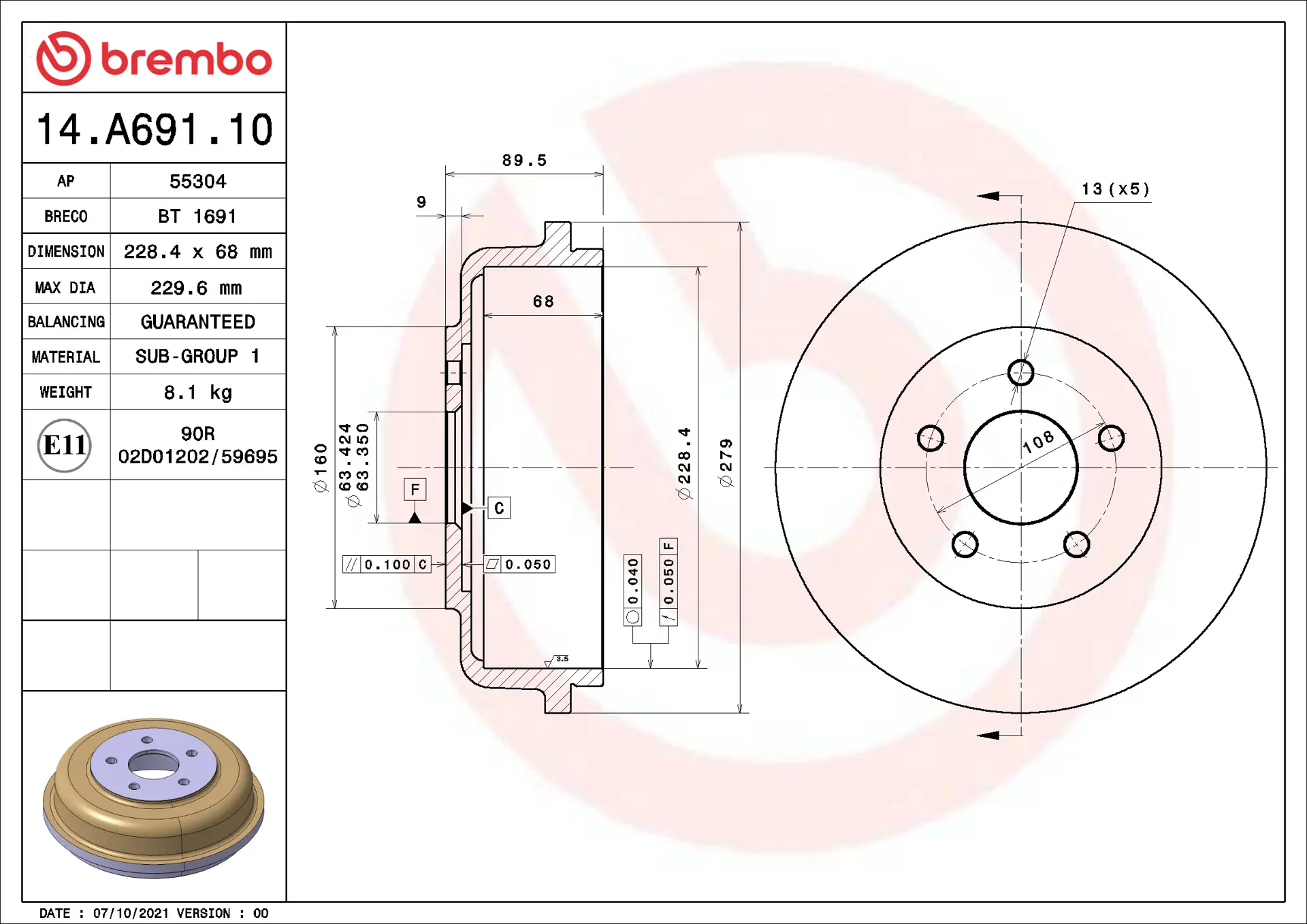

Drum technical data

Axle

Rear

Diameter (Diameter)

228.00 mm

Maximum diameter

229.60 mm

Width (A)

68.00 mm

Centring diameter (B)

63,4 mm

Overall height (C)

89.50 mm

Number of holes (D)

5.00

EANCode

8020584017135

Drums

Download data sheet

14.A691.10

14.A691.10

14.A691.10

Compatible vehicles

FORD

ModelTOURNEO CONNECT Type1.8 16V Kw85 Year06/02 - 12/13

ModelTOURNEO CONNECT Type1.8 TDCi Kw66 Year06/02 - 12/13

ModelTOURNEO CONNECT Type1.8 TDCi Kw81 Year08/06 - 12/13

ModelTOURNEO CONNECT Type1.8 TDCi /TDDi /DI Kw55 Year06/02 - 12/13

ModelTRANSIT CONNECT (P65_, P70_, P80_) Type1.8 16V Kw85 Year06/02 - 12/13

ModelTRANSIT CONNECT (P65_, P70_, P80_) Type1.8 16V LPG Kw85 Year06/02 - 12/13

ModelTRANSIT CONNECT (P65_, P70_, P80_) Type1.8 Di Kw55 Year06/02 - 12/13

ModelTRANSIT CONNECT (P65_, P70_, P80_) Type1.8 TDCi Kw66 Year06/02 - 12/13

ModelTRANSIT CONNECT (P65_, P70_, P80_) Type1.8 TDCi Kw81 Year08/06 - 12/13

OE Part number

Compatible OE codes

FORD 1334975

FORD 1361302

FORD 1361304

FORD 4367102

FORD 4367103

FORD 4455981

FORD 4467600
