Essential Line

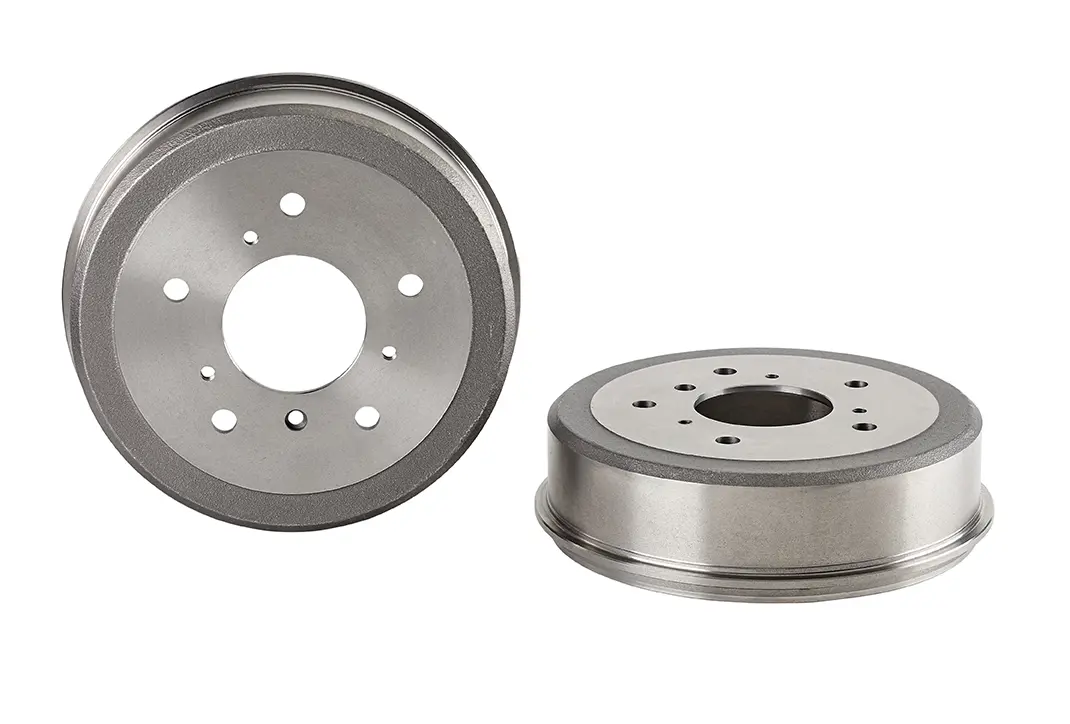

Drum 14.A705.10

Name: Drum 14.A705.10
Brand: Brembo
SKU: 14.A705.10

No longer available

The 14.A705.10 drum is synonymous with reliability

Brembo has developed several design solutions for drum brakes which combine multiple materials to reduce the overall weight. The most popular range of lamellar graphite cast iron drums is supplemented by cast iron drums with a steel sprocket flange and aluminium drums, whereby only the inner part of the drum on which the shoes operate are made of lamellar cast iron, namely the brake band. Additionally drums with built-in bearing kit and hub are added to this range.

OE-equivalent

Brembo quality

Safety

Durability

Find a retailer or mechanic

Use the map to find Brembo products near you.

Go to the map

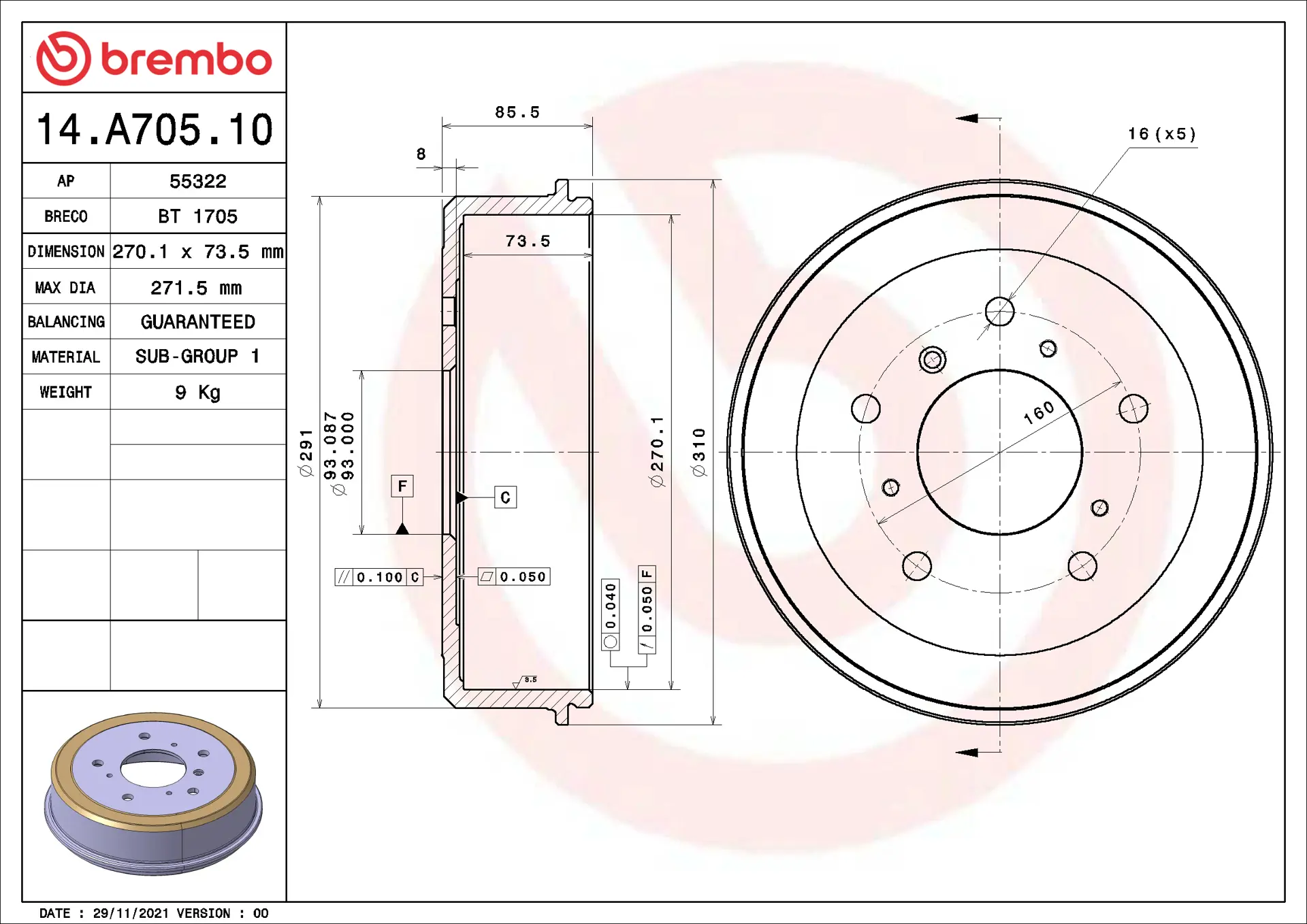

Technical specifications

Diameter

270mm

Width

73,5mm

Height

85,5mm

Number of holes

Centering

93mm

Max diameter

271,5mm

Axle

Rear

EAN code

8020584017685
