Catalogue Drums 14.C009.10

14.C009.10

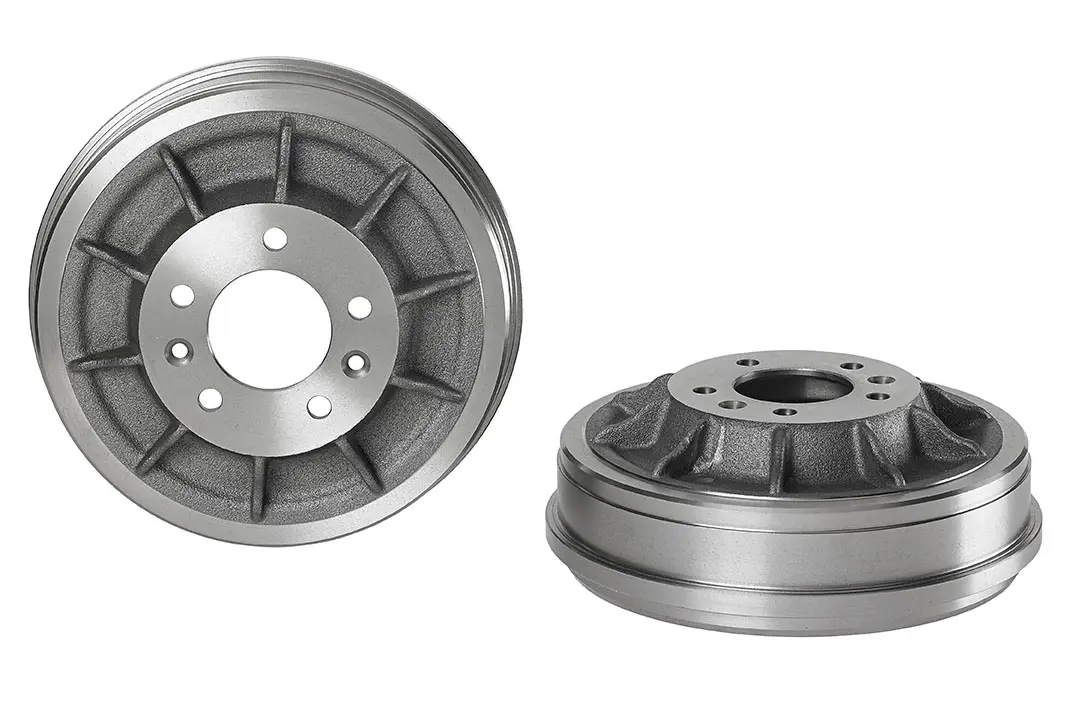

Drum
Compare
In the comparator
Add to favourites
My Favourites
Products compared

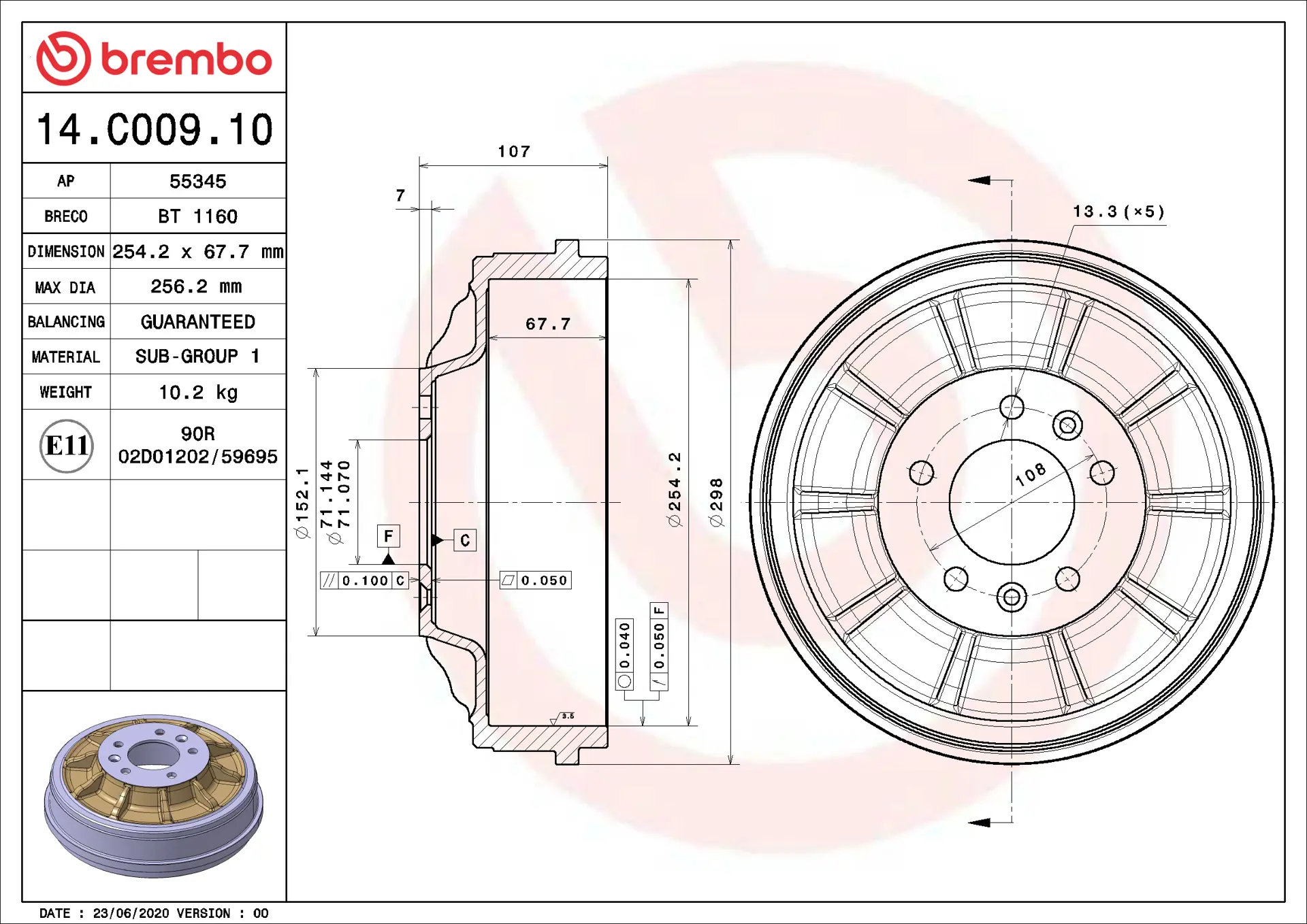

Drum technical data
Axle
Rear
Diameter (Diameter)
254.00 mm
Maximum diameter
256.20 mm
Width (A)
67.50 mm
Centring diameter (B)
71 mm
Overall height (C)
107.00 mm
Number of holes (D)
5.00
EANCode
8020584219720
Drums
Where to buy
Download data sheet
14.C009.10
14.C009.10
14.C009.10
Compatible vehicles

CITROËN

Model Type Kw CV Year
ModelJUMPY (VF7) Type1.6 HDi 90 16V Kw66 CV90 Year01/07
ModelJUMPY (VF7) Type1.6 HDi 90 8V Kw66 CV90 Year01/07
ModelJUMPY (VF7) Type2.0 HDi 120 Kw88 CV120 Year01/07
ModelJUMPY (VF7) Type2.0 HDi 140 Kw100 CV136 Year01/07
ModelJUMPY (VF7) Type2.0 i Kw103 CV140 Year01/07
ModelJUMPY Box Type1.6 HDi 90 16V Kw66 CV90 Year01/07
ModelJUMPY Box Type1.6 HDi 90 8V Kw66 CV90 Year01/07
ModelJUMPY Box Type2.0 HDi 120 Kw88 CV120 Year01/07
ModelJUMPY Box Type2.0 HDi 140 Kw100 CV136 Year01/07
ModelJUMPY Box Type2.0 i Kw103 CV140 Year01/07

FIAT

Model Type Kw CV Year
ModelSCUDO (270_, 272_) Type1.6 D Multijet Kw66 CV90 Year01/07
ModelSCUDO (270_, 272_) Type1.6 D Multijet Kw66 CV90 Year02/11
ModelSCUDO (270_, 272_) Type2.0 D Multijet Kw88 CV120 Year01/07
ModelSCUDO (270_, 272_) Type2.0 D Multijet Kw100 CV136 Year01/07
ModelSCUDO (270_, 272_) Type2.0 D Multijet Kw94 CV128 Year04/11
ModelSCUDO (270_, 272_) Type2.0 D Multijet Kw120 CV163 Year07/10
ModelSCUDO Box (270_, 272_) Type1.6 D Multijet Kw66 CV90 Year01/07
ModelSCUDO Box (270_, 272_) Type1.6 D Multijet Kw66 CV90 Year02/11
ModelSCUDO Box (270_, 272_) Type2.0 D Multijet Kw88 CV120 Year01/07
ModelSCUDO Box (270_, 272_) Type2.0 D Multijet Kw100 CV136 Year01/07
ModelSCUDO Box (270_, 272_) Type2.0 D Multijet Kw94 CV128 Year05/11
ModelSCUDO Box (270_, 272_) Type2.0 D Multijet Kw120 CV163 Year07/10
ModelSCUDO Platform/Chassis (270_, 272_) Type1.6 D Multijet Kw66 CV90 Year01/07
ModelSCUDO Platform/Chassis (270_, 272_) Type2.0 D Multijet Kw88 CV120 Year01/07
ModelSCUDO Platform/Chassis (270_, 272_) Type2.0 D Multijet Kw100 CV136 Year01/07
ModelSCUDO Platform/Chassis (270_, 272_) Type2.0 D Multijet Kw94 CV128 Year05/11

PEUGEOT

Model Type Kw CV Year
ModelEXPERT Box (VF3A_, VF3U_, VF3X_) Type1.6 HDi 90 16V Kw66 CV90 Year01/07
ModelEXPERT Box (VF3A_, VF3U_, VF3X_) Type1.6 HDi 90 8V Kw66 CV90 Year01/07
ModelEXPERT Platform/Chassis Type1.6 HDi 90 16V Kw66 CV90 Year01/07
ModelEXPERT Platform/Chassis Type1.6 HDi 90 8V Kw66 CV90 Year01/07
ModelEXPERT Tepee (VF3X_) Type1.6 HDi 90 16V Kw66 CV90 Year01/07 - 03/16
ModelEXPERT Tepee (VF3X_) Type1.6 HDi 90 8V Kw66 CV90 Year01/07 - 03/16
OE Part number
Compatible OE codes
CITROËN 424751
CITROËN 424756
FIAT 1400178980
FIAT 1401417180
PEUGEOT 424751
PEUGEOT 424756
