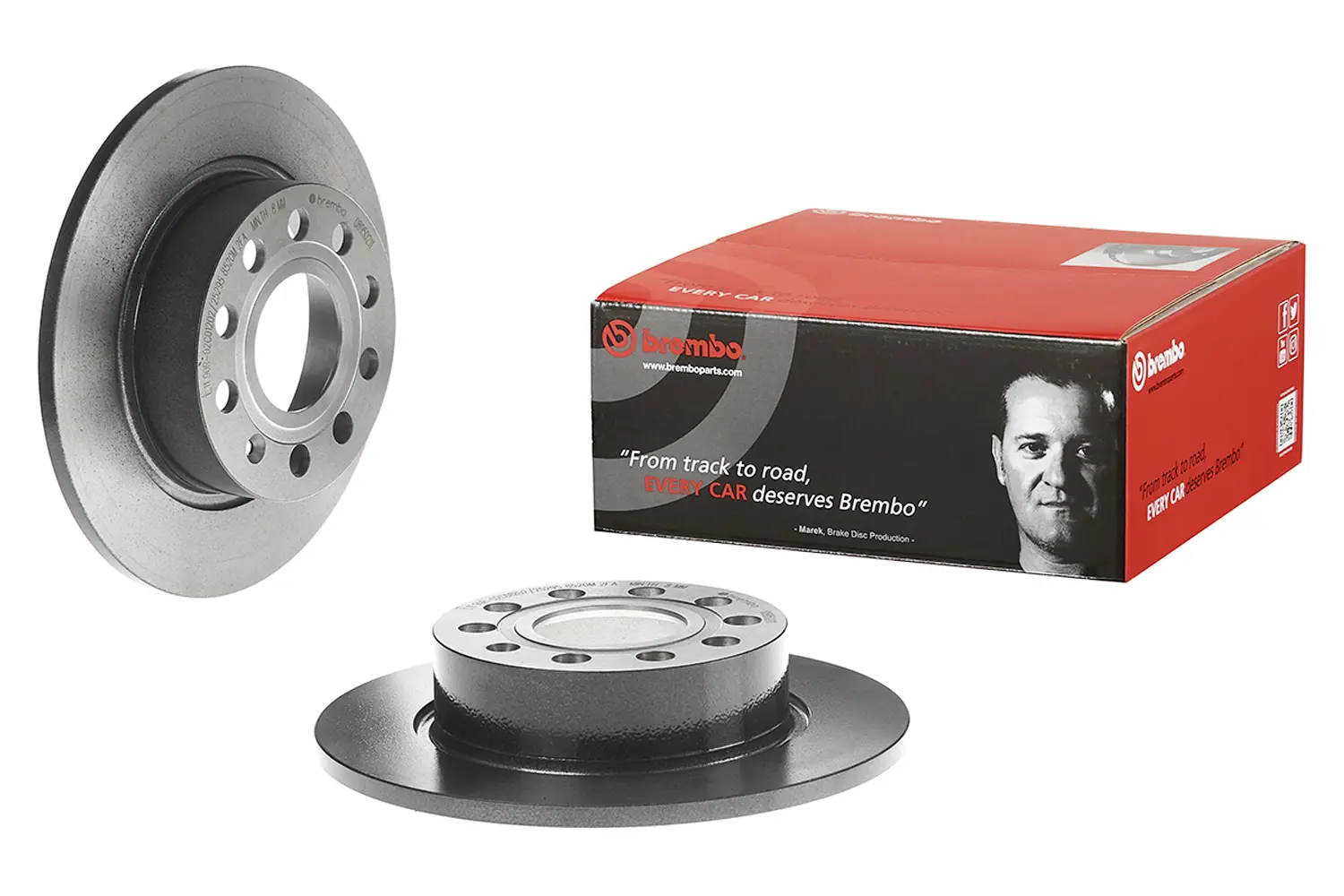

08.9502.11

Disc

Adaugă la preferate

Preferatele mele

Produse comparate

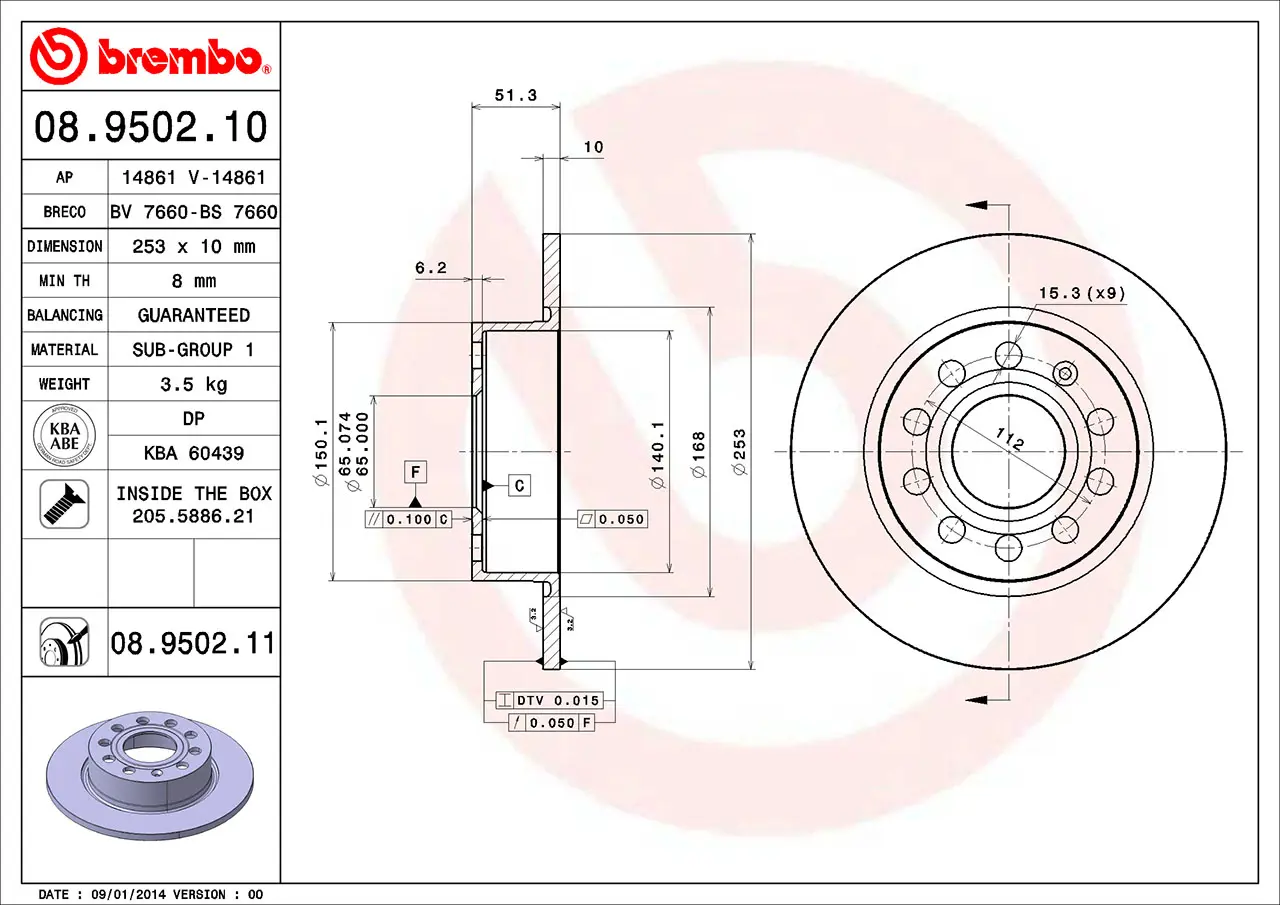

Specificații tehnice disc

Osie

Posterioară

Diametru

253 mm

Înălțime totală (A)

51,3 mm

Diametru de centrare (B)

65 mm

Număr orificii (C)

5

Grosime (TH)

10 mm

Grosime min.

8 mm

Cuplu de strângere

120 Nm

Unităţi per cutie

2

Cod EAN

8020584024256

Discuri

Coduri mărci

Brembo 08.9502.11

AP 14861 V

Breco BV 7660

De unde se cumpără

Descărcare fișă tehnică

08.9502.11

08.9502.11

08.9502.11

Specificații tehnice

Disc cu șuruburi de fixare

Prin introducerea șurubului de fixare în cutia discului, Brembo furnizează un ajutor în plus mecanicului în situația în care șurubul original ruginește sau se uzează într-o asemenea măsură încât să împiedice reutilizarea sau să o facă periculoasă.

Disc UV

Procesul de vopsire UV garantează o rezistență superioară la coroziune și o protecție completă a discului.

Află mai multe

Autovehicule compatibile

AUDI

ModelA3 (8P1) Tip1.2 TSI kW77 CV105 An04.10 - 08.12

ModelA3 (8P1) Tip1.4 TFSI kW92 CV125 An09.07 - 08.12

ModelA3 (8P1) Tip1.6 kW75 CV102 An05.03 - 08.12

ModelA3 (8P1) Tip1.6 FSI kW85 CV115 An08.03 - 09.07

ModelA3 (8P1) Tip1.6 TDI kW66 CV90 An05.09 - 08.12

ModelA3 (8P1) Tip1.6 TDI kW77 CV105 An05.09 - 08.12

ModelA3 (8P1) Tip1.8 TFSI kW118 CV160 An11.06 - 08.12

ModelA3 (8P1) Tip1.8 TFSI quattro kW118 CV160 An07.08 - 08.12

ModelA3 (8P1) Tip1.9 TDI kW77 CV105 An05.03 - 05.10

ModelA3 (8P1) Tip2.0 FSI kW110 CV150 An05.03 - 06.08

ModelA3 (8P1) Tip2.0 TDI kW100 CV136 An05.03 - 08.12

ModelA3 (8P1) Tip2.0 TDI kW103 CV140 An06.05 - 06.08

ModelA3 (8P1) Tip2.0 TDI kW125 CV170 An03.06 - 08.12

ModelA3 (8P1) Tip2.0 TDI kW120 CV163 An06.06 - 06.08

ModelA3 (8P1) Tip2.0 TDI 16V kW103 CV140 An05.03 - 08.12

ModelA3 (8P1) Tip2.0 TFSI kW147 CV200 An09.04 - 08.12

ModelA3 (8P1) Tip2.0 TFSI quattro kW147 CV200 An09.04 - 08.12

ModelA3 Convertible (8P7) Tip1.2 TFSI kW77 CV105 An03.10 - 05.13

ModelA3 Convertible (8P7) Tip1.4 TFSI kW92 CV125 An02.11 - 05.13

ModelA3 Convertible (8P7) Tip1.6 kW75 CV102 An09.08 - 05.10

ModelA3 Convertible (8P7) Tip1.6 TDI kW77 CV105 An05.09 - 05.13

ModelA3 Convertible (8P7) Tip1.8 TFSI kW118 CV160 An04.08 - 05.13

ModelA3 Convertible (8P7) Tip1.9 TDI kW77 CV105 An04.08 - 10.09

ModelA3 Convertible (8P7) Tip2.0 TDI kW103 CV140 An04.08 - 05.13

ModelA3 Convertible (8P7) Tip2.0 TFSI kW147 CV200 An04.08 - 05.13

ModelA3 Sportback (8PA) Tip1.2 TSI kW77 CV105 An04.10 - 03.13

ModelA3 Sportback (8PA) Tip1.4 TFSI kW92 CV125 An09.07 - 03.13

ModelA3 Sportback (8PA) Tip1.6 kW75 CV102 An09.04 - 03.13

ModelA3 Sportback (8PA) Tip1.6 FSI kW85 CV115 An09.04 - 09.07

ModelA3 Sportback (8PA) Tip1.6 TDI kW66 CV90 An05.09 - 03.13

ModelA3 Sportback (8PA) Tip1.6 TDI kW77 CV105 An05.09 - 03.13

ModelA3 Sportback (8PA) Tip1.8 TFSI kW118 CV160 An11.06 - 03.13

ModelA3 Sportback (8PA) Tip1.8 TFSI quattro kW118 CV160 An07.08 - 03.13

ModelA3 Sportback (8PA) Tip1.9 TDI kW77 CV105 An09.04 - 05.10

ModelA3 Sportback (8PA) Tip2.0 FSI kW110 CV150 An09.04 - 06.08

ModelA3 Sportback (8PA) Tip2.0 TDI kW100 CV136 An09.04 - 03.13

ModelA3 Sportback (8PA) Tip2.0 TDI kW103 CV140 An06.05 - 06.08

ModelA3 Sportback (8PA) Tip2.0 TDI kW125 CV170 An03.06 - 03.13

ModelA3 Sportback (8PA) Tip2.0 TDI kW120 CV163 An06.06 - 06.08

ModelA3 Sportback (8PA) Tip2.0 TDI 16V kW103 CV140 An09.04 - 03.13

ModelA3 Sportback (8PA) Tip2.0 TFSI kW147 CV200 An09.04 - 03.13

SEAT

ModelALTEA (5P1) Tip1.2 TSI kW77 CV105 An04.10

ModelALTEA (5P1) Tip1.4 16V kW63 CV86 An05.06

ModelALTEA (5P1) Tip1.4 TSI kW92 CV125 An11.07

ModelALTEA (5P1) Tip1.6 kW75 CV102 An03.04

ModelALTEA (5P1) Tip1.6 LPG kW75 CV102 An09.09

ModelALTEA (5P1) Tip1.6 TDI kW77 CV105 An10.09

ModelALTEA (5P1) Tip1.6 TDI kW66 CV90 An11.10

ModelALTEA (5P1) Tip1.8 TFSI kW118 CV160 An01.07

ModelALTEA (5P1) Tip1.9 TDI kW77 CV105 An04.04

ModelALTEA (5P1) Tip1.9 TDI kW66 CV90 An08.09

ModelALTEA (5P1) Tip2.0 FSI kW110 CV150 An05.04 - 03.09

ModelALTEA (5P1) Tip2.0 TDI kW100 CV136 An03.04 - 05.09

ModelALTEA (5P1) Tip2.0 TDI kW103 CV140 An11.05

ModelALTEA (5P1) Tip2.0 TDI 16V kW103 CV140 An03.04

ModelALTEA XL (5P5, 5P8) Tip1.2 TSI kW77 CV105 An04.10

ModelALTEA XL (5P5, 5P8) Tip1.4 16V kW63 CV86 An10.06

ModelALTEA XL (5P5, 5P8) Tip1.4 TSI kW92 CV125 An11.07

ModelALTEA XL (5P5, 5P8) Tip1.6 kW75 CV102 An10.06

ModelALTEA XL (5P5, 5P8) Tip1.6 LPG kW75 CV102 An09.09

ModelALTEA XL (5P5, 5P8) Tip1.6 TDI kW77 CV105 An10.09

ModelALTEA XL (5P5, 5P8) Tip1.6 TDI kW66 CV90 An11.10

ModelALTEA XL (5P5, 5P8) Tip1.8 TFSI kW118 CV160 An01.07

ModelALTEA XL (5P5, 5P8) Tip1.9 TDI kW77 CV105 An10.06

ModelALTEA XL (5P5, 5P8) Tip1.9 TDI kW66 CV90 An08.09

ModelALTEA XL (5P5, 5P8) Tip1.9 TDI 4x4 kW77 CV105 An06.09 - 12.10

ModelALTEA XL (5P5, 5P8) Tip2.0 FSI kW110 CV150 An10.06 - 03.09

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI kW103 CV140 An10.06

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI 16V kW103 CV140 An10.06

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI 16V 4x4 kW103 CV140 An10.10

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI 4x4 kW103 CV140 An06.07

ModelLEON (1P1) Tip1.2 TSI kW77 CV105 An02.10 - 12.12

ModelLEON (1P1) Tip1.4 16V kW63 CV86 An06.06 - 12.12

ModelLEON (1P1) Tip1.4 TSI kW92 CV125 An11.07 - 12.12

ModelLEON (1P1) Tip1.6 kW75 CV102 An07.05 - 12.12

ModelLEON (1P1) Tip1.6 LPG kW75 CV102 An12.09 - 12.12

ModelLEON (1P1) Tip1.6 TDI kW77 CV105 An02.10 - 12.12

ModelLEON (1P1) Tip1.6 TDI kW66 CV90 An11.10 - 12.12

ModelLEON (1P1) Tip1.8 TSI kW118 CV160 An06.07 - 12.12

ModelLEON (1P1) Tip1.9 TDI kW77 CV105 An07.05 - 12.10

ModelLEON (1P1) Tip1.9 TDI kW66 CV90 An06.07 - 12.10

ModelLEON (1P1) Tip2.0 Cupra R kW195 CV265 An09.09 - 12.12

ModelLEON (1P1) Tip2.0 FSI kW110 CV150 An07.05 - 05.10

ModelLEON (1P1) Tip2.0 TDI kW100 CV136 An07.05 - 05.10

ModelLEON (1P1) Tip2.0 TDI kW103 CV140 An10.05 - 10.10

ModelLEON (1P1) Tip2.0 TDI kW125 CV170 An05.06 - 12.12

ModelLEON (1P1) Tip2.0 TDI 16V kW103 CV140 An07.05 - 12.12

ModelLEON (1P1) Tip2.0 TFSI kW147 CV200 An05.05 - 03.09

ModelLEON (1P1) Tip2.0 TFSI kW136 CV185 An09.05 - 05.06

ModelLEON (5F1) Tip1.0 TSI kW85 CV115 An05.15

ModelLEON (5F1) Tip1.2 TSI kW63 CV86 An12.12

ModelLEON (5F1) Tip1.2 TSI kW77 CV105 An01.13

ModelLEON (5F1) Tip1.2 TSI kW81 CV110 An04.14

ModelLEON (5F1) Tip1.4 TGI kW81 CV110 An02.13

ModelLEON (5F1) Tip1.4 TSI kW103 CV140 An09.12

ModelLEON (5F1) Tip1.4 TSI kW90 CV122 An11.12

ModelLEON (5F1) Tip1.4 TSI kW92 CV125 An05.14

ModelLEON (5F1) Tip1.4 TSI kW110 CV150 An05.14

ModelLEON (5F1) Tip1.6 TDI kW66 CV90 An11.12

ModelLEON (5F1) Tip1.6 TDI kW77 CV105 An11.12

ModelLEON (5F1) Tip1.6 TDI kW81 CV110 An09.13

ModelLEON (5F1) Tip1.6 TDI kW85 CV115 An11.16

ModelLEON (5F1) Tip1.8 TSI kW132 CV180 An02.13

ModelLEON (5F1) Tip2.0 TDI kW135 CV184 An09.12

ModelLEON (5F1) Tip2.0 TDI kW110 CV150 An10.12

ModelLEON (5F1) Tip2.0 TDI kW81 CV110 An05.13

ModelLEON (5F1) Tip2.0 TDI kW105 CV143 An05.13

ModelLEON SC (5F5) Tip1.0 TSI kW85 CV115 An05.15 - 08.18

ModelLEON SC (5F5) Tip1.2 TSI kW63 CV86 An01.13 - 08.18

ModelLEON SC (5F5) Tip1.2 TSI kW77 CV105 An02.13 - 04.14

ModelLEON SC (5F5) Tip1.2 TSI kW81 CV110 An05.14 - 08.18

ModelLEON SC (5F5) Tip1.4 TSI kW90 CV122 An02.13 - 06.15

ModelLEON SC (5F5) Tip1.4 TSI kW103 CV140 An02.13 - 11.16

ModelLEON SC (5F5) Tip1.4 TSI kW92 CV125 An05.14 - 08.18

ModelLEON SC (5F5) Tip1.4 TSI kW110 CV150 An05.14 - 08.18

ModelLEON SC (5F5) Tip1.6 TDI kW66 CV90 An02.13 - 08.18

ModelLEON SC (5F5) Tip1.6 TDI kW77 CV105 An02.13 - 08.18

ModelLEON SC (5F5) Tip1.6 TDI kW81 CV110 An09.13 - 11.16

ModelLEON SC (5F5) Tip1.6 TDI kW85 CV115 An11.16 - 08.18

ModelLEON SC (5F5) Tip1.8 TSI kW132 CV180 An02.13 - 08.18

ModelLEON SC (5F5) Tip2.0 TDI kW110 CV150 An02.13

ModelLEON SC (5F5) Tip2.0 TDI kW135 CV184 An03.13

ModelLEON SC (5F5) Tip2.0 TDI kW105 CV143 An05.13

ModelLEON ST (5F8) Tip1.0 TSI kW85 CV115 An05.15

ModelLEON ST (5F8) Tip1.2 TSI kW77 CV105 An08.13

ModelLEON ST (5F8) Tip1.2 TSI kW63 CV86 An11.13

ModelLEON ST (5F8) Tip1.2 TSI kW81 CV110 An05.14

ModelLEON ST (5F8) Tip1.4 TGI kW81 CV110 An10.13

ModelLEON ST (5F8) Tip1.4 TSI kW90 CV122 An09.12

ModelLEON ST (5F8) Tip1.4 TSI kW103 CV140 An10.13

ModelLEON ST (5F8) Tip1.4 TSI kW92 CV125 An05.14

ModelLEON ST (5F8) Tip1.4 TSI kW110 CV150 An05.14

ModelLEON ST (5F8) Tip1.6 TDI kW81 CV110 An09.13

ModelLEON ST (5F8) Tip1.6 TDI kW77 CV105 An10.13

ModelLEON ST (5F8) Tip1.6 TDI kW66 CV90 An11.13

ModelLEON ST (5F8) Tip1.6 TDI kW85 CV115 An11.16

ModelLEON ST (5F8) Tip1.6 TDI 4Drive kW77 CV105 An04.14

ModelLEON ST (5F8) Tip1.6 TDI 4Drive kW81 CV110 An11.14

ModelLEON ST (5F8) Tip1.8 TSI kW132 CV180 An10.13

ModelLEON ST (5F8) Tip1.8 TSI 4Drive kW132 CV180 An11.14

ModelLEON ST (5F8) Tip2.0 TDI kW135 CV184 An08.13

ModelLEON ST (5F8) Tip2.0 TDI kW105 CV143 An10.13

ModelLEON ST (5F8) Tip2.0 TDI kW110 CV150 An10.13

ModelLEON ST (5F8) Tip2.0 TDI kW81 CV110 An11.13

ModelLEON ST (5F8) Tip2.0 TDI 4Drive kW110 CV150 An04.14

ModelLEON ST (5F8) Tip2.0 TDI 4Drive kW135 CV184 An11.14

ModelTOLEDO III (5P2) Tip1.4 16V kW63 CV86 An05.06 - 05.09

ModelTOLEDO III (5P2) Tip1.4 TSI kW92 CV125 An11.07 - 05.09

ModelTOLEDO III (5P2) Tip1.6 kW75 CV102 An10.04 - 05.09

ModelTOLEDO III (5P2) Tip1.8 TFSI kW118 CV160 An01.07 - 05.09

ModelTOLEDO III (5P2) Tip1.9 TDI kW77 CV105 An10.04 - 05.09

ModelTOLEDO III (5P2) Tip2.0 FSI kW110 CV150 An10.04 - 05.09

ModelTOLEDO III (5P2) Tip2.0 TDI kW100 CV136 An09.04 - 05.09

ModelTOLEDO III (5P2) Tip2.0 TDI kW103 CV140 An11.05 - 05.09

ModelTOLEDO III (5P2) Tip2.0 TDI kW125 CV170 An01.06 - 05.09

ModelTOLEDO III (5P2) Tip2.0 TDI 16V kW103 CV140 An04.04 - 05.09

ModelTOLEDO III (5P2) Tip2.0 TFSI kW147 CV200 An11.05 - 05.09

SKODA

ModelOCTAVIA III (1Z3) Tip1.2 TSI kW77 CV105 An02.10 - 06.13

ModelOCTAVIA III (1Z3) Tip1.4 kW55 CV75 An05.04 - 05.06

ModelOCTAVIA III (1Z3) Tip1.4 kW59 CV80 An06.04 - 04.13

ModelOCTAVIA III (1Z3) Tip1.4 TSI kW90 CV122 An11.08 - 06.13

ModelOCTAVIA III (1Z3) Tip1.6 kW75 CV102 An06.04 - 06.13

ModelOCTAVIA III (1Z3) Tip1.6 FSI kW85 CV115 An02.04 - 10.08

ModelOCTAVIA III (1Z3) Tip1.6 LPG kW75 CV102 An08.09 - 11.12

ModelOCTAVIA III (1Z3) Tip1.6 MultiFuel kW75 CV102 An01.08 - 06.13

ModelOCTAVIA III (1Z3) Tip1.6 TDI kW77 CV105 An06.09 - 04.13

ModelOCTAVIA III (1Z3) Tip1.8 TSI kW118 CV160 An06.07 - 04.13

ModelOCTAVIA III (1Z3) Tip1.8 TSI kW112 CV152 An03.09 - 06.13

ModelOCTAVIA III (1Z3) Tip1.9 TDI kW77 CV105 An06.04 - 12.10

ModelOCTAVIA III (1Z3) Tip2.0 FSI kW110 CV150 An11.04 - 10.08

ModelOCTAVIA III (1Z3) Tip2.0 TDI kW100 CV136 An02.04 - 05.10

ModelOCTAVIA III (1Z3) Tip2.0 TDI kW103 CV140 An11.05 - 05.10

ModelOCTAVIA III (1Z3) Tip2.0 TDI 16V kW103 CV140 An02.04 - 04.13

ModelOCTAVIA III Combi (1Z5) Tip1.2 TSI kW77 CV105 An02.10 - 04.13

ModelOCTAVIA III Combi (1Z5) Tip1.4 kW55 CV75 An05.04 - 05.06

ModelOCTAVIA III Combi (1Z5) Tip1.4 kW59 CV80 An05.06 - 06.13

ModelOCTAVIA III Combi (1Z5) Tip1.4 TSI kW90 CV122 An11.08 - 06.13

ModelOCTAVIA III Combi (1Z5) Tip1.6 kW75 CV102 An09.04 - 06.13

ModelOCTAVIA III Combi (1Z5) Tip1.6 FSI kW85 CV115 An02.04 - 10.08

ModelOCTAVIA III Combi (1Z5) Tip1.6 LPG kW75 CV102 An08.09 - 11.12

ModelOCTAVIA III Combi (1Z5) Tip1.6 MultiFuel kW75 CV102 An01.08 - 06.13

ModelOCTAVIA III Combi (1Z5) Tip1.6 TDI kW77 CV105 An06.09 - 04.13

ModelOCTAVIA III Combi (1Z5) Tip1.6 TDI 4x4 kW77 CV105 An06.09 - 02.13

ModelOCTAVIA III Combi (1Z5) Tip1.8 TSI kW118 CV160 An06.07 - 04.13

ModelOCTAVIA III Combi (1Z5) Tip1.8 TSI kW112 CV152 An03.09 - 06.13

ModelOCTAVIA III Combi (1Z5) Tip1.8 TSI 4x4 kW118 CV160 An11.08 - 02.13

ModelOCTAVIA III Combi (1Z5) Tip1.8 TSI 4x4 kW112 CV152 An03.09 - 02.13

ModelOCTAVIA III Combi (1Z5) Tip1.9 TDI kW77 CV105 An09.04 - 12.10

ModelOCTAVIA III Combi (1Z5) Tip1.9 TDI 4x4 kW77 CV105 An11.04 - 12.10

ModelOCTAVIA III Combi (1Z5) Tip2.0 FSI kW110 CV150 An11.04 - 10.08

ModelOCTAVIA III Combi (1Z5) Tip2.0 FSI 4x4 kW110 CV150 An11.04 - 04.09

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI kW103 CV140 An11.05 - 05.10

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI kW81 CV110 An03.10 - 06.13

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI 16V kW100 CV136 An02.04 - 05.10

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI 16V kW103 CV140 An02.04 - 05.13

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI 16V 4x4 kW103 CV140 An05.10 - 02.13

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI 4x4 kW103 CV140 An07.06 - 05.10

ModelOCTAVIA III Combi (1Z5) Tip2.0 TDI 4x4 kW81 CV110 An05.11 - 02.13

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.0 TSI kW85 CV115 An05.16

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.2 TSI kW63 CV86 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.2 TSI kW77 CV105 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.2 TSI kW81 CV110 An05.15 - 02.17

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.4 TSI kW103 CV140 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.4 TSI kW110 CV150 An08.14

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.4 TSI G-TEC kW81 CV110 An11.13

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.6 kW81 CV110 An01.14

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.6 TDI kW66 CV90 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.6 TDI kW77 CV105 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.6 TDI kW81 CV110 An05.13

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.6 TDI 4x4 kW77 CV105 An09.14

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.6 TDI 4x4 kW81 CV110 An05.15

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.8 TSI kW132 CV180 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip1.8 TSI 4x4 kW132 CV180 An09.14

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TDI kW105 CV143 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TDI kW110 CV150 An11.12

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TDI / TDI RS 4x4 kW135 CV184 An05.13

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TDI 4x4 kW110 CV150 An09.14

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TDI RS kW135 CV184 An05.13

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TSI RS kW162 CV220 An05.13

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TSI RS kW169 CV230 An05.15

ModelOCTAVIA IV (5E3, NL3, NR3) Tip2.0 TSI RS kW180 CV245 An02.17

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.0 TSI kW85 CV115 An05.16

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.2 TSI kW63 CV86 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.2 TSI kW77 CV105 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.2 TSI kW81 CV110 An05.15 - 02.17

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.4 TSI kW103 CV140 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.4 TSI kW110 CV150 An08.14

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.4 TSI G-TEC kW81 CV110 An11.13

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.6 kW81 CV110 An01.14

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.6 TDI kW66 CV90 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.6 TDI kW77 CV105 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.6 TDI kW81 CV110 An05.13

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.6 TDI 4x4 kW77 CV105 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.6 TDI 4x4 kW81 CV110 An05.15

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.8 TSI kW132 CV180 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip1.8 TSI 4x4 kW132 CV180 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TDI kW105 CV143 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TDI kW110 CV150 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TDI / TDI RS 4x4 kW135 CV184 An09.14

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TDI 4x4 kW110 CV150 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TDI RS kW135 CV184 An05.13

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TSI RS kW162 CV220 An11.12

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TSI RS kW169 CV230 An05.15

ModelOCTAVIA IV Combi (5E5, 5E6) Tip2.0 TSI RS kW180 CV245 An02.17

ModelYETI (5L) Tip1.2 TSI kW77 CV105 An09.09 - 05.15

ModelYETI (5L) Tip1.2 TSI kW81 CV110 An05.15 - 12.17

ModelYETI (5L) Tip1.4 TSI kW90 CV122 An06.10 - 05.15

ModelYETI (5L) Tip1.4 TSI kW92 CV125 An05.15 - 12.17

ModelYETI (5L) Tip1.4 TSI 4x4 kW110 CV150 An05.15 - 12.17

ModelYETI (5L) Tip1.6 kW81 CV110 An04.14 - 12.17

ModelYETI (5L) Tip1.6 TDI kW77 CV105 An11.10 - 05.15

ModelYETI (5L) Tip2.0 TDI kW81 CV110 An11.09 - 12.17

ModelYETI (5L) Tip2.0 TDI kW110 CV150 An05.15 - 12.17

ModelYETI (5L) Tip2.0 TDI 4x4 kW110 CV150 An05.15 - 12.17

VW

ModelBEETLE (5C1, 5C2) Tip1.2 TSI kW77 CV105 An07.11 - 07.19

ModelBEETLE (5C1, 5C2) Tip1.2 TSI 16V kW77 CV105 An12.14 - 07.19

ModelBEETLE (5C1, 5C2) Tip1.4 TSI kW118 CV160 An10.11 - 07.16

ModelBEETLE (5C1, 5C2) Tip1.4 TSI kW110 CV150 An12.14 - 07.19

ModelBEETLE (5C1, 5C2) Tip1.6 TDI kW77 CV105 An10.11 - 07.16

ModelBEETLE (5C1, 5C2) Tip2.0 TDI kW103 CV140 An04.11 - 07.16

ModelBEETLE (5C1, 5C2) Tip2.0 TDI kW81 CV110 An06.14 - 09.18

ModelBEETLE (5C1, 5C2) Tip2.0 TDI kW110 CV150 An07.14 - 09.18

ModelBEETLE (5C1, 5C2) Tip2.0 TSI kW147 CV200 An04.11 - 07.16

ModelBEETLE (5C1, 5C2) Tip2.0 TSI kW155 CV211 An12.12 - 07.19

ModelBEETLE (5C1, 5C2) Tip2.0 TSI kW162 CV220 An12.14 - 09.18

ModelBEETLE (5C1, 5C2) Tip2.5 kW125 CV170 An04.11 - 07.19

ModelBEETLE Convertible (5C7, 5C8) Tip1.2 TSI kW77 CV105 An12.11 - 07.19

ModelBEETLE Convertible (5C7, 5C8) Tip1.2 TSI 16V kW77 CV105 An12.14 - 07.19

ModelBEETLE Convertible (5C7, 5C8) Tip1.4 TSI kW118 CV160 An12.11 - 07.16

ModelBEETLE Convertible (5C7, 5C8) Tip1.4 TSI kW110 CV150 An12.14 - 09.18

ModelBEETLE Convertible (5C7, 5C8) Tip1.6 TDI kW77 CV105 An12.11 - 07.16

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TDI kW103 CV140 An04.12 - 07.16

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TDI kW81 CV110 An06.14 - 09.18

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TDI kW110 CV150 An09.14 - 09.18

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TSI kW147 CV200 An12.11 - 07.16

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TSI kW155 CV210 An12.12 - 07.19

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TSI kW162 CV220 An12.14 - 09.18

ModelBEETLE Convertible (5C7, 5C8) Tip2.5 kW125 CV170 An12.11 - 07.16

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.2 TSI kW63 CV86 An09.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.2 TSI kW77 CV105 An09.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.4 kW55 CV75 An03.04 - 05.06

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.4 kW59 CV80 An05.06 - 08.10

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.6 kW75 CV102 An04.04 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.6 BiFuel kW75 CV102 An05.11 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.6 TDI kW55 CV75 An08.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.6 TDI kW75 CV102 An08.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.9 TDI kW77 CV105 An04.04 - 08.10

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.9 TDI kW55 CV75 An09.05 - 08.10

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip1.9 TDI 4motion kW77 CV105 An11.08 - 08.10

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 EcoFuel kW80 CV109 An04.06 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 SDI kW51 CV70 An03.04 - 08.10

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW103 CV140 An09.07 - 08.10

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW81 CV110 An08.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW62 CV85 An11.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW125 CV170 An05.12 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 16V kW103 CV140 An11.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 16V 4motion kW103 CV140 An11.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 4motion kW81 CV110 An08.10 - 05.15

ModelCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 4motion kW62 CV85 An12.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.2 TSI kW63 CV86 An09.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.2 TSI kW77 CV105 An09.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.4 kW55 CV75 An03.04 - 05.06

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.4 kW59 CV80 An05.06 - 08.10

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.6 kW75 CV102 An04.04 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.6 BiFuel kW75 CV102 An05.11 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.6 TDI kW55 CV75 An08.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.6 TDI kW75 CV102 An08.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.9 TDI kW77 CV105 An04.04 - 08.10

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.9 TDI kW55 CV75 An09.05 - 08.10

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip1.9 TDI 4motion kW77 CV105 An05.08 - 08.10

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 EcoFuel kW80 CV109 An04.06 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 SDI kW51 CV70 An03.04 - 08.10

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI kW103 CV140 An09.07 - 08.10

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI kW81 CV110 An08.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI kW125 CV170 An05.12 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI 16V kW103 CV140 An11.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI 16V 4motion kW103 CV140 An11.10 - 05.15

ModelCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI 4motion kW81 CV110 An08.10 - 05.15

ModelEOS (1F7, 1F8) Tip1.4 TSI kW90 CV122 An11.07 - 08.15

ModelEOS (1F7, 1F8) Tip1.4 TSI kW118 CV160 An05.08 - 08.15

ModelEOS (1F7, 1F8) Tip1.6 FSI kW85 CV115 An06.06 - 05.08

ModelEOS (1F7, 1F8) Tip2.0 FSI kW110 CV150 An03.06 - 05.08

ModelEOS (1F7, 1F8) Tip2.0 TDI kW103 CV140 An06.06 - 05.08

ModelEOS (1F7, 1F8) Tip2.0 TDI kW100 CV136 An11.10 - 08.15

ModelEOS (1F7, 1F8) Tip2.0 TDI 16V kW103 CV140 An05.08 - 08.15

ModelEOS (1F7, 1F8) Tip2.0 TFSI kW147 CV200 An03.06 - 08.15

ModelEOS (1F7, 1F8) Tip2.0 TSI kW155 CV210 An11.09 - 08.15

ModelGOLF PLUS V (5M1, 521) Tip1.2 TSI kW77 CV105 An11.09 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.2 TSI kW63 CV86 An05.10 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.4 16V kW55 CV75 An01.05 - 11.06

ModelGOLF PLUS V (5M1, 521) Tip1.4 16V kW59 CV80 An05.06 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.4 FSI kW66 CV90 An07.05 - 11.06

ModelGOLF PLUS V (5M1, 521) Tip1.4 TSI kW103 CV140 An05.06 - 06.08

ModelGOLF PLUS V (5M1, 521) Tip1.4 TSI kW125 CV170 An05.06 - 06.08

ModelGOLF PLUS V (5M1, 521) Tip1.4 TSI kW90 CV122 An06.07 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.4 TSI kW118 CV160 An06.08 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.6 kW75 CV102 An05.05 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.6 BiFuel kW75 CV102 An05.09 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.6 FSI kW85 CV115 An12.04 - 05.08

ModelGOLF PLUS V (5M1, 521) Tip1.6 MultiFuel kW75 CV102 An11.07 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.6 TDI kW66 CV90 An02.09 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.6 TDI kW77 CV105 An03.09 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip1.9 TDI kW77 CV105 An01.05 - 01.09

ModelGOLF PLUS V (5M1, 521) Tip1.9 TDI kW66 CV90 An05.05 - 12.08

ModelGOLF PLUS V (5M1, 521) Tip2.0 FSI kW110 CV150 An05.05 - 06.08

ModelGOLF PLUS V (5M1, 521) Tip2.0 TDI kW96 CV131 An05.05 - 05.07

ModelGOLF PLUS V (5M1, 521) Tip2.0 TDI kW100 CV136 An05.05 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip2.0 TDI kW103 CV140 An12.05 - 05.11

ModelGOLF PLUS V (5M1, 521) Tip2.0 TDI kW81 CV110 An01.09 - 12.13

ModelGOLF PLUS V (5M1, 521) Tip2.0 TDI 16V kW103 CV140 An01.05 - 12.13

ModelGOLF V (1K1) Tip1.4 16V kW55 CV75 An10.03 - 05.06

ModelGOLF V (1K1) Tip1.4 16V kW59 CV80 An05.06 - 11.08

ModelGOLF V (1K1) Tip1.4 FSI kW66 CV90 An10.03 - 07.06

ModelGOLF V (1K1) Tip1.4 TSI kW125 CV170 An11.05 - 11.08

ModelGOLF V (1K1) Tip1.4 TSI kW103 CV140 An05.06 - 11.08

ModelGOLF V (1K1) Tip1.4 TSI kW90 CV122 An05.07 - 11.08

ModelGOLF V (1K1) Tip1.6 kW75 CV102 An01.04 - 11.08

ModelGOLF V (1K1) Tip1.6 FSI kW85 CV115 An10.03 - 07.08

ModelGOLF V (1K1) Tip1.6 MultiFuel kW75 CV102 An10.07 - 11.08

ModelGOLF V (1K1) Tip1.9 TDI kW77 CV105 An10.03 - 11.08

ModelGOLF V (1K1) Tip1.9 TDI kW66 CV90 An05.04 - 11.08

ModelGOLF V (1K1) Tip1.9 TDI 4motion kW77 CV105 An08.04 - 11.08

ModelGOLF V (1K1) Tip2.0 kW85 CV116 An01.05 - 11.08

ModelGOLF V (1K1) Tip2.0 FSI kW110 CV150 An01.04 - 11.08

ModelGOLF V (1K1) Tip2.0 FSI 4motion kW110 CV150 An08.04 - 11.08

ModelGOLF V (1K1) Tip2.0 GTI kW169 CV230 An09.06 - 12.08

ModelGOLF V (1K1) Tip2.0 SDI kW55 CV75 An01.04 - 11.08

ModelGOLF V (1K1) Tip2.0 TDI kW100 CV136 An10.03 - 11.08

ModelGOLF V (1K1) Tip2.0 TDI kW103 CV140 An12.04 - 11.08

ModelGOLF V (1K1) Tip2.0 TDI kW125 CV170 An11.05 - 11.08

ModelGOLF V (1K1) Tip2.0 TDI 16V kW103 CV140 An10.03 - 11.08

ModelGOLF V (1K1) Tip2.0 TDI 16V 4motion kW103 CV140 An08.04 - 11.08

ModelGOLF V (1K1) Tip2.0 TDI 4motion kW103 CV140 An01.07 - 11.08

ModelGOLF V Variant (1K5) Tip1.4 kW59 CV80 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip1.4 TSI kW90 CV122 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip1.4 TSI kW103 CV140 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip1.6 kW75 CV102 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip1.9 TDI kW77 CV105 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip1.9 TDI 4motion kW77 CV105 An01.08 - 07.09

ModelGOLF V Variant (1K5) Tip2.0 TDI kW100 CV136 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip2.0 TDI kW103 CV140 An06.07 - 07.09

ModelGOLF V Variant (1K5) Tip2.0 TDI 16V kW103 CV140 An06.07 - 07.09

ModelGOLF VI (5K1) Tip1.2 TSI kW77 CV105 An11.08 - 11.12

ModelGOLF VI (5K1) Tip1.2 TSI kW63 CV86 An05.10 - 11.12

ModelGOLF VI (5K1) Tip1.4 kW59 CV80 An10.08 - 11.12

ModelGOLF VI (5K1) Tip1.4 TSI kW90 CV122 An10.08 - 11.12

ModelGOLF VI (5K1) Tip1.4 TSI kW118 CV160 An10.08 - 11.12

ModelGOLF VI (5K1) Tip1.6 kW75 CV102 An10.08 - 11.12

ModelGOLF VI (5K1) Tip1.6 BiFuel kW75 CV102 An03.09 - 11.12

ModelGOLF VI (5K1) Tip1.6 MultiFuel kW75 CV102 An10.08 - 11.12

ModelGOLF VI (5K1) Tip1.6 TDI kW66 CV90 An02.09 - 11.12

ModelGOLF VI (5K1) Tip1.6 TDI kW77 CV105 An02.09 - 11.12

ModelGOLF VI (5K1) Tip2.0 TDI kW81 CV110 An10.08 - 11.12

ModelGOLF VI (5K1) Tip2.0 TDI kW100 CV136 An10.08 - 11.12

ModelGOLF VI (5K1) Tip2.0 TDI kW103 CV140 An10.08 - 05.13

ModelGOLF VI (5K1) Tip2.0 TDI kW125 CV170 An04.09 - 11.12

ModelGOLF VI (5K1) TipBlue E-Motion kW65 CV88 An12.10 - 11.13

ModelGOLF VI Convertible (517) Tip1.2 TSI kW77 CV105 An03.11 - 05.16

ModelGOLF VI Convertible (517) Tip1.2 TSI 16V kW77 CV105 An11.13 - 05.16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW118 CV160 An03.11 - 05.16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW90 CV122 An11.11 - 05.16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW92 CV125 An11.13 - 05.16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW110 CV150 An11.13 - 05.16

ModelGOLF VI Convertible (517) Tip1.6 TDI kW77 CV105 An03.11 - 05.16

ModelGOLF VI Convertible (517) Tip2.0 GTI kW155 CV211 An05.12 - 05.16

ModelGOLF VI Convertible (517) Tip2.0 R kW195 CV265 An01.13 - 05.16

ModelGOLF VI Convertible (517) Tip2.0 TDI kW103 CV140 An11.11 - 05.16

ModelGOLF VI Convertible (517) Tip2.0 TDI kW81 CV110 An11.13 - 05.16

ModelGOLF VI Convertible (517) Tip2.0 TDI kW110 CV150 An11.13 - 05.16

ModelJETTA IV (162, 163, AV3, AV2) Tip1.4 TSI kW92 CV125 An08.14

ModelJETTA IV (162, 163, AV3, AV2) Tip1.4 TSI kW110 CV150 An08.14

ModelJETTA IV (162, 163, AV3, AV2) Tip1.4 TSI Hybrid kW110 CV150 An04.11

ModelJETTA IV (162, 163, AV3, AV2) Tip1.8 TSI kW125 CV170 An07.14

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 TDI kW81 CV110 An10.10

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 TDI kW103 CV140 An02.11

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 TDI kW110 CV150 An07.14

ModelSCIROCCO III (137, 138) Tip1.4 TSI kW90 CV122 An08.08 - 11.17

ModelSCIROCCO III (137, 138) Tip1.4 TSI kW92 CV125 An11.13 - 11.17

ModelSCIROCCO III (137, 138) Tip2.0 TDI kW103 CV140 An08.08 - 11.17

ModelSCIROCCO III (137, 138) Tip2.0 TDI kW100 CV136 An11.10 - 11.17

ModelSCIROCCO III (137, 138) Tip2.0 TDI kW110 CV150 An11.13 - 11.17

Coduri OE

Coduri OE compatibile

AUDI 1K0615601AB

AUDI 1K0615601K

SEAT 1K0615601AB

SEAT 1K0615601K

SEAT 5Q0615601F

SKODA 1K0615601AB

SKODA 1K0615601K

SKODA (SVW) 5QD615601

VW 1K0615601AB

VW 1K0615601K

VW 5C0615601

VW 5C0615601A
