Catalog Discuri 09.4765.14

09.4765.14

Disc
Compară
În comparator
Adaugă la preferate
Preferatele mele
Produse comparate
Specificații tehnice disc
Osie
Anterioară
Diametru
239 mm
Înălțime totală (A)
38,7 mm
Diametru de centrare (B)
65 mm
Număr orificii (C)
4
Grosime (TH)
20 mm
Grosime min.
18 mm
Cuplu de strângere
120 Nm
Unităţi per cutie
2
Cod EAN
8020584012475
Discuri
Coduri mărci
Brembo 09.4765.14
AP 20024 E
Breco BS 7901
De unde se cumpără

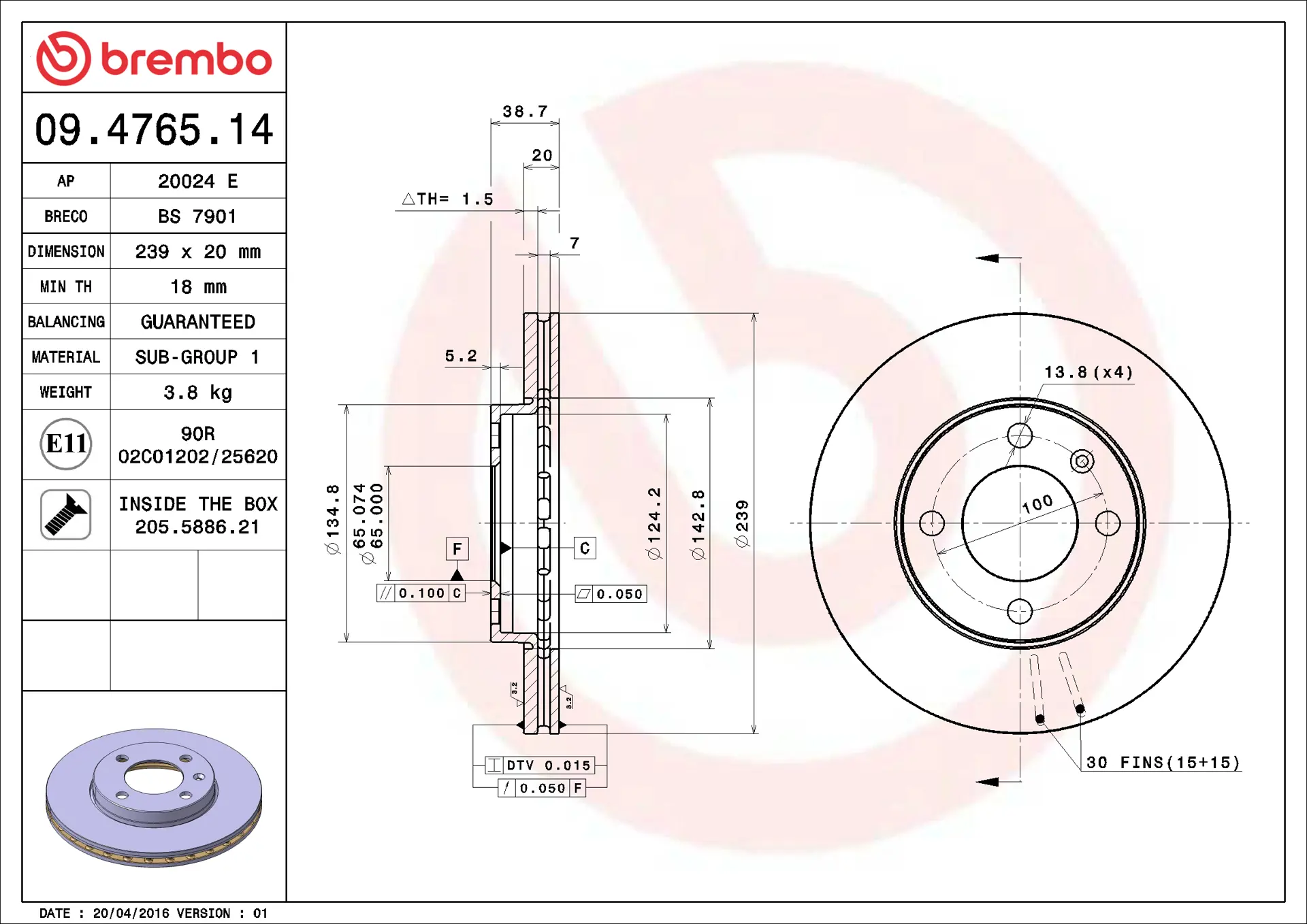

Descărcare fișă tehnică
09.4765.14
09.4765.14
09.4765.14
Specificații tehnice
Disc cu șuruburi de fixare
Prin introducerea șurubului de fixare în cutia discului, Brembo furnizează un ajutor în plus mecanicului în situația în care șurubul original ruginește sau se uzează într-o asemenea măsură încât să împiedice reutilizarea sau să o facă periculoasă.
Autovehicule compatibile

AUDI

Model Tip kW CV An
Model80 B1 Saloon (80, 82) Tip1.6 GT kW74 CV100 An09.73 - 07.76
Model80 B1 Saloon (80, 82) Tip1.6 GTE kW81 CV110 An01.76 - 07.78
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.3 kW44 CV60 An09.78 - 07.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.6 kW63 CV85 An08.78 - 02.83
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.6 kW55 CV75 An08.78 - 07.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.6 kW55 CV75 An08.78 - 03.87
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.6 kW54 CV73 An02.86 - 07.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.6 GLE kW81 CV110 An08.78 - 07.82
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.8 kW66 CV90 An01.83 - 08.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.8 kW68 CV93 An08.83 - 08.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.8 kW65 CV88 An02.86 - 07.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.8 GTE kW82 CV112 An10.84 - 08.86
Model80 B2 Saloon (811, 813, 814, 819, 853) Tip1.8 GTE kW81 CV110 An08.85 - 07.86
ModelCOUPE B2 (81, 855, 856) Tip1.8 GT kW66 CV90 An09.82 - 10.88
ModelCOUPE B2 (81, 855, 856) Tip1.8 GT kW68 CV93 An01.85 - 07.88
ModelCOUPE B2 (81, 855, 856) Tip1.8 GT kW65 CV88 An04.86 - 10.88
ModelCOUPE B2 (81, 855, 856) Tip1.8 GT kW79 CV107 An08.86 - 10.87
ModelCOUPE B2 (81, 855, 856) Tip1.8 GT kW82 CV112 An08.86 - 10.88
ModelCOUPE B2 (81, 855, 856) Tip1.8 GT quattro kW82 CV112 An12.84 - 10.88
ModelCOUPE B2 (81, 855, 856) Tip2.1 GT kW96 CV131 An09.82 - 10.87

SEAT

Model Tip kW CV An
ModelCORDOBA (6K1, 6K2) Tip1.0 i kW37 CV50 An09.96 - 10.02
ModelCORDOBA (6K1, 6K2) Tip1.4 kW40 CV54 An12.97 - 04.99
ModelCORDOBA (6K1, 6K2) Tip1.4 16V kW55 CV75 An05.00 - 10.02
ModelCORDOBA (6K1, 6K2) Tip1.4 i kW44 CV60 An06.94 - 10.02
ModelCORDOBA (6K1, 6K2) Tip1.4 i 16V kW74 CV101 An09.96 - 10.02
ModelCORDOBA (6K1, 6K2) Tip1.6 i kW55 CV75 An02.93 - 10.02
ModelCORDOBA (6K1, 6K2) Tip1.6 i kW55 CV75 An05.94 - 06.99
ModelCORDOBA (6K1, 6K2) Tip1.8 i kW66 CV90 An02.93 - 09.02
ModelCORDOBA (6K1, 6K2) Tip1.9 D kW50 CV68 An02.93 - 08.96
ModelCORDOBA (6K1, 6K2) Tip1.9 D kW47 CV64 An01.96 - 08.96
ModelCORDOBA (6K1, 6K2) Tip1.9 SDI kW47 CV64 An08.96 - 06.99
ModelCORDOBA (6K1, 6K2) Tip1.9 SDI kW50 CV68 An06.99 - 10.02
ModelCORDOBA (6K1, 6K2) Tip1.9 TD kW55 CV75 An02.93 - 08.96
ModelCORDOBA Vario (6K5) Tip1.4 16V kW55 CV75 An06.99 - 12.02
ModelCORDOBA Vario (6K5) Tip1.4 i kW44 CV60 An09.96 - 12.02
ModelCORDOBA Vario (6K5) Tip1.6 i kW55 CV75 An09.96 - 12.02
ModelCORDOBA Vario (6K5) Tip1.6 i kW55 CV75 An05.97 - 06.99
ModelCORDOBA Vario (6K5) Tip1.9 SDI kW47 CV64 An09.96 - 06.99
ModelCORDOBA Vario (6K5) Tip1.9 SDI kW50 CV68 An06.99 - 12.02
ModelIBIZA II (6K1) Tip1.0 kW33 CV45 An03.93 - 09.96
ModelIBIZA II (6K1) Tip1.0 i kW37 CV50 An09.96 - 02.02
ModelIBIZA II (6K1) Tip1.3 i kW40 CV54 An03.93 - 08.99
ModelIBIZA II (6K1) Tip1.4 kW40 CV54 An12.97 - 04.99
ModelIBIZA II (6K1) Tip1.4 16V kW55 CV75 An05.00 - 02.02
ModelIBIZA II (6K1) Tip1.4 i kW44 CV60 An09.93 - 02.02
ModelIBIZA II (6K1) Tip1.4 i 16V kW74 CV101 An06.97 - 02.02
ModelIBIZA II (6K1) Tip1.6 i kW55 CV75 An03.93 - 02.02
ModelIBIZA II (6K1) Tip1.6 i kW55 CV75 An09.94 - 06.99
ModelIBIZA II (6K1) Tip1.6 i kW74 CV101 An04.96 - 02.02
ModelIBIZA II (6K1) Tip1.8 i kW66 CV90 An03.93 - 08.99
ModelIBIZA II (6K1) Tip1.9 D kW47 CV64 An04.93 - 08.96
ModelIBIZA II (6K1) Tip1.9 SDI kW47 CV64 An08.96 - 08.99
ModelIBIZA II (6K1) Tip1.9 SDI kW50 CV68 An08.99 - 02.02
ModelIBIZA II (6K1) Tip1.9 TD kW55 CV75 An03.93 - 08.96
ModelTOLEDO I (1L2) Tip1.6 i kW52 CV71 An05.91 - 12.93
ModelTOLEDO I (1L2) Tip1.6 i kW54 CV73 An05.91 - 03.99
ModelTOLEDO I (1L2) Tip1.6 i kW55 CV75 An01.93 - 03.99
ModelTOLEDO I (1L2) Tip1.6 i kW74 CV101 An11.96 - 03.99
ModelTOLEDO I (1L2) Tip1.8 i kW65 CV88 An05.91 - 12.96
ModelTOLEDO I (1L2) Tip1.8 i kW66 CV90 An11.93 - 12.96
ModelTOLEDO I (1L2) Tip1.9 D kW50 CV68 An05.91 - 03.99
ModelTOLEDO I (1L2) Tip1.9 D kW47 CV64 An12.95 - 03.99
ModelTOLEDO I (1L2) Tip1.9 TD kW55 CV75 An05.91 - 03.99

VW

Model Tip kW CV An
ModelGOLF I (17) Tip1.6 GTI kW81 CV110 An08.76 - 07.82
ModelGOLF I (17) Tip1.8 GTI kW82 CV112 An08.82 - 12.83
ModelGOLF I Cabriolet (155) Tip1.6 kW81 CV110 An08.79 - 07.82
ModelGOLF I Cabriolet (155) Tip1.8 kW82 CV112 An08.82 - 12.89
ModelGOLF I Cabriolet (155) Tip1.8 kW66 CV90 An08.83 - 09.92
ModelGOLF I Cabriolet (155) Tip1.8 kW70 CV95 An08.83 - 04.93
ModelGOLF I Cabriolet (155) Tip1.8 kW72 CV98 An08.89 - 03.93
ModelGOLF II (19E, 1G1) Tip1.8 kW66 CV90 An08.84 - 10.91
ModelGOLF II (19E, 1G1) Tip1.8 kW62 CV84 An08.86 - 01.90
ModelGOLF II (19E, 1G1) Tip1.8 GTI kW82 CV112 An08.83 - 10.91
ModelGOLF II (19E, 1G1) Tip1.8 GTI kW77 CV105 An01.85 - 07.85
ModelGOLF II (19E, 1G1) Tip1.8 GTI kW79 CV107 An08.85 - 10.87
ModelGOLF II (19E, 1G1) Tip1.8 GTI 16V kW102 CV139 An02.86 - 06.90
ModelGOLF II (19E, 1G1) Tip1.8 GTI 16V kW95 CV129 An02.86 - 10.91
ModelGOLF II (19E, 1G1) Tip1.8 GTI Cat kW79 CV107 An01.87 - 10.91
ModelGOLF II (19E, 1G1) Tip1.8 i Cat kW66 CV90 An08.87 - 10.91
ModelGOLF III (1H1) Tip1.4 kW44 CV60 An10.91 - 08.97
ModelGOLF III (1H1) Tip1.4 kW40 CV55 An11.91 - 08.97
ModelGOLF III (1H1) Tip1.6 kW55 CV75 An09.92 - 08.97
ModelGOLF III (1H1) Tip1.9 D kW47 CV64 An11.91 - 08.97
ModelGOLF III (1H1) Tip1.9 SDI kW47 CV64 An07.95 - 08.97
ModelGOLF III (1H1) Tip1.9 TD,GTD kW55 CV75 An11.91 - 08.97
ModelGOLF III Variant (1H5) Tip1.4 kW40 CV55 An07.93 - 04.99
ModelGOLF III Variant (1H5) Tip1.4 kW44 CV60 An07.93 - 04.99
ModelGOLF III Variant (1H5) Tip1.9 D kW47 CV64 An07.93 - 04.99
ModelGOLF III Variant (1H5) Tip1.9 SDI kW47 CV64 An07.95 - 04.99
ModelGOLF III Variant (1H5) Tip1.9 TD kW55 CV75 An07.93 - 04.99
ModelJETTA I (16) Tip1.6 GLI kW81 CV110 An08.78 - 07.82
ModelJETTA I (16) Tip1.8 kW82 CV112 An08.82 - 02.84
ModelJETTA II (19E, 1G2, 165) Tip1.8 kW82 CV112 An01.84 - 10.91
ModelJETTA II (19E, 1G2, 165) Tip1.8 kW66 CV90 An08.84 - 10.91
ModelJETTA II (19E, 1G2, 165) Tip1.8 kW79 CV107 An08.85 - 10.87
ModelJETTA II (19E, 1G2, 165) Tip1.8 kW62 CV84 An08.86 - 01.90
ModelJETTA II (19E, 1G2, 165) Tip1.8 16V kW95 CV129 An08.86 - 10.91
ModelJETTA II (19E, 1G2, 165) Tip1.8 16V kW102 CV140 An06.87 - 12.89
ModelJETTA II (19E, 1G2, 165) Tip1.8 Cat kW79 CV107 An01.87 - 10.91
ModelJETTA II (19E, 1G2, 165) Tip1.8 Cat kW66 CV90 An08.87 - 10.91
ModelPASSAT B1 Variant (33) Tip1.6 i kW81 CV110 An06.78 - 07.80
ModelPASSAT B2 (32B) Tip1.9 kW85 CV115 An01.81 - 07.83
ModelPASSAT B2 (32B) Tip2.0 kW85 CV115 An08.83 - 03.88
ModelPASSAT B2 (32B) Tip2.2 kW85 CV115 An08.85 - 03.88
ModelPASSAT B2 Saloon (32B) Tip2.2 kW85 CV115 An01.85 - 03.88
ModelPASSAT B2 Variant (33B) Tip1.9 kW85 CV115 An01.81 - 07.83
ModelPASSAT B2 Variant (33B) Tip2.0 kW85 CV115 An08.83 - 03.88
ModelPASSAT B2 Variant (33B) Tip2.2 kW85 CV115 An08.85 - 03.88
ModelPOLO Coupe (86C, 80) Tip1.3 G40 kW85 CV115 An01.87 - 08.90
ModelPOLO Coupe (86C, 80) Tip1.3 G40 kW83 CV113 An08.90 - 09.94
ModelPOLO III CLASSIC (6V2) Tip100 1.6 kW74 CV100 An12.95 - 09.01
ModelPOLO III CLASSIC (6V2) Tip110 1.9 TDI kW81 CV110 An06.98 - 01.02
ModelPOLO III CLASSIC (6V2) Tip54 1.4 kW40 CV54 An01.98 - 08.99
ModelPOLO III CLASSIC (6V2) Tip57 1.7 SDI kW42 CV57 An07.97 - 09.01
ModelPOLO III CLASSIC (6V2) Tip60 1.4 kW44 CV60 An12.95 - 09.01
ModelPOLO III CLASSIC (6V2) Tip64 1.9 SDI kW47 CV64 An12.95 - 08.99
ModelPOLO III CLASSIC (6V2) Tip68 1.9 SDI kW50 CV68 An08.99 - 01.02
ModelPOLO III CLASSIC (6V2) Tip75 1.4 16V kW55 CV75 An10.99 - 09.01
ModelPOLO III CLASSIC (6V2) Tip75 1.6 kW55 CV75 An11.95 - 09.97
ModelPOLO III CLASSIC (6V2) Tip75 1.6 kW55 CV75 An11.95 - 09.01
ModelPOLO III CLASSIC (6V2) Tip90 1.8 kW66 CV90 An01.97 - 09.01
ModelPOLO III CLASSIC (6V2) Tip90 1.9 TDI kW66 CV90 An09.96 - 09.01
ModelPOLO Variant (6V5) Tip1.4 kW44 CV60 An05.97 - 09.01
ModelPOLO Variant (6V5) Tip1.4 kW40 CV54 An12.98 - 09.01
ModelPOLO Variant (6V5) Tip1.4 16V kW55 CV75 An10.99 - 09.01
ModelPOLO Variant (6V5) Tip1.6 kW55 CV75 An05.97 - 09.01
ModelPOLO Variant (6V5) Tip1.6 kW74 CV101 An05.97 - 09.01
ModelPOLO Variant (6V5) Tip1.7 SDI kW42 CV57 An08.97 - 09.01
ModelPOLO Variant (6V5) Tip1.8 kW66 CV90 An05.97 - 09.01
ModelPOLO Variant (6V5) Tip1.9 SDI kW47 CV64 An06.97 - 09.01
ModelPOLO Variant (6V5) Tip1.9 SDI kW50 CV68 An08.99 - 09.01
ModelPOLO Variant (6V5) Tip1.9 TDI kW66 CV90 An05.97 - 09.01
ModelPOLO Variant (6V5) Tip1.9 TDI kW81 CV110 An06.98 - 09.01
ModelSANTANA (32B) Tip1.9 kW85 CV115 An08.81 - 07.83
ModelSANTANA (32B) Tip2.0 kW85 CV115 An08.83 - 12.84
ModelSCIROCCO (53) Tip1.6 kW81 CV110 An06.76 - 07.80
ModelSCIROCCO (53B) Tip1.6 kW81 CV110 An08.80 - 07.82
ModelSCIROCCO (53B) Tip1.8 kW82 CV112 An08.82 - 12.89
ModelSCIROCCO (53B) Tip1.8 kW66 CV90 An08.83 - 07.92
ModelSCIROCCO (53B) Tip1.8 kW70 CV95 An11.85 - 07.92
ModelVENTO (1H2) Tip1.9 D kW48 CV65 An11.91 - 09.98
ModelVENTO (1H2) Tip1.9 SDI kW47 CV64 An04.97 - 09.98
Coduri OE
Coduri OE compatibile
AUDI 321615301A
AUDI 321615301B
AUDI 321615301C
AUDI 6N0615301G
AUDI 841615301
SEAT 321615301C
SEAT 6N0615301G
VW 321615301A
VW 321615301B
VW 321615301C
VW 6N0615301G
VW 841615301
VW JZW615301K
VW (SVW) 3256152891
VW (SVW) 5W0615301
