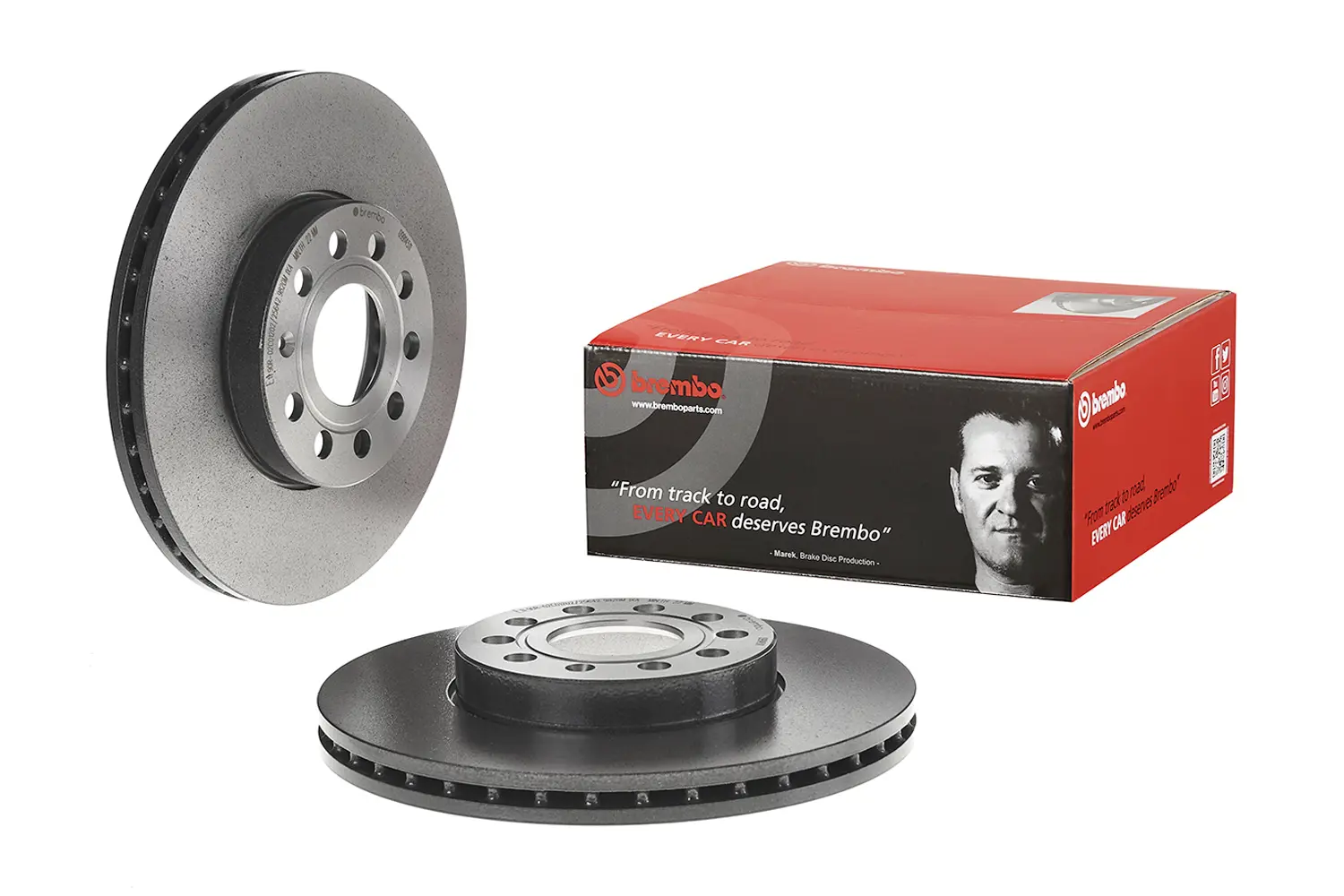

09.9145.11

Disc

Adaugă la preferate

Preferatele mele

Produse comparate

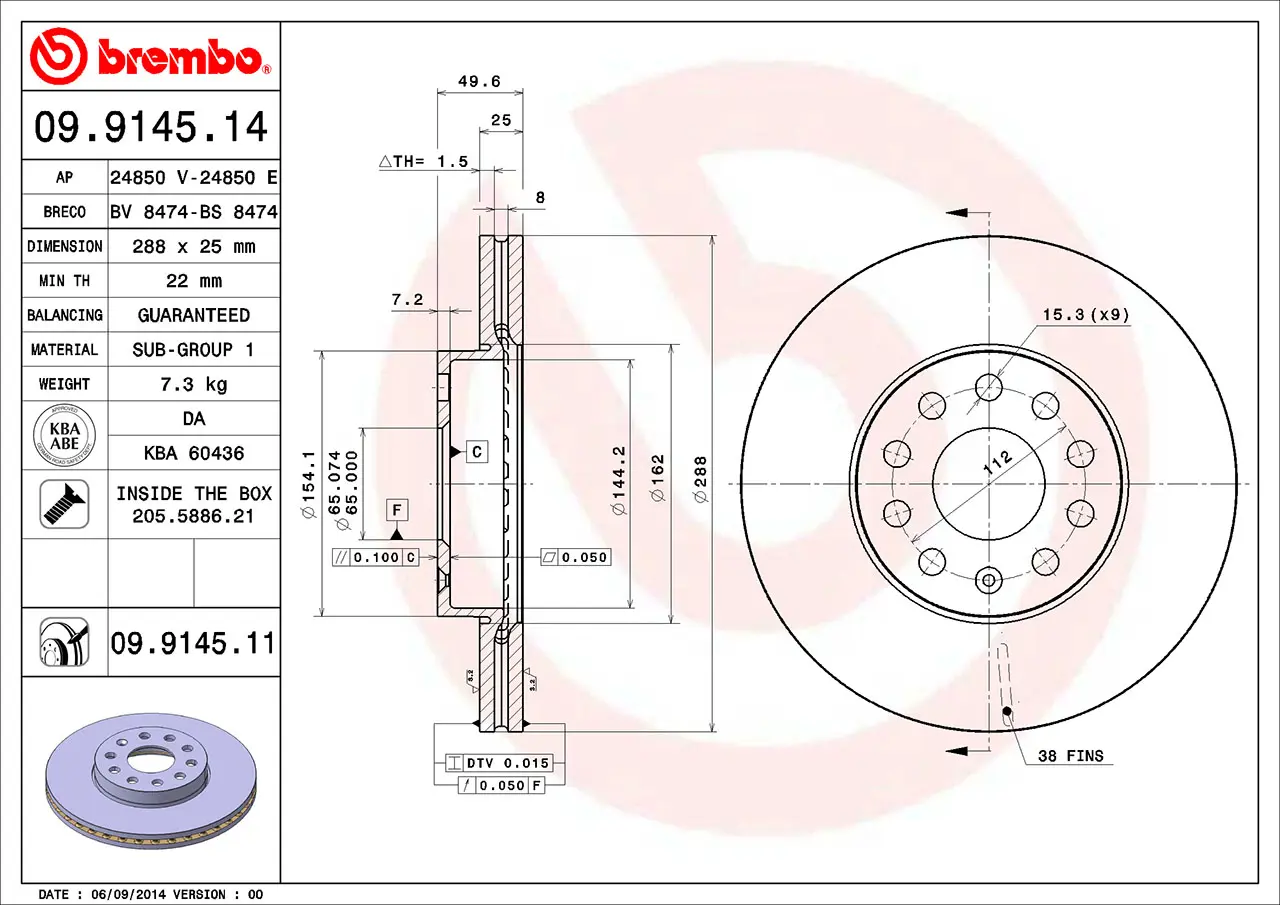

Specificații tehnice disc

Osie

Anterioară

Diametru

288 mm

Înălțime totală (A)

49,5 mm

Diametru de centrare (B)

65 mm

Număr orificii (C)

5

Grosime (TH)

25 mm

Grosime min.

22 mm

Cuplu de strângere

120 Nm

Unităţi per cutie

2

Cod EAN

8020584024287

Discuri

Coduri mărci

Brembo 09.9145.11

AP 24850 V

Breco BV 8474

De unde se cumpără

Descărcare fișă tehnică

09.9145.11

09.9145.11

09.9145.11

Specificații tehnice

Disc cu șuruburi de fixare

Prin introducerea șurubului de fixare în cutia discului, Brembo furnizează un ajutor în plus mecanicului în situația în care șurubul original ruginește sau se uzează într-o asemenea măsură încât să împiedice reutilizarea sau să o facă periculoasă.

Disc UV

Procesul de vopsire UV garantează o rezistență superioară la coroziune și o protecție completă a discului.

Află mai multe

Autovehicule compatibile

AUDI

ModelA3 (8P1) Tip1.4 TFSI kW92 CV125 An09/07 - 08/12

ModelA3 (8P1) Tip1.6 kW75 CV102 An05/03 - 08/12

ModelA3 (8P1) Tip1.6 FSI kW85 CV115 An08/03 - 09/07

ModelA3 (8P1) Tip1.6 TDI kW66 CV90 An05/09 - 08/12

ModelA3 (8P1) Tip1.6 TDI kW77 CV105 An05/09 - 08/12

ModelA3 (8P1) Tip1.8 TFSI kW118 CV160 An11/06 - 08/12

ModelA3 (8P1) Tip1.8 TFSI quattro kW118 CV160 An07/08 - 08/12

ModelA3 (8P1) Tip1.9 TDI kW77 CV105 An05/03 - 05/10

ModelA3 (8P1) Tip2.0 FSI kW110 CV150 An05/03 - 06/08

ModelA3 (8P1) Tip2.0 TDI kW100 CV136 An05/03 - 08/12

ModelA3 (8P1) Tip2.0 TDI kW103 CV140 An06/05 - 06/08

ModelA3 (8P1) Tip2.0 TDI 16V kW103 CV140 An05/03 - 08/12

ModelA3 (8P1) Tip2.0 TDI 16V quattro kW103 CV140 An08/04 - 08/12

ModelA3 (8P1) Tip2.0 TDI quattro kW103 CV140 An01/06 - 06/08

ModelA3 (8P1) Tip2.0 TDI quattro kW100 CV136 An05/03 - 06/08

ModelA3 (8V1, 8VK) Tip1.0 TFSI kW85 CV115 An07/16

ModelA3 (8V1, 8VK) Tip1.2 TFSI kW77 CV105 An02/13 - 05/15

ModelA3 (8V1, 8VK) Tip1.2 TFSI kW81 CV110 An05/14 - 08/16

ModelA3 (8V1, 8VK) Tip1.4 TFSI kW103 CV140 An03/13 - 08/16

ModelA3 (8V1, 8VK) Tip1.4 TFSI kW90 CV122 An04/12 - 05/14

ModelA3 (8V1, 8VK) Tip1.4 TFSI kW92 CV125 An05/14 - 08/16

ModelA3 (8V1, 8VK) Tip1.4 TSI kW110 CV150 An05/14

ModelA3 (8V1, 8VK) Tip1.6 TDI kW85 CV115 An02/17

ModelA3 (8V1, 8VK) Tip1.6 TDI kW81 CV110 An09/13

ModelA3 (8V1, 8VK) Tip1.6 TDI kW77 CV105 An10/12 - 05/15

ModelA3 (8V1, 8VK) Tip1.8 TFSI kW132 CV180 An04/12 - 08/16

ModelA3 (8V1, 8VK) Tip1.8 TFSI quattro kW132 CV180 An08/12 - 08/16

ModelA3 (8V1, 8VK) Tip2.0 TDI kW81 CV110 An01/13 - 08/16

ModelA3 (8V1, 8VK) Tip2.0 TDI kW110 CV150 An04/12

ModelA3 (8V1, 8VK) Tip2.0 TDI kW100 CV136 An05/13 - 08/16

ModelA3 (8V1, 8VK) Tip2.0 TDI kW135 CV184 An05/13 - 08/16

ModelA3 (8V1, 8VK) Tip2.0 TDI kW105 CV143 An09/12

ModelA3 (8V1, 8VK) Tip2.0 TDI quattro kW110 CV150 An10/12

ModelA3 (8V1, 8VK) Tip2.0 TDI quattro kW135 CV184 An12/12

ModelA3 (8V1, 8VK) Tip2.0 TFSI kW140 CV190 An05/16

ModelA3 (8V1, 8VK) Tip2.0 TFSI quattro kW140 CV190 An05/16

ModelA3 Convertible (8P7) Tip1.4 TFSI kW92 CV125 An02/11 - 05/13

ModelA3 Convertible (8P7) Tip1.8 TFSI kW118 CV160 An04/08 - 05/13

ModelA3 Convertible (8P7) Tip2.0 TDI kW103 CV140 An04/08 - 05/13

ModelA3 Convertible (8V7, 8VE) Tip1.4 TFSI kW92 CV125 An02/14

ModelA3 Convertible (8V7, 8VE) Tip1.4 TFSI kW85 CV115 An02/16

ModelA3 Convertible (8V7, 8VE) Tip1.4 TFSI kW103 CV140 An10/13

ModelA3 Convertible (8V7, 8VE) Tip1.4 TSI kW110 CV150 An05/14

ModelA3 Convertible (8V7, 8VE) Tip1.6 TDI kW81 CV110 An02/14

ModelA3 Convertible (8V7, 8VE) Tip1.8 TFSI kW125 CV170 An05/14

ModelA3 Convertible (8V7, 8VE) Tip1.8 TFSI kW132 CV180 An10/13

ModelA3 Convertible (8V7, 8VE) Tip1.8 TFSI quattro kW132 CV180 An03/14

ModelA3 Convertible (8V7, 8VE) Tip2.0 TDI kW135 CV184 An05/14

ModelA3 Convertible (8V7, 8VE) Tip2.0 TDI kW100 CV136 An10/13

ModelA3 Convertible (8V7, 8VE) Tip2.0 TDI kW110 CV150 An10/13

ModelA3 Convertible (8V7, 8VE) Tip2.0 TDI quattro kW110 CV150 An03/14

ModelA3 Convertible (8V7, 8VE) Tip2.0 TDI quattro kW135 CV184 An05/14

ModelA3 Convertible (8V7, 8VE) Tip2.0 TFSI kW140 CV190 An05/16

ModelA3 Convertible (8V7, 8VE) Tip2.0 TFSI quattro kW162 CV220 An05/14

ModelA3 Convertible (8V7, 8VE) Tip2.0 TFSI quattro kW140 CV190 An05/16

ModelA3 Limousine (8VS, 8VM) Tip1.0 TFSI kW85 CV115 An07/16 - 10/18

ModelA3 Limousine (8VS, 8VM) Tip1.2 TFSI kW81 CV110 An05/14

ModelA3 Limousine (8VS, 8VM) Tip1.2 TFSI kW77 CV105 An10/13

ModelA3 Limousine (8VS, 8VM) Tip1.4 TFSI kW103 CV140 An05/13

ModelA3 Limousine (8VS, 8VM) Tip1.4 TFSI kW90 CV122 An09/13

ModelA3 Limousine (8VS, 8VM) Tip1.4 TFSI kW92 CV125 An09/13

ModelA3 Limousine (8VS, 8VM) Tip1.4 TSI kW110 CV150 An05/14

ModelA3 Limousine (8VS, 8VM) Tip1.6 TDI kW85 CV115 An03/17

ModelA3 Limousine (8VS, 8VM) Tip1.6 TDI kW81 CV110 An05/14

ModelA3 Limousine (8VS, 8VM) Tip1.6 TDI kW77 CV105 An09/13

ModelA3 Limousine (8VS, 8VM) Tip1.6 TDI quattro kW81 CV110 An05/15

ModelA3 Limousine (8VS, 8VM) Tip1.8 TFSI kW132 CV180 An05/13

ModelA3 Limousine (8VS, 8VM) Tip1.8 TFSI kW125 CV170 An11/13

ModelA3 Limousine (8VS, 8VM) Tip1.8 TFSI quattro kW132 CV180 An11/13

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI kW81 CV110 An05/13

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI kW110 CV150 An05/13

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI kW135 CV184 An05/14

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI kW100 CV136 An09/13

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI kW105 CV143 An10/13

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI quattro kW135 CV184 An05/14 - 07/18

ModelA3 Limousine (8VS, 8VM) Tip2.0 TDI quattro kW110 CV150 An10/13

ModelA3 Limousine (8VS, 8VM) Tip2.0 TFSI kW140 CV190 An05/16

ModelA3 Limousine (8VS, 8VM) Tip2.0 TFSI quattro kW140 CV190 An05/16

ModelA3 Sportback (8PA) Tip1.4 TFSI kW92 CV125 An09/07 - 03/13

ModelA3 Sportback (8PA) Tip1.6 kW75 CV102 An09/04 - 03/13

ModelA3 Sportback (8PA) Tip1.6 FSI kW85 CV115 An09/04 - 09/07

ModelA3 Sportback (8PA) Tip1.6 TDI kW66 CV90 An05/09 - 03/13

ModelA3 Sportback (8PA) Tip1.6 TDI kW77 CV105 An05/09 - 03/13

ModelA3 Sportback (8PA) Tip1.8 TFSI kW118 CV160 An11/06 - 03/13

ModelA3 Sportback (8PA) Tip1.8 TFSI quattro kW118 CV160 An07/08 - 03/13

ModelA3 Sportback (8PA) Tip1.9 TDI kW77 CV105 An09/04 - 05/10

ModelA3 Sportback (8PA) Tip2.0 FSI kW110 CV150 An09/04 - 06/08

ModelA3 Sportback (8PA) Tip2.0 TDI kW103 CV140 An06/05 - 06/08

ModelA3 Sportback (8PA) Tip2.0 TDI 16V kW103 CV140 An09/04 - 03/13

ModelA3 Sportback (8PA) Tip2.0 TDI 16V quattro kW103 CV140 An11/05 - 03/13

ModelA3 Sportback (8PA) Tip2.0 TDI quattro kW103 CV140 An01/06 - 06/08

ModelA3 Sportback (8VA, 8VF) Tip1.0 TFSI kW85 CV115 An07/16

ModelA3 Sportback (8VA, 8VF) Tip1.2 TFSI kW77 CV105 An05/13

ModelA3 Sportback (8VA, 8VF) Tip1.2 TFSI kW81 CV110 An05/14

ModelA3 Sportback (8VA, 8VF) Tip1.4 TFSI kW103 CV140 An03/13

ModelA3 Sportback (8VA, 8VF) Tip1.4 TFSI kW92 CV125 An05/14

ModelA3 Sportback (8VA, 8VF) Tip1.4 TFSI kW90 CV122 An09/12

ModelA3 Sportback (8VA, 8VF) Tip1.4 TFSI e-tron kW110 CV150 An05/14

ModelA3 Sportback (8VA, 8VF) Tip1.4 TFSI g-tron kW81 CV110 An11/13

ModelA3 Sportback (8VA, 8VF) Tip1.4 TSI kW110 CV150 An05/14

ModelA3 Sportback (8VA, 8VF) Tip1.6 TDI kW85 CV115 An02/17

ModelA3 Sportback (8VA, 8VF) Tip1.6 TDI kW81 CV110 An09/13

ModelA3 Sportback (8VA, 8VF) Tip1.6 TDI kW77 CV105 An10/12

ModelA3 Sportback (8VA, 8VF) Tip1.6 TDI quattro kW81 CV110 An05/15

ModelA3 Sportback (8VA, 8VF) Tip1.8 TFSI kW132 CV180 An09/12

ModelA3 Sportback (8VA, 8VF) Tip1.8 TFSI quattro kW132 CV180 An05/13

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI kW105 CV143 An03/13

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI kW81 CV110 An05/13

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI kW100 CV136 An05/13

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI kW135 CV184 An05/13

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI kW110 CV150 An09/12

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI quattro kW110 CV150 An02/13

ModelA3 Sportback (8VA, 8VF) Tip2.0 TDI quattro kW135 CV184 An05/13 - 07/18

ModelA3 Sportback (8VA, 8VF) Tip2.0 TFSI kW140 CV190 An05/16

ModelA3 Sportback (8VA, 8VF) Tip2.0 TFSI quattro kW140 CV190 An05/16

SEAT

ModelALTEA (5P1) Tip1.2 TSI kW77 CV105 An04/10

ModelALTEA (5P1) Tip1.4 TSI kW92 CV125 An11/07

ModelALTEA (5P1) Tip1.6 TDI kW77 CV105 An10/09

ModelALTEA (5P1) Tip1.8 TFSI kW118 CV160 An01/07

ModelALTEA (5P1) Tip1.9 TDI kW77 CV105 An04/04

ModelALTEA (5P1) Tip2.0 FSI kW110 CV150 An05/04 - 03/09

ModelALTEA (5P1) Tip2.0 TDI kW100 CV136 An03/04 - 05/09

ModelALTEA (5P1) Tip2.0 TDI kW103 CV140 An11/05

ModelALTEA (5P1) Tip2.0 TDI 16V kW103 CV140 An03/04

ModelALTEA XL (5P5, 5P8) Tip1.2 TSI kW77 CV105 An04/10

ModelALTEA XL (5P5, 5P8) Tip1.4 TSI kW92 CV125 An11/07

ModelALTEA XL (5P5, 5P8) Tip1.6 TDI kW77 CV105 An10/09

ModelALTEA XL (5P5, 5P8) Tip1.8 TFSI kW118 CV160 An01/07

ModelALTEA XL (5P5, 5P8) Tip1.9 TDI kW77 CV105 An10/06

ModelALTEA XL (5P5, 5P8) Tip2.0 FSI kW110 CV150 An10/06 - 03/09

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI kW103 CV140 An10/06

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI 16V kW103 CV140 An10/06

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI 16V 4x4 kW103 CV140 An10/10

ModelALTEA XL (5P5, 5P8) Tip2.0 TDI 4x4 kW103 CV140 An06/07

ModelLEON (1P1) Tip1.4 TSI kW92 CV125 An11/07 - 12/12

ModelLEON (1P1) Tip1.6 LPG kW75 CV102 An12/09 - 12/12

ModelLEON (1P1) Tip1.6 TDI kW77 CV105 An02/10 - 12/12

ModelLEON (1P1) Tip2.0 FSI kW110 CV150 An07/05 - 05/10

ModelLEON (1P1) Tip2.0 TDI kW100 CV136 An07/05 - 05/10

ModelLEON (1P1) Tip2.0 TDI kW103 CV140 An10/05 - 10/10

ModelLEON (1P1) Tip2.0 TDI 16V kW103 CV140 An07/05 - 12/12

ModelLEON (5F1) Tip1.0 TSI kW85 CV115 An05/15

ModelLEON (5F1) Tip1.2 TSI kW77 CV105 An01/13

ModelLEON (5F1) Tip1.2 TSI kW81 CV110 An04/14

ModelLEON (5F1) Tip1.2 TSI kW63 CV86 An12/12

ModelLEON (5F1) Tip1.4 TGI kW81 CV110 An02/13

ModelLEON (5F1) Tip1.4 TSI kW92 CV125 An05/14

ModelLEON (5F1) Tip1.4 TSI kW110 CV150 An05/14

ModelLEON (5F1) Tip1.4 TSI kW103 CV140 An09/12

ModelLEON (5F1) Tip1.4 TSI kW90 CV122 An11/12

ModelLEON (5F1) Tip1.6 TDI kW81 CV110 An09/13

ModelLEON (5F1) Tip1.6 TDI kW66 CV90 An11/12

ModelLEON (5F1) Tip1.6 TDI kW77 CV105 An11/12

ModelLEON (5F1) Tip1.6 TDI kW85 CV115 An11/16

ModelLEON (5F1) Tip1.8 TSI kW132 CV180 An02/13

ModelLEON (5F1) Tip2.0 TDI kW81 CV110 An05/13

ModelLEON (5F1) Tip2.0 TDI kW105 CV143 An05/13

ModelLEON (5F1) Tip2.0 TDI kW135 CV184 An09/12

ModelLEON (5F1) Tip2.0 TDI kW110 CV150 An10/12

ModelLEON SC (5F5) Tip1.0 TSI kW85 CV115 An05/15 - 08/18

ModelLEON SC (5F5) Tip1.2 TSI kW63 CV86 An01/13 - 08/18

ModelLEON SC (5F5) Tip1.2 TSI kW77 CV105 An02/13 - 04/14

ModelLEON SC (5F5) Tip1.2 TSI kW81 CV110 An05/14 - 08/18

ModelLEON SC (5F5) Tip1.4 TSI kW90 CV122 An02/13 - 06/15

ModelLEON SC (5F5) Tip1.4 TSI kW103 CV140 An02/13 - 11/16

ModelLEON SC (5F5) Tip1.4 TSI kW92 CV125 An05/14 - 08/18

ModelLEON SC (5F5) Tip1.4 TSI kW110 CV150 An05/14 - 08/18

ModelLEON SC (5F5) Tip1.6 TDI kW66 CV90 An02/13 - 08/18

ModelLEON SC (5F5) Tip1.6 TDI kW77 CV105 An02/13 - 08/18

ModelLEON SC (5F5) Tip1.6 TDI kW81 CV110 An09/13 - 11/16

ModelLEON SC (5F5) Tip1.6 TDI kW85 CV115 An11/16 - 08/18

ModelLEON SC (5F5) Tip1.8 TSI kW132 CV180 An02/13 - 08/18

ModelLEON SC (5F5) Tip2.0 TDI kW110 CV150 An02/13

ModelLEON SC (5F5) Tip2.0 TDI kW135 CV184 An03/13

ModelLEON SC (5F5) Tip2.0 TDI kW105 CV143 An05/13

ModelLEON ST (5F8) Tip1.0 TSI kW85 CV115 An05/15

ModelLEON ST (5F8) Tip1.2 TSI kW81 CV110 An05/14

ModelLEON ST (5F8) Tip1.2 TSI kW77 CV105 An08/13

ModelLEON ST (5F8) Tip1.2 TSI kW63 CV86 An11/13

ModelLEON ST (5F8) Tip1.4 TGI kW81 CV110 An10/13

ModelLEON ST (5F8) Tip1.4 TSI kW92 CV125 An05/14

ModelLEON ST (5F8) Tip1.4 TSI kW110 CV150 An05/14

ModelLEON ST (5F8) Tip1.4 TSI kW90 CV122 An09/12

ModelLEON ST (5F8) Tip1.4 TSI kW103 CV140 An10/13

ModelLEON ST (5F8) Tip1.6 TDI kW81 CV110 An09/13

ModelLEON ST (5F8) Tip1.6 TDI kW77 CV105 An10/13

ModelLEON ST (5F8) Tip1.6 TDI kW66 CV90 An11/13

ModelLEON ST (5F8) Tip1.6 TDI kW85 CV115 An11/16

ModelLEON ST (5F8) Tip1.6 TDI 4Drive kW77 CV105 An04/14

ModelLEON ST (5F8) Tip1.6 TDI 4Drive kW81 CV110 An11/14

ModelLEON ST (5F8) Tip1.8 TSI kW132 CV180 An10/13

ModelLEON ST (5F8) Tip1.8 TSI 4Drive kW132 CV180 An11/14

ModelLEON ST (5F8) Tip2.0 TDI kW135 CV184 An08/13

ModelLEON ST (5F8) Tip2.0 TDI kW105 CV143 An10/13

ModelLEON ST (5F8) Tip2.0 TDI kW110 CV150 An10/13

ModelLEON ST (5F8) Tip2.0 TDI kW81 CV110 An11/13

ModelLEON ST (5F8) Tip2.0 TDI 4Drive kW110 CV150 An04/14

ModelLEON ST (5F8) Tip2.0 TDI 4Drive kW135 CV184 An11/14

ModelTOLEDO III (5P2) Tip1.8 TFSI kW118 CV160 An01/07 - 05/09

ModelTOLEDO III (5P2) Tip1.9 TDI kW77 CV105 An10/04 - 05/09

ModelTOLEDO III (5P2) Tip2.0 FSI kW110 CV150 An10/04 - 05/09

ModelTOLEDO III (5P2) Tip2.0 TDI kW125 CV170 An01/06 - 05/09

ModelTOLEDO III (5P2) Tip2.0 TDI kW100 CV136 An09/04 - 05/09

ModelTOLEDO III (5P2) Tip2.0 TDI kW103 CV140 An11/05 - 05/09

ModelTOLEDO III (5P2) Tip2.0 TDI 16V kW103 CV140 An04/04 - 05/09

ModelTOLEDO III (5P2) Tip2.0 TFSI kW147 CV200 An11/05 - 05/09

SKODA

ModelOCTAVIA II (1Z3) Tip1.8 TSI kW118 CV160 An06/07 - 04/13

ModelOCTAVIA II (1Z3) Tip2.0 FSI kW110 CV150 An11/04 - 10/08

ModelOCTAVIA II (1Z3) Tip2.0 TDI kW100 CV136 An02/04 - 05/10

ModelOCTAVIA II (1Z3) Tip2.0 TDI kW81 CV110 An03/10 - 06/13

ModelOCTAVIA II (1Z3) Tip2.0 TDI kW103 CV140 An11/05 - 05/10

ModelOCTAVIA II (1Z3) Tip2.0 TDI 16V kW103 CV140 An02/04 - 04/13

ModelOCTAVIA II Combi (1Z5) Tip1.8 TSI kW118 CV160 An06/07 - 04/13

ModelOCTAVIA II Combi (1Z5) Tip1.8 TSI 4x4 kW112 CV152 An03/09 - 02/13

ModelOCTAVIA II Combi (1Z5) Tip1.8 TSI 4x4 kW118 CV160 An11/08 - 02/13

ModelOCTAVIA II Combi (1Z5) Tip2.0 FSI kW110 CV150 An11/04 - 10/08

ModelOCTAVIA II Combi (1Z5) Tip2.0 FSI 4x4 kW110 CV150 An11/04 - 04/09

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI kW81 CV110 An03/10 - 06/13

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI kW103 CV140 An11/05 - 05/10

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI 16V kW100 CV136 An02/04 - 05/10

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI 16V kW103 CV140 An02/04 - 05/13

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI 16V 4x4 kW103 CV140 An05/10 - 02/13

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI 4x4 kW81 CV110 An05/11 - 02/13

ModelOCTAVIA II Combi (1Z5) Tip2.0 TDI 4x4 kW103 CV140 An07/06 - 05/10

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.0 TSI kW85 CV115 An05/16

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.2 TSI kW81 CV110 An05/15 - 02/17

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.2 TSI kW63 CV86 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.2 TSI kW77 CV105 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.4 TSI kW110 CV150 An08/14

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.4 TSI kW103 CV140 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.4 TSI G-TEC kW81 CV110 An11/13

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 kW81 CV110 An01/14

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 TDI kW85 CV115 An02/17

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 TDI kW81 CV110 An05/13

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 TDI kW66 CV90 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 TDI kW77 CV105 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 TDI 4x4 kW81 CV110 An05/15

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.6 TDI 4x4 kW77 CV105 An09/14

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.8 TSI kW132 CV180 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip1.8 TSI 4x4 kW132 CV180 An09/14

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TDI kW105 CV143 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TDI kW110 CV150 An11/12

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TDI / TDI RS 4x4 kW135 CV184 An05/13

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TDI 4x4 kW110 CV150 An09/14

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TDI RS kW135 CV184 An05/13

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TSI RS kW180 CV245 An02/17

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TSI RS kW162 CV220 An05/13

ModelOCTAVIA III (5E3, NL3, NR3) Tip2.0 TSI RS kW169 CV230 An05/15

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.0 TSI kW85 CV115 An05/16

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.2 TSI kW81 CV110 An05/15 - 02/17

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.2 TSI kW63 CV86 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.2 TSI kW77 CV105 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.4 TSI kW110 CV150 An08/14

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.4 TSI kW103 CV140 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.4 TSI G-TEC kW81 CV110 An11/13

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 kW81 CV110 An01/14

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 TDI kW85 CV115 An02/17

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 TDI kW81 CV110 An05/13

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 TDI kW66 CV90 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 TDI kW77 CV105 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 TDI 4x4 kW81 CV110 An05/15

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.6 TDI 4x4 kW77 CV105 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.8 TSI kW132 CV180 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip1.8 TSI 4x4 kW132 CV180 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TDI kW105 CV143 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TDI kW110 CV150 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TDI / TDI RS 4x4 kW135 CV184 An09/14

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TDI 4x4 kW110 CV150 An11/12

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TDI RS kW135 CV184 An05/13

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TSI RS kW180 CV245 An02/17

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TSI RS kW169 CV230 An05/15

ModelOCTAVIA III Combi (5E5, 5E6) Tip2.0 TSI RS kW162 CV220 An11/12

ModelSUPERB I (3U4) Tip1.8 T kW110 CV150 An12/01 - 03/08

ModelSUPERB I (3U4) Tip1.9 TDI kW85 CV115 An01/07 - 03/08

ModelSUPERB I (3U4) Tip1.9 TDI kW74 CV101 An08/02 - 10/05

ModelSUPERB I (3U4) Tip1.9 TDI kW77 CV105 An10/05 - 05/07

ModelSUPERB I (3U4) Tip1.9 TDI kW96 CV130 An12/01 - 03/08

ModelSUPERB I (3U4) Tip2.0 kW85 CV115 An12/01 - 03/08

ModelSUPERB II (3T4) Tip1.4 TSI kW92 CV125 An07/08 - 05/15

ModelSUPERB II (3T4) Tip1.9 TDI kW77 CV105 An03/08 - 11/10

ModelSUPERB II (3T4) Tip2.0 TDI kW103 CV140 An03/08 - 05/10

ModelSUPERB II Estate (3T5) Tip1.4 TSI kW92 CV125 An10/09 - 05/15

ModelYETI (5L) Tip1.2 TSI kW81 CV110 An05/15 - 12/17

ModelYETI (5L) Tip1.2 TSI kW77 CV105 An09/09 - 05/15

ModelYETI (5L) Tip1.4 TSI kW92 CV125 An05/15 - 12/17

ModelYETI (5L) Tip1.4 TSI kW90 CV122 An06/10 - 05/15

ModelYETI (5L) Tip1.4 TSI 4x4 kW110 CV150 An05/15 - 12/17

ModelYETI (5L) Tip1.6 kW81 CV110 An04/14 - 12/17

ModelYETI (5L) Tip1.6 TDI kW77 CV105 An11/10 - 05/15

ModelYETI (5L) Tip1.8 TSI 4x4 kW118 CV160 An05/09 - 12/17

ModelYETI (5L) Tip1.8 TSI 4x4 kW112 CV152 An11/09 - 12/17

ModelYETI (5L) Tip2.0 TDI kW110 CV150 An05/15 - 12/17

ModelYETI (5L) Tip2.0 TDI kW81 CV110 An11/09 - 12/17

ModelYETI (5L) Tip2.0 TDI kW103 CV140 An11/11 - 12/17

ModelYETI (5L) Tip2.0 TDI 4x4 kW103 CV140 An05/09 - 12/17

ModelYETI (5L) Tip2.0 TDI 4x4 kW110 CV150 An05/15 - 12/17

ModelYETI (5L) Tip2.0 TDI 4x4 kW125 CV170 An11/09 - 05/15

ModelYETI (5L) Tip2.0 TDI 4x4 kW81 CV110 An11/09 - 12/17

VW

ModelBEETLE (5C1, 5C2) Tip1.2 TSI kW77 CV105 An07/11 - 07/19

ModelBEETLE (5C1, 5C2) Tip1.2 TSI 16V kW77 CV105 An12/14 - 07/19

ModelBEETLE (5C1, 5C2) Tip1.4 TSI kW118 CV160 An10/11 - 07/16

ModelBEETLE (5C1, 5C2) Tip1.4 TSI kW110 CV150 An12/14 - 07/19

ModelBEETLE (5C1, 5C2) Tip1.6 TDI kW77 CV105 An10/11 - 07/16

ModelBEETLE (5C1, 5C2) Tip2.0 TDI kW103 CV140 An04/11 - 07/16

ModelBEETLE (5C1, 5C2) Tip2.0 TDI kW81 CV110 An06/14 - 09/18

ModelBEETLE (5C1, 5C2) Tip2.0 TDI kW110 CV150 An07/14 - 09/18

ModelBEETLE (5C1, 5C2) Tip2.0 TSI kW147 CV200 An04/11 - 07/16

ModelBEETLE (5C1, 5C2) Tip2.0 TSI kW155 CV211 An12/12 - 07/19

ModelBEETLE (5C1, 5C2) Tip2.0 TSI kW162 CV220 An12/14 - 09/18

ModelBEETLE (5C1, 5C2) Tip2.5 kW125 CV170 An04/11 - 07/19

ModelBEETLE Convertible (5C7, 5C8) Tip1.2 TSI kW77 CV105 An12/11 - 07/19

ModelBEETLE Convertible (5C7, 5C8) Tip1.2 TSI 16V kW77 CV105 An12/14 - 07/19

ModelBEETLE Convertible (5C7, 5C8) Tip1.4 TSI kW118 CV160 An12/11 - 07/16

ModelBEETLE Convertible (5C7, 5C8) Tip1.4 TSI kW110 CV150 An12/14 - 09/18

ModelBEETLE Convertible (5C7, 5C8) Tip1.6 TDI kW77 CV105 An12/11 - 07/16

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TDI kW103 CV140 An04/12 - 07/16

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TDI kW81 CV110 An06/14 - 09/18

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TDI kW110 CV150 An09/14 - 09/18

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TSI kW147 CV200 An12/11 - 07/16

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TSI kW155 CV210 An12/12 - 07/19

ModelBEETLE Convertible (5C7, 5C8) Tip2.0 TSI kW162 CV220 An12/14 - 09/18

ModelBEETLE Convertible (5C7, 5C8) Tip2.5 kW125 CV170 An12/11 - 07/16

ModelCADDY ALLTRACK Box (SAA) Tip1.0 TSI kW75 CV102 An11/15

ModelCADDY ALLTRACK Box (SAA) Tip1.2 TSI kW62 CV84 An06/15

ModelCADDY ALLTRACK Box (SAA) Tip1.4 TGI CNG kW81 CV110 An06/15

ModelCADDY ALLTRACK Box (SAA) Tip1.4 TSI kW92 CV125 An05/15

ModelCADDY ALLTRACK Box (SAA) Tip2.0 TDI kW55 CV75 An05/15

ModelCADDY ALLTRACK Box (SAA) Tip2.0 TDI kW75 CV102 An05/15

ModelCADDY ALLTRACK Box (SAA) Tip2.0 TDI kW110 CV150 An05/15

ModelCADDY ALLTRACK Box (SAA) Tip2.0 TDI 4motion kW90 CV122 An05/15

ModelCADDY ALLTRACK Box (SAA) Tip2.0 TDI 4motion kW110 CV150 An11/15

ModelCADDY ALLTRACK Estate (SAB) Tip1.0 TSI kW75 CV102 An11/15

ModelCADDY ALLTRACK Estate (SAB) Tip1.2 TSI kW62 CV84 An06/15

ModelCADDY ALLTRACK Estate (SAB) Tip1.4 TGI CNG kW81 CV110 An06/15

ModelCADDY ALLTRACK Estate (SAB) Tip1.4 TSI kW92 CV125 An05/15

ModelCADDY ALLTRACK Estate (SAB) Tip2.0 TDI kW55 CV75 An05/15

ModelCADDY ALLTRACK Estate (SAB) Tip2.0 TDI kW75 CV102 An05/15

ModelCADDY ALLTRACK Estate (SAB) Tip2.0 TDI kW110 CV150 An05/15

ModelCADDY ALLTRACK Estate (SAB) Tip2.0 TDI 4motion kW90 CV122 An05/15

ModelCADDY ALLTRACK Estate (SAB) Tip2.0 TDI 4motion kW110 CV150 An11/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.2 TSI kW63 CV86 An09/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.2 TSI kW77 CV105 An09/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.4 kW55 CV75 An03/04 - 05/06

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.4 kW59 CV80 An05/06 - 08/10

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.6 kW75 CV102 An04/04 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.6 BiFuel kW75 CV102 An05/11 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.6 TDI kW55 CV75 An08/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.6 TDI kW75 CV102 An08/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.9 TDI kW77 CV105 An04/04 - 08/10

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.9 TDI kW55 CV75 An09/05 - 08/10

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip1.9 TDI 4motion kW77 CV105 An11/08 - 08/10

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 EcoFuel kW80 CV109 An04/06 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 SDI kW51 CV70 An03/04 - 08/10

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW125 CV170 An05/12 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW81 CV110 An08/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW103 CV140 An09/07 - 08/10

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI kW62 CV85 An11/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 16V kW103 CV140 An11/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 16V 4motion kW103 CV140 An11/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 4motion kW81 CV110 An08/10 - 05/15

ModelCADDY III Box (2KA, 2KH, 2CA, 2CH) Tip2.0 TDI 4motion kW62 CV85 An12/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.2 TSI kW63 CV86 An09/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.2 TSI kW77 CV105 An09/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.4 kW55 CV75 An03/04 - 05/06

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.4 kW59 CV80 An05/06 - 08/10

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.6 kW75 CV102 An04/04 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.6 BiFuel kW75 CV102 An05/11 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.6 TDI kW55 CV75 An08/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.6 TDI kW75 CV102 An08/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.9 TDI kW77 CV105 An04/04 - 08/10

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.9 TDI kW55 CV75 An09/05 - 08/10

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip1.9 TDI 4motion kW77 CV105 An05/08 - 08/10

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 EcoFuel kW80 CV109 An04/06 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 SDI kW51 CV70 An03/04 - 08/10

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI kW125 CV170 An05/12 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI kW81 CV110 An08/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI kW103 CV140 An09/07 - 08/10

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI 16V kW103 CV140 An11/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI 16V 4motion kW103 CV140 An11/10 - 05/15

ModelCADDY III Estate (2KB, 2KJ, 2CB, 2CJ) Tip2.0 TDI 4motion kW81 CV110 An08/10 - 05/15

ModelCADDY IV Box (SAA, SAH) Tip1.0 TSI kW75 CV102 An11/15

ModelCADDY IV Box (SAA, SAH) Tip1.2 TSI kW62 CV84 An06/15

ModelCADDY IV Box (SAA, SAH) Tip1.4 TGI CNG kW81 CV110 An06/15

ModelCADDY IV Box (SAA, SAH) Tip1.4 TSI kW92 CV125 An05/15

ModelCADDY IV Box (SAA, SAH) Tip1.6 TDI kW75 CV102 An05/15

ModelCADDY IV Box (SAA, SAH) Tip1.6 TDI kW55 CV75 An05/15 - 11/17

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI kW55 CV75 An05/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI kW75 CV102 An05/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI kW103 CV140 An05/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI kW110 CV150 An05/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI 4motion kW90 CV122 An05/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI 4motion kW103 CV140 An05/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI 4motion kW81 CV110 An05/15 - 05/16

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI 4motion kW55 CV75 An11/15

ModelCADDY IV Box (SAA, SAH) Tip2.0 TDI 4motion kW110 CV150 An11/15

ModelCADDY IV Estate (SAB, SAJ) Tip1.0 TSI kW75 CV102 An11/15

ModelCADDY IV Estate (SAB, SAJ) Tip1.2 TSI kW62 CV84 An06/15

ModelCADDY IV Estate (SAB, SAJ) Tip1.4 TGI CNG kW81 CV110 An06/15

ModelCADDY IV Estate (SAB, SAJ) Tip1.4 TSI kW92 CV125 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip1.6 TDI kW75 CV102 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip1.6 TDI kW55 CV75 An05/15 - 11/17

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI kW55 CV75 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI kW75 CV102 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI kW103 CV140 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI kW110 CV150 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI 4motion kW90 CV122 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI 4motion kW103 CV140 An05/15

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI 4motion kW81 CV110 An05/15 - 05/16

ModelCADDY IV Estate (SAB, SAJ) Tip2.0 TDI 4motion kW110 CV150 An11/15

ModelEOS (1F7, 1F8) Tip1.4 TSI kW118 CV160 An05/08 - 08/15

ModelEOS (1F7, 1F8) Tip1.4 TSI kW90 CV122 An11/07 - 08/15

ModelEOS (1F7, 1F8) Tip1.6 FSI kW85 CV115 An06/06 - 05/08

ModelEOS (1F7, 1F8) Tip2.0 FSI kW110 CV150 An03/06 - 05/08

ModelEOS (1F7, 1F8) Tip2.0 TDI kW103 CV140 An06/06 - 05/08

ModelEOS (1F7, 1F8) Tip2.0 TDI kW100 CV136 An11/10 - 08/15

ModelEOS (1F7, 1F8) Tip2.0 TDI 16V kW103 CV140 An05/08 - 08/15

ModelEOS (1F7, 1F8) Tip2.0 TFSI kW147 CV200 An03/06 - 08/15

ModelGOLF ALLTRACK VII (BA5, BV5) Tip1.6 TDI 4motion kW81 CV110 An12/14

ModelGOLF ALLTRACK VII (BA5, BV5) Tip1.8 TSI 4motion kW132 CV180 An12/14

ModelGOLF ALLTRACK VII (BA5, BV5) Tip2.0 TDI 4motion kW135 CV184 An12/14

ModelGOLF ALLTRACK VII (BA5, BV5) Tip2.0 TDI 4motion kW110 CV150 An12/14 - 05/18

ModelGOLF PLUS (5M1, 521) Tip1.4 16V kW55 CV75 An01/05 - 11/06

ModelGOLF PLUS (5M1, 521) Tip1.4 16V kW59 CV80 An05/06 - 12/13

ModelGOLF PLUS (5M1, 521) Tip1.4 FSI kW66 CV90 An07/05 - 11/06

ModelGOLF PLUS (5M1, 521) Tip1.4 TSI kW103 CV140 An05/06 - 06/08

ModelGOLF PLUS (5M1, 521) Tip1.4 TSI kW90 CV122 An06/07 - 12/13

ModelGOLF PLUS (5M1, 521) Tip1.6 kW75 CV102 An05/05 - 12/13

ModelGOLF PLUS (5M1, 521) Tip1.6 FSI kW85 CV115 An12/04 - 05/08

ModelGOLF PLUS (5M1, 521) Tip1.6 MultiFuel kW75 CV102 An11/07 - 12/13

ModelGOLF PLUS (5M1, 521) Tip1.6 TDI kW77 CV105 An03/09 - 12/13

ModelGOLF PLUS (5M1, 521) Tip1.9 TDI kW77 CV105 An01/05 - 01/09

ModelGOLF PLUS (5M1, 521) Tip1.9 TDI kW66 CV90 An05/05 - 12/08

ModelGOLF PLUS (5M1, 521) Tip2.0 FSI kW110 CV150 An05/05 - 06/08

ModelGOLF PLUS (5M1, 521) Tip2.0 TDI kW81 CV110 An01/09 - 12/13

ModelGOLF PLUS (5M1, 521) Tip2.0 TDI kW96 CV131 An05/05 - 05/07

ModelGOLF PLUS (5M1, 521) Tip2.0 TDI kW100 CV136 An05/05 - 12/13

ModelGOLF PLUS (5M1, 521) Tip2.0 TDI kW103 CV140 An12/05 - 05/11

ModelGOLF PLUS (5M1, 521) Tip2.0 TDI 16V kW103 CV140 An01/05 - 12/13

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.0 TSI kW85 CV115 An05/15

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.2 TSI kW81 CV110 An04/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.2 TSI kW63 CV86 An05/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.4 TSI kW110 CV150 An02/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.4 TSI kW92 CV125 An04/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.4 TSI MultiFuel kW92 CV125 An04/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.5 TSI kW96 CV130 An05/17

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.5 TSI kW110 CV150 An05/17

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.6 kW81 CV110 An05/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.6 TDI kW66 CV90 An02/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.6 TDI kW81 CV110 An02/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip1.6 TDI kW85 CV115 An11/16

ModelGOLF SPORTSVAN (AM1, AN1) Tip2.0 TDI kW110 CV150 An02/14

ModelGOLF SPORTSVAN (AM1, AN1) Tip2.0 TDI kW81 CV110 An05/14 - 11/17

ModelGOLF V (1K1) Tip1.4 TSI kW103 CV140 An05/06 - 11/08

ModelGOLF V (1K1) Tip1.4 TSI kW90 CV122 An05/07 - 11/08

ModelGOLF V (1K1) Tip1.6 kW75 CV102 An01/04 - 11/08

ModelGOLF V (1K1) Tip1.6 FSI kW85 CV115 An10/03 - 07/08

ModelGOLF V (1K1) Tip1.9 TDI kW77 CV105 An10/03 - 11/08

ModelGOLF V (1K1) Tip1.9 TDI 4motion kW77 CV105 An08/04 - 11/08

ModelGOLF V (1K1) Tip2.0 kW85 CV116 An08/06 - 11/08

ModelGOLF V (1K1) Tip2.0 FSI kW110 CV150 An01/04 - 11/08

ModelGOLF V (1K1) Tip2.0 FSI 4motion kW110 CV150 An08/04 - 11/08

ModelGOLF V (1K1) Tip2.0 TDI kW100 CV136 An10/03 - 11/08

ModelGOLF V (1K1) Tip2.0 TDI kW103 CV140 An12/04 - 11/08

ModelGOLF V (1K1) Tip2.0 TDI 16V kW103 CV140 An10/03 - 11/08

ModelGOLF V (1K1) Tip2.0 TDI 16V 4motion kW103 CV140 An08/04 - 11/08

ModelGOLF V (1K1) Tip2.0 TDI 4motion kW103 CV140 An08/04 - 11/08

ModelGOLF V Variant (1K5) Tip1.4 TSI kW90 CV122 An06/07 - 07/09

ModelGOLF V Variant (1K5) Tip1.4 TSI kW103 CV140 An06/07 - 07/09

ModelGOLF V Variant (1K5) Tip1.4 TSI kW125 CV170 An06/07 - 07/09

ModelGOLF V Variant (1K5) Tip1.4 TSI kW118 CV160 An07/08 - 07/09

ModelGOLF V Variant (1K5) Tip1.9 TDI 4motion kW77 CV105 An01/08 - 07/09

ModelGOLF V Variant (1K5) Tip2.0 TDI kW100 CV136 An06/07 - 07/09

ModelGOLF V Variant (1K5) Tip2.0 TDI kW103 CV140 An06/07 - 07/09

ModelGOLF V Variant (1K5) Tip2.0 TDI 16V kW103 CV140 An06/07 - 07/09

ModelGOLF VI (5K1) Tip1.2 TSI kW63 CV86 An05/10 - 11/12

ModelGOLF VI (5K1) Tip1.2 TSI kW77 CV105 An11/08 - 11/12

ModelGOLF VI (5K1) Tip1.4 kW59 CV80 An10/08 - 11/12

ModelGOLF VI (5K1) Tip1.4 TSI kW90 CV122 An10/08 - 11/12

ModelGOLF VI (5K1) Tip1.4 TSI kW118 CV160 An10/08 - 11/12

ModelGOLF VI (5K1) Tip1.6 kW75 CV102 An10/08 - 11/12

ModelGOLF VI (5K1) Tip1.6 BiFuel kW75 CV102 An03/09 - 11/12

ModelGOLF VI (5K1) Tip1.6 MultiFuel kW75 CV102 An10/08 - 11/12

ModelGOLF VI (5K1) Tip1.6 TDI kW66 CV90 An02/09 - 11/12

ModelGOLF VI (5K1) Tip1.6 TDI kW77 CV105 An02/09 - 11/12

ModelGOLF VI (5K1) Tip2.0 TDI kW103 CV140 An10/08 - 05/13

ModelGOLF VI (5K1) Tip2.0 TDI kW81 CV110 An10/08 - 11/12

ModelGOLF VI (5K1) Tip2.0 TDI kW100 CV136 An10/08 - 11/12

ModelGOLF VI (5K1) Tip2.0 TDI 4motion kW103 CV140 An05/09 - 11/12

ModelGOLF VI (5K1) TipBlue E-Motion kW65 CV88 An12/10 - 11/13

ModelGOLF VI Convertible (517) Tip1.2 TSI kW77 CV105 An03/11 - 05/16

ModelGOLF VI Convertible (517) Tip1.2 TSI 16V kW77 CV105 An11/13 - 05/16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW118 CV160 An03/11 - 05/16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW90 CV122 An11/11 - 05/16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW92 CV125 An11/13 - 05/16

ModelGOLF VI Convertible (517) Tip1.4 TSI kW110 CV150 An11/13 - 05/16

ModelGOLF VI Convertible (517) Tip1.6 TDI kW77 CV105 An03/11 - 05/16

ModelGOLF VI Convertible (517) Tip2.0 GTI kW155 CV211 An05/12 - 05/16

ModelGOLF VI Convertible (517) Tip2.0 R kW195 CV265 An01/13 - 05/16

ModelGOLF VI Convertible (517) Tip2.0 TDI kW103 CV140 An11/11 - 05/16

ModelGOLF VI Convertible (517) Tip2.0 TDI kW81 CV110 An11/13 - 05/16

ModelGOLF VI Convertible (517) Tip2.0 TDI kW110 CV150 An11/13 - 05/16

ModelGOLF VI Variant (AJ5) Tip1.2 TSI kW77 CV105 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.4 kW59 CV80 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.4 TSI kW90 CV122 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.4 TSI kW118 CV160 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.6 kW75 CV102 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.6 TDI kW77 CV105 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.6 TDI kW66 CV90 An12/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip1.6 TDI 4motion kW77 CV105 An07/09 - 07/13

ModelGOLF VI Variant (AJ5) Tip2.0 TDI kW103 CV140 An07/09 - 07/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.0 TSI kW63 CV86 An01/17

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.0 TSI kW85 CV115 An05/15

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.0 TSI kW81 CV110 An11/16

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.2 TSI kW81 CV110 An04/14

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.2 TSI kW63 CV86 An08/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.2 TSI kW77 CV105 An11/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 GTE Hybrid kW110 CV150 An05/14

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TGI CNG kW81 CV110 An06/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TSI kW92 CV125 An05/14

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TSI kW110 CV150 An05/14

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TSI kW103 CV140 An08/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TSI kW90 CV122 An11/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TSI MultiFuel kW90 CV122 An04/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.4 TSI MultiFuel kW92 CV125 An12/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.5 TSI kW110 CV150 An04/17

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 kW81 CV110 An05/14

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 TDI kW81 CV110 An01/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 TDI kW66 CV90 An04/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 TDI kW77 CV105 An08/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 TDI kW85 CV115 An11/16

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 TDI 4motion kW81 CV110 An01/13

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip1.6 TDI 4motion kW77 CV105 An11/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip2.0 GTI Clubsport kW195 CV265 An02/16

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip2.0 TDI kW105 CV143 An08/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip2.0 TDI kW81 CV110 An11/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip2.0 TDI kW110 CV150 An11/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tip2.0 TDI 4motion kW110 CV150 An11/12

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tipe-Golf kW85 CV115 An03/14 - 02/17

ModelGOLF VII (5G1, BQ1, BE1, BE2) Tipe-Golf kW100 CV136 An12/16

ModelGOLF VII Variant (BA5, BV5) Tip1.0 TSI kW63 CV86 An01/17

ModelGOLF VII Variant (BA5, BV5) Tip1.0 TSI kW85 CV115 An05/15

ModelGOLF VII Variant (BA5, BV5) Tip1.0 TSI kW81 CV110 An11/16

ModelGOLF VII Variant (BA5, BV5) Tip1.2 TSI kW81 CV110 An04/14

ModelGOLF VII Variant (BA5, BV5) Tip1.2 TSI kW63 CV86 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.2 TSI kW77 CV105 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TGI CNG kW81 CV110 An09/13

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TSI kW90 CV122 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TSI kW103 CV140 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TSI kW92 CV125 An05/14

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TSI kW110 CV150 An05/14

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TSI MultiFuel kW90 CV122 An04/13

ModelGOLF VII Variant (BA5, BV5) Tip1.4 TSI MultiFuel kW92 CV125 An05/14

ModelGOLF VII Variant (BA5, BV5) Tip1.5 TSI kW110 CV150 An04/17

ModelGOLF VII Variant (BA5, BV5) Tip1.5 TSI kW96 CV130 An07/17

ModelGOLF VII Variant (BA5, BV5) Tip1.6 kW81 CV110 An05/14

ModelGOLF VII Variant (BA5, BV5) Tip1.6 TDI kW66 CV90 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.6 TDI kW77 CV105 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.6 TDI kW81 CV110 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.6 TDI kW85 CV115 An11/16

ModelGOLF VII Variant (BA5, BV5) Tip1.6 TDI 4motion kW77 CV105 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip1.6 TDI 4motion kW81 CV110 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip2.0 GTD kW135 CV184 An01/15

ModelGOLF VII Variant (BA5, BV5) Tip2.0 TDI kW110 CV150 An04/13

ModelGOLF VII Variant (BA5, BV5) Tip2.0 TDI kW81 CV110 An05/13

ModelGOLF VII Variant (BA5, BV5) Tip2.0 TDI 4motion kW110 CV150 An04/13 - 05/18

ModelJETTA III (1K2) Tip1.4 TSI kW90 CV122 An05/07 - 10/10

ModelJETTA III (1K2) Tip1.4 TSI kW103 CV140 An07/06 - 10/10

ModelJETTA III (1K2) Tip1.4 TSI kW125 CV170 An07/06 - 10/10

ModelJETTA III (1K2) Tip1.4 TSI kW118 CV160 An07/08 - 10/10

ModelJETTA III (1K2) Tip1.6 FSI kW85 CV115 An09/05 - 10/10

ModelJETTA III (1K2) Tip2.0 FSI kW110 CV150 An08/05 - 10/10

ModelJETTA III (1K2) Tip2.0 TDI kW100 CV136 An09/05 - 10/10

ModelJETTA III (1K2) Tip2.0 TDI kW103 CV140 An10/05 - 10/10

ModelJETTA III (1K2) Tip2.0 TDI 16V kW103 CV140 An08/05 - 10/10

ModelJETTA III (1K2) Tip2.5 kW110 CV150 An01/06 - 10/10

ModelJETTA IV (162, 163, AV3, AV2) Tip1.4 TSI kW110 CV150 An04/11

ModelJETTA IV (162, 163, AV3, AV2) Tip1.4 TSI kW92 CV125 An08/14

ModelJETTA IV (162, 163, AV3, AV2) Tip1.4 TSI kW110 CV150 An08/14

ModelJETTA IV (162, 163, AV3, AV2) Tip1.8 TSI kW125 CV170 An07/14

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 kW85 CV115 An06/10 - 12/17

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 TDI kW103 CV140 An02/11

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 TDI kW110 CV150 An07/14

ModelJETTA IV (162, 163, AV3, AV2) Tip2.0 TDI kW81 CV110 An10/10

ModelSCIROCCO (137, 138) Tip1.4 TSI kW118 CV160 An05/08 - 11/17

ModelSCIROCCO (137, 138) Tip1.4 TSI kW110 CV150 An07/15 - 11/17

ModelSCIROCCO (137, 138) Tip1.4 TSI kW90 CV122 An08/08 - 11/17

ModelSCIROCCO (137, 138) Tip1.4 TSI kW92 CV125 An11/13 - 11/17

ModelSCIROCCO (137, 138) Tip2.0 TDI kW103 CV140 An08/08 - 11/17

ModelSCIROCCO (137, 138) Tip2.0 TDI kW100 CV136 An11/10 - 11/17

ModelSCIROCCO (137, 138) Tip2.0 TDI kW110 CV150 An11/13 - 11/17

ModelTOURAN (1T1, 1T2) Tip1.4 TSI kW103 CV140 An02/06 - 05/10

ModelTOURAN (1T1, 1T2) Tip1.4 TSI EcoFuel kW110 CV150 An05/09 - 05/10

ModelTOURAN (1T1, 1T2) Tip1.6 kW75 CV102 An07/03 - 05/10

ModelTOURAN (1T1, 1T2) Tip1.6 FSI kW85 CV115 An02/03 - 01/07

ModelTOURAN (1T1, 1T2) Tip1.9 TDI kW74 CV100 An02/03 - 05/04

ModelTOURAN (1T1, 1T2) Tip1.9 TDI kW77 CV105 An08/03 - 05/10

ModelTOURAN (1T1, 1T2) Tip1.9 TDI kW66 CV90 An11/04 - 05/10

ModelTOURAN (1T1, 1T2) Tip2.0 EcoFuel kW80 CV109 An02/06 - 05/09

ModelTOURAN (1T1, 1T2) Tip2.0 FSI kW110 CV150 An10/03 - 01/07

ModelTOURAN (1T1, 1T2) Tip2.0 TDI kW100 CV136 An02/03 - 05/10

ModelTOURAN (1T1, 1T2) Tip2.0 TDI kW103 CV140 An12/05 - 05/10

ModelTOURAN (1T1, 1T2) Tip2.0 TDI 16V kW103 CV140 An08/03 - 05/10

ModelTOURAN (1T3) Tip1.2 TSI kW77 CV105 An05/10 - 05/15

ModelTOURAN (1T3) Tip1.4 TSI kW103 CV140 An05/10 - 05/15

ModelTOURAN (1T3) Tip1.4 TSI kW125 CV170 An05/10 - 05/15

ModelTOURAN (1T3) Tip1.4 TSI EcoFuel kW110 CV150 An05/10 - 05/15

ModelTOURAN (1T3) Tip1.6 TDI kW66 CV90 An05/10 - 05/15

ModelTOURAN (1T3) Tip1.6 TDI kW77 CV105 An05/10 - 05/15

ModelTOURAN (1T3) Tip2.0 TDI kW130 CV177 An01/13 - 05/15

ModelTOURAN (1T3) Tip2.0 TDI kW125 CV170 An05/10 - 01/13

ModelTOURAN (1T3) Tip2.0 TDI kW103 CV140 An05/10 - 05/15

ModelTOURAN (1T3) Tip2.0 TDI kW81 CV110 An11/10 - 05/15

Coduri OE

Coduri OE compatibile

AUDI 1K0615301K

AUDI 1K0615301T

AUDI 5C0615301A

AUDI 5Q0615301H

SEAT 1K0615301K

SEAT 1K0615301T

SKODA 1K0615301K

SKODA 1K0615301T

VW 1K0615301K

VW 1K0615301T

VW 5C0615301A

VW 5C0615301D

VW 5Q0615301H

VW (FAW) L16D615301A
