08.9759.20

Bromsskiva

Lägg till i favoriterna

Jämförda produkter

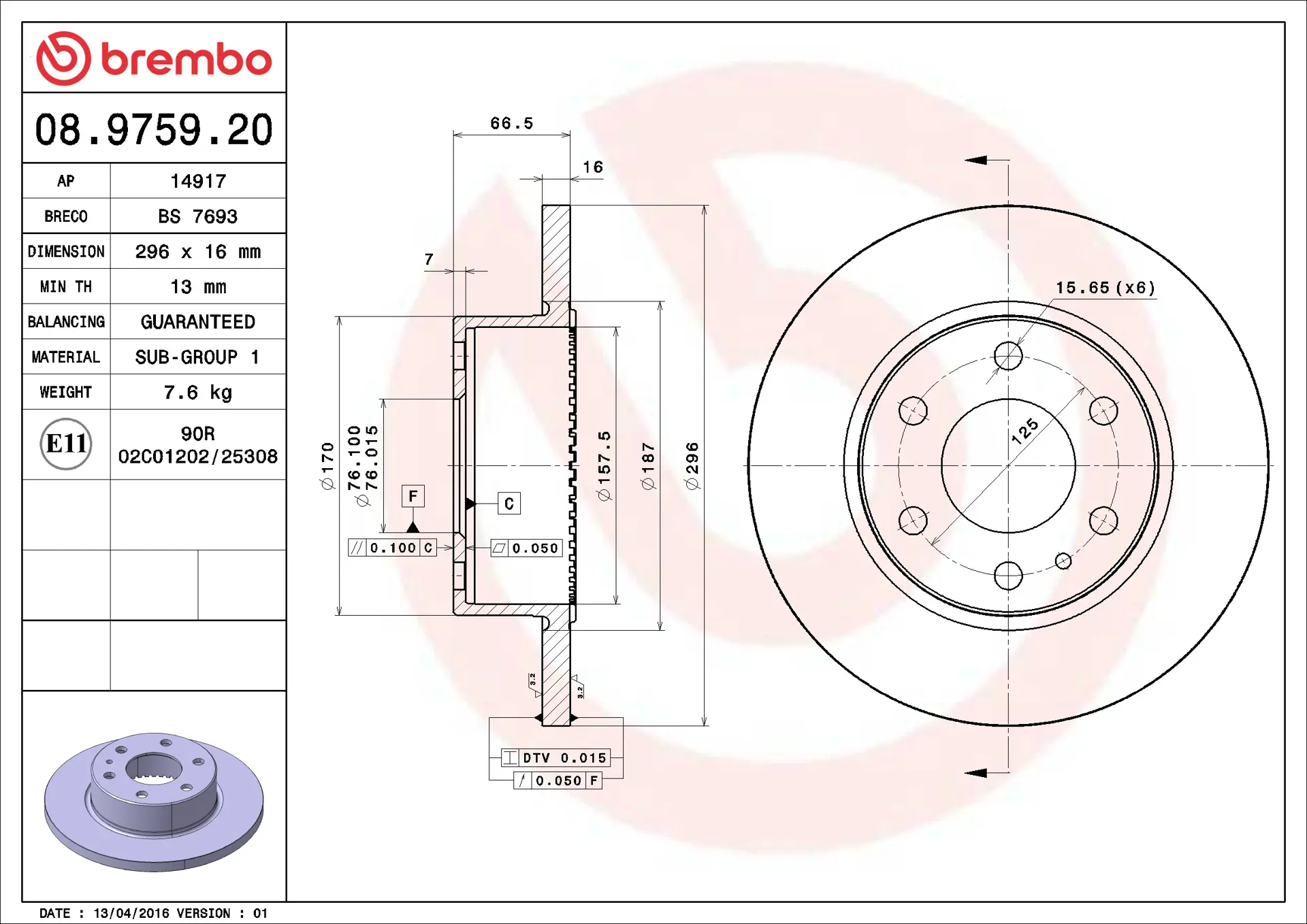

Tekniska data för bromsskivan

Axel

Bak

Diameter

296 mm

Total höjd (A)

69,5 mm

Centreringsdiameter (B)

76 mm

Antal hål (C)

6

Tjocklek (TH)

16 mm

Min. tjocklek

13 mm

Enhet per låda

2

EAN-kod

8020584975923

Skivor

Märkeskoder

Brembo 08.9759.20

AP 14917

Breco BS 7693

Ladda ner datablad

08.9759.20

08.9759.20

08.9759.20

Kompatibla fordon

IVECO

ModellDAILY CITYS Bus Typ50C/E kW80 CV109 År10/15 - 10/16

ModellDAILY CITYS Bus Typ50C14G Natural Power kW100 CV136 År10/15 - 10/16

ModellDAILY IV Box Body/Estate Typ35C10, 35S10 kW70 CV95 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P kW85 CV116 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P kW130 CV176 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,... kW100 CV136 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ40C10 V kW70 CV95 År05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C12 kW85 CV116 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C10, 35S10 kW70 CV95 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C12, 35S12 kW85 CV116 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35S14, 35S14 /P kW100 CV136 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C18, 35S18 kW130 CV176 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C10 kW70 CV95 År05/06 - 08/11

ModellDAILY LINE Bus Typ50C/E kW80 CV109 År10/15

ModellDAILY LINE Bus Typ50C14 Natural Power kW100 CV136 År06/14

ModellDAILY V Box Body/Estate Typ29L11 V, 35C11 V, 35S11 V, 40C11 V kW78 CV106 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ29L13 V, 35C13 V, 35S13 V, 40C13 V, 40S13 V kW93 CV126 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V kW107 CV146 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ35S, 35C Electric kW60 CV82 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ26L11, 26L11D, 35C11D, 35S11, 40C11 kW78 CV106 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L13, 29L13D, 35C13D, 40C13 kW93 CV126 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L15 V, 35S15, 35C15L V, 40C15L V, 50C15L V kW107 CV146 År09/11 - 02/14

ModellDAILY VI Box Typ33S11, 35S11, 35C11 kW78 CV106 År03/14 - 04/16

ModellDAILY VI Box Typ33S13, 35S13, 35C13 kW93 CV126 År03/14 - 04/16

ModellDAILY VI Box Typ33S14, 35S14, 35C14 kW100 CV136 År04/16

ModellDAILY VI Box Typ33S15, 35S15, 35C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Box Typ35S15, 35C15, 40C15, 50C15, 65C15, 70C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Box Typ35S17, 35C17, 40C17, 50C17, 55C17, 65C17, 70C17 kW125 CV170 År03/14 - 04/16

ModellDAILY VI Box Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 CV205 År03/14

ModellDAILY VI Box TypNatural Power 35S14, 35C14, 40C14, 50C14, 65C14, 70C14 kW100 CV136 År03/14

ModellDAILY VI Box Body/Estate Typ35S15, 35C15, 40C15, 50C15 kW110 CV150 År04/16

ModellDAILY VI Box Body/Estate TypNatural Power 35S14, 35C14, 40C14, 50C14 kW100 CV136 År04/16

ModellDAILY VI Platform/Chassis Typ33S11, 35S11, 35C11 kW78 CV106 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S13, 35S13, 35C13 kW93 CV126 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S14, 35S14, 35C14 kW100 CV136 År04/16

ModellDAILY VI Platform/Chassis Typ33S15, 35S15, 35C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 65C15, 70C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S17, 35C17, 40C17, 45S17,45C17, 50C17, 55C17, 65C17,... kW125 CV170 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S17, 55S17 4x4 kW125 CV170 År08/15 - 04/16

ModellDAILY VI Platform/Chassis Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 CV205 År03/14

ModellDAILY VI Platform/Chassis TypNaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14,... kW100 CV136 År03/14

OE-nummer

Kompatibla OE-nummer

IVECO 2996027

IVECO 7186309
