09.9758.10

Bromsskiva

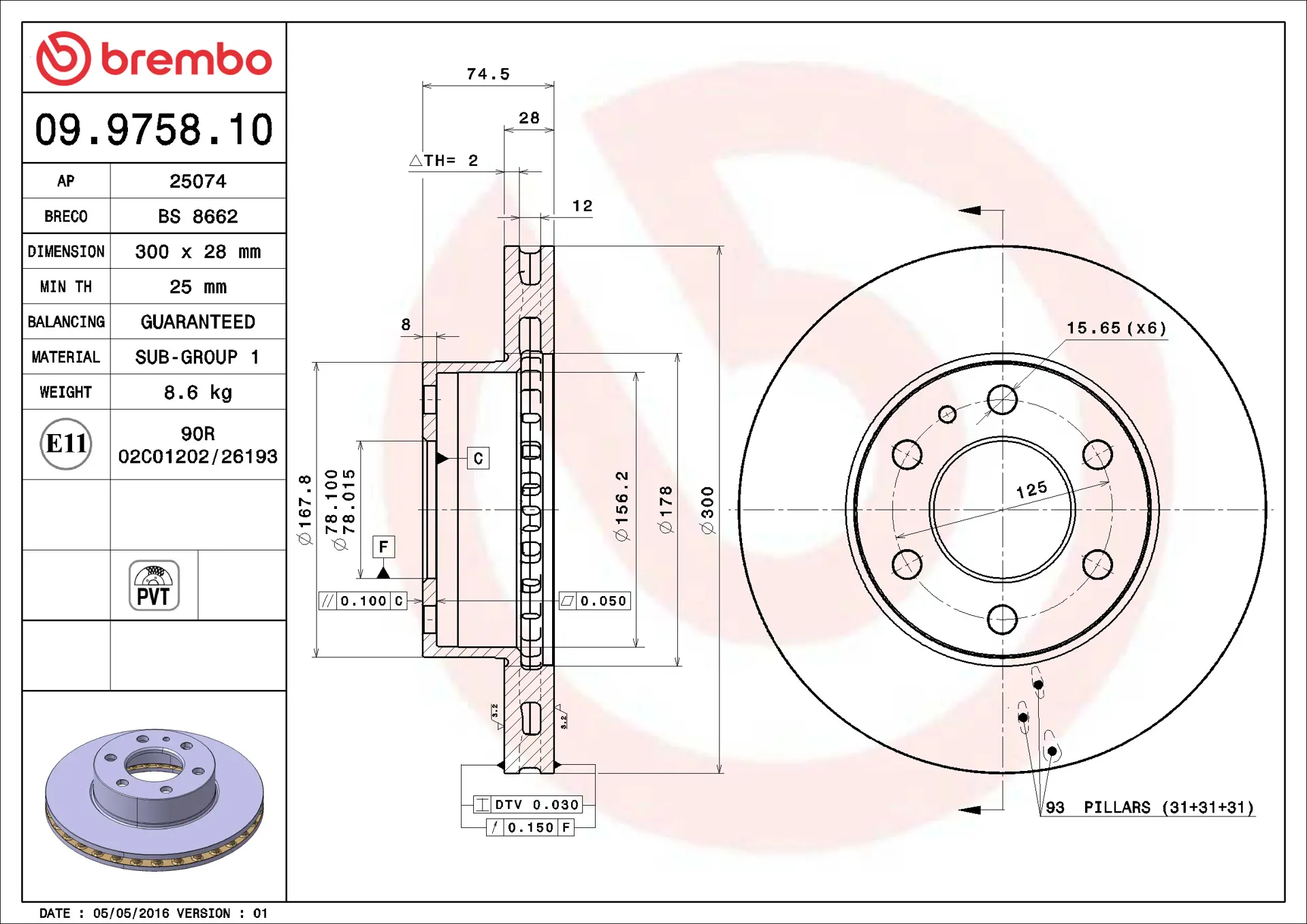

Tekniska data för bromsskivan

Axel

Fram

Diameter

300 mm

Total höjd (A)

74,5 mm

Centreringsdiameter (B)

78 mm

Antal hål (C)

Tjocklek (TH)

28 mm

Min. tjocklek

25 mm

Enhet per låda

EAN-kod

8020584975817

Märkeskoder

Brembo 09.9758.10

AP 25074

Breco BS 8662

Var man köper

Ladda ner datablad

Tekniska specifikationer

Ventilerad PVT-skiva

PVT-skivan använder stift i stället för flikar i ventilationskammaren. Skivans kylkapacitet förbättrar hållfastheten mot värmesprickor med över 40 %.

Läs mer

Kompatibla fordon

IVECO

ModellDAILY CITYS Bus Typ50C/E kW80 CV109 År10/15 - 10/16

ModellDAILY CITYS Bus Typ50C14G Natural Power kW100 CV136 År10/15 - 10/16

ModellDAILY CITYS Bus Typ50C15 kW107 CV146 År06/14 - 10/16

ModellDAILY IV Box Body/Estate Typ29L10 V kW70 CV95 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ29L12 V, 29L12 V/P kW85 CV116 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P kW100 CV136 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C10, 35S10 kW70 CV95 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C11 V, 35S11 V kW78 CV106 År07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P kW85 CV116 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P kW93 CV126 År07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P kW100 CV136 År07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P kW103 CV140 År09/09 - 08/11

ModellDAILY IV Box Body/Estate Typ35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P kW125 CV170 År07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P kW130 CV176 År05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,... kW100 CV136 År05/06 - 08/11

ModellDAILY IV Bus Typ35S14, 35S14 /P kW100 CV136 År05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C11 K, 35C11 DK, 35S11 K, 35S11 DK kW78 CV106 År07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C13 K, 35C13 DK, 35S13 K, 35S13 DK kW93 CV126 År07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C14 K, 35C14 DK, 35S14 K, 35S14 DK kW103 CV140 År09/09 - 08/11

ModellDAILY IV Dump Truck Typ35C17 K, 35C17 DK, 35S17 K, 35S17 DK kW125 CV170 År07/07 - 08/11

ModellDAILY IV Dump Truck Typ35S14 K, 35S14 DK kW100 CV136 År07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ29L10 kW70 CV95 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ29L12 kW85 CV116 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ29L14 kW100 CV136 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C10, 35S10 kW70 CV95 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C11, 35S11, 35S11 D, 35S11 /P kW78 CV106 År07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C12, 35S12 kW85 CV116 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P kW93 CV126 År07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,... kW100 CV136 År07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P kW103 CV140 År09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35S14, 35S14 /P kW100 CV136 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D kW125 CV170 År07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C18, 35S18 kW130 CV176 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35S17 W, 35S17 WD kW125 CV170 År07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C10 kW70 CV95 År05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ55S17 W, 55S17 WD kW125 CV170 År07/07 - 08/11

ModellDAILY LINE Bus Typ40C15, 50C15, 60C15 kW107 CV146 År06/14 - 10/16

ModellDAILY LINE Bus Typ50C/E kW80 CV109 År10/15

ModellDAILY LINE Bus Typ50C14 Natural Power kW100 CV136 År06/14

ModellDAILY V Box Body/Estate Typ29L11 V, 35C11 V, 35S11 V, 40C11 V kW78 CV106 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ29L13 V, 35C13 V, 35S13 V, 40C13 V, 40S13 V kW93 CV126 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V kW107 CV146 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ35C17 V, 35S17 V, 40C17 V, 45C17 V, 50C17 V, 60C17 V kW125 CV170 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ35C21 V, 35S21 V, 40C21 V, 45C21 V, 50C21 V kW150 CV204 År09/11 - 02/14

ModellDAILY V Box Body/Estate Typ35S, 35C Electric kW60 CV82 År09/11 - 02/14

ModellDAILY V Dump Truck Typ35C11K, 35S11DKP kW78 CV106 År09/11 - 02/14

ModellDAILY V Dump Truck Typ35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K kW107 CV146 År09/11 - 02/14

ModellDAILY V Dump Truck Typ35C17K, 35S17DKP, 50C17K, 65C17DK 70C17K kW125 CV170 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ26L11, 26L11D, 35C11D, 35S11, 40C11 kW78 CV106 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L13, 29L13D, 35C13D, 40C13 kW93 CV126 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L15 V, 35S15, 35C15L V, 40C15L V, 50C15L V kW107 CV146 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C15, 35C15D, 35S15, 40C15, 45C15, 50C15, 60C15,65C15,... kW107 CV146 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C17, 35C17D, 35S17, 40C17, 45C17, 50C17, 60C17, 70C17 kW125 CV170 År09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 70C21 kW150 CV205 År09/11 - 02/14

ModellDAILY VI Box Typ33S11, 35S11, 35C11 kW78 CV106 År03/14 - 04/16

ModellDAILY VI Box Typ33S13, 35S13, 35C13 kW93 CV126 År03/14 - 04/16

ModellDAILY VI Box Typ33S14, 35S14, 35C14 kW100 CV136 År04/16

ModellDAILY VI Box Typ33S15, 35S15, 35C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Box Typ35S15, 35C15, 40C15, 50C15, 65C15, 70C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Box Typ35S17, 35C17, 40C17, 50C17, 55C17, 65C17, 70C17 kW125 CV170 År03/14 - 04/16

ModellDAILY VI Box Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 CV205 År03/14

ModellDAILY VI Box TypNatural Power 35S14, 35C14, 40C14, 50C14, 65C14, 70C14 kW100 CV136 År03/14

ModellDAILY VI Box Body/Estate Typ35S15, 35C15, 40C15, 50C15 kW110 CV150 År04/16

ModellDAILY VI Box Body/Estate Typ40C15, 50C15, 65C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Box Body/Estate TypNatural Power 35S14, 35C14, 40C14, 50C14 kW100 CV136 År04/16

ModellDAILY VI Platform/Chassis Typ33S11, 35S11, 35C11 kW78 CV106 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S13, 35S13, 35C13 kW93 CV126 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S14, 35S14, 35C14 kW100 CV136 År04/16

ModellDAILY VI Platform/Chassis Typ33S15, 35S15, 35C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 65C15, 70C15 kW107 CV146 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S17, 35C17, 40C17, 45S17,45C17, 50C17, 55C17, 65C17,... kW125 CV170 År03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S17, 55S17 4x4 kW125 CV170 År08/15 - 04/16

ModellDAILY VI Platform/Chassis Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 CV205 År03/14

ModellDAILY VI Platform/Chassis TypNaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14,... kW100 CV136 År03/14

OE-nummer

Kompatibla OE-nummer

IVECO 2996131

IVECO 504121605

IVECO 5801639518
