08.9759.10

Scheiben

In den Produktvergleich

Zu Favoriten hinzufügen

Meine Favoriten

Verglichene Produkte

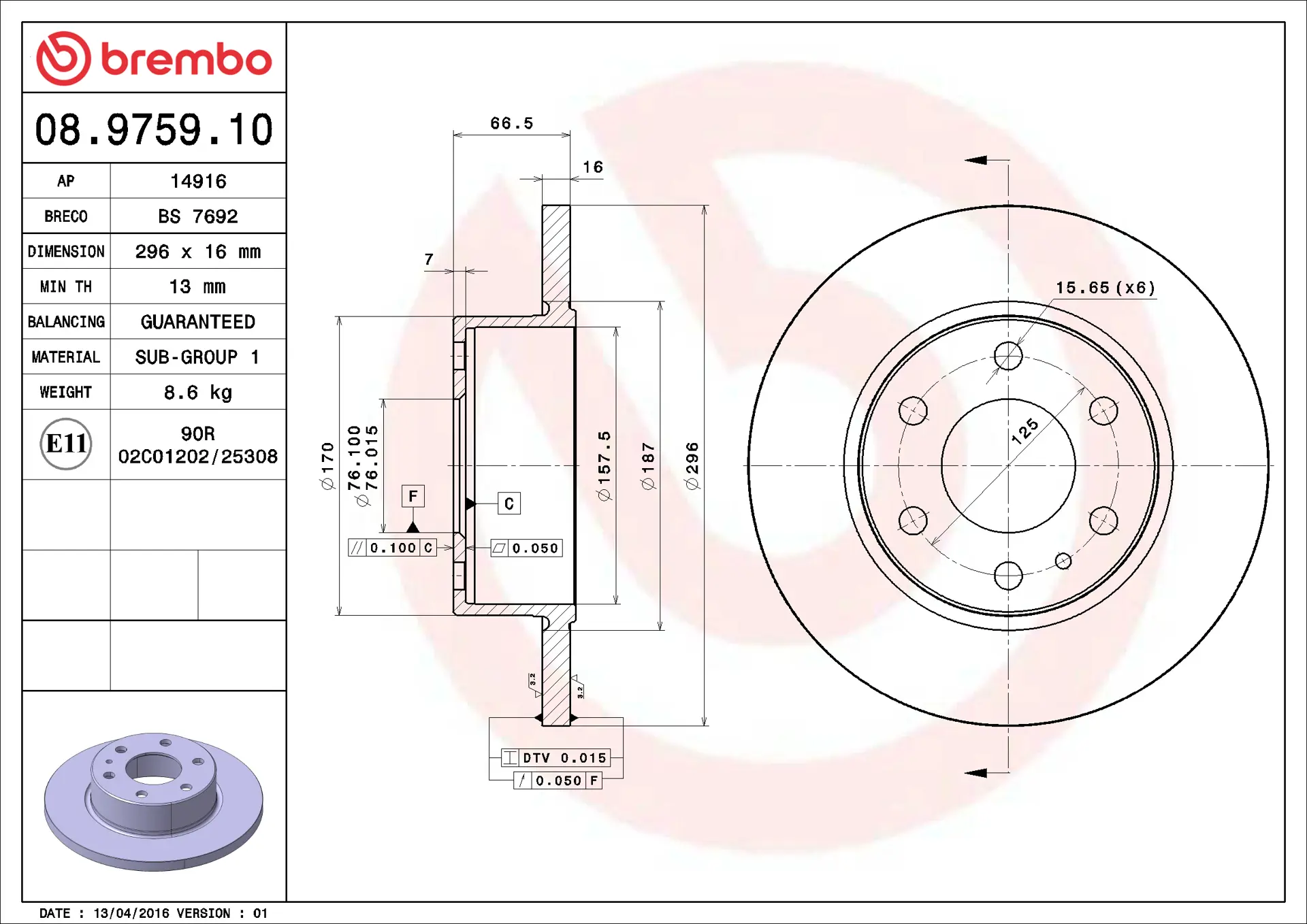

Technische Daten der Scheiben

Achse

Hinten

Durchmesser

296 mm

Gesamthöhe (A)

69,5 mm

Nabendurchmesser (B)

76 mm

Anzahl der Bohrungen (C)

6

Stärke (TH)

16 mm

Minimalstärke

13 mm

Stück pro Karton

2

EAN-Code

8020584975916

Scheiben

Herstellernummer

Brembo 08.9759.10

AP 14916

Breco BS 7692

Download Datenblatt

08.9759.10

08.9759.10

08.9759.10

Kompat. Fahrzg.

IVECO

ModellDAILY IV Box Body / Estate Typ29L10 V kW70 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ29L12 V, 29L12 V/P kW85 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P kW100 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35C10, 35S10 kW70 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35C11 V, 35S11 V kW78 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P kW85 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P kW130 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,... kW100 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ40C10 V kW70 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ40C11 V kW78 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C13 V, 40C13 V/P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C14 GV, 40C14 GV/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C14 V, 40C14 V/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C17 V, 40C17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ45C17 V, 45C17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ50C14 GV, 50C14 GV/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ50C14 V, 50C14 V/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ50C17 V, 50C17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C11 K, 35C11 DK, 35S11 K, 35S11 DK kW78 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C12 kW85 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ35C13 K, 35C13 DK, 35S13 K, 35S13 DK kW93 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C14 K, 35C14 DK, 35S14 K, 35S14 DK kW103 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C17 K, 35C17 DK, 35S17 K, 35S17 DK kW125 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35S14 K, 35S14 DK kW100 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ40C14 K, 40C14 DK kW103 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ40C17 K, 40C17 DK kW125 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ50C14 K, 50C14 DK kW103 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ50C17 K, 50C17 DK kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ29L10 kW70 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ29L12 kW85 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ29L14 kW100 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C10, 35S10 kW70 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C11, 35S11, 35S11 D, 35S11 /P kW78 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C12, 35S12 kW85 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,... kW100 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35S14, 35S14 /P kW100 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C18, 35S18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35S17 W, 35S17 WD kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C10 kW70 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C11, 40C11 D kW78 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C13, 40C13 /P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14 G, 40C14 G/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14, 40C14 /P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C17, 40C17 /P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ45C14, 45C14 /P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ45C17, 45C17 /P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14 G, 50C14 G/P, 50C14 GD, 50C14 GD/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14, 50C14 /P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C17, 50C17 /P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ55S17 W, 55S17 WD kW125 Baujahr07/07 - 08/11

OE-Teilenr.

Passende OE-Teilenummern

IVECO 2996028

IVECO 7188080
