09.9760.10

Scheiben

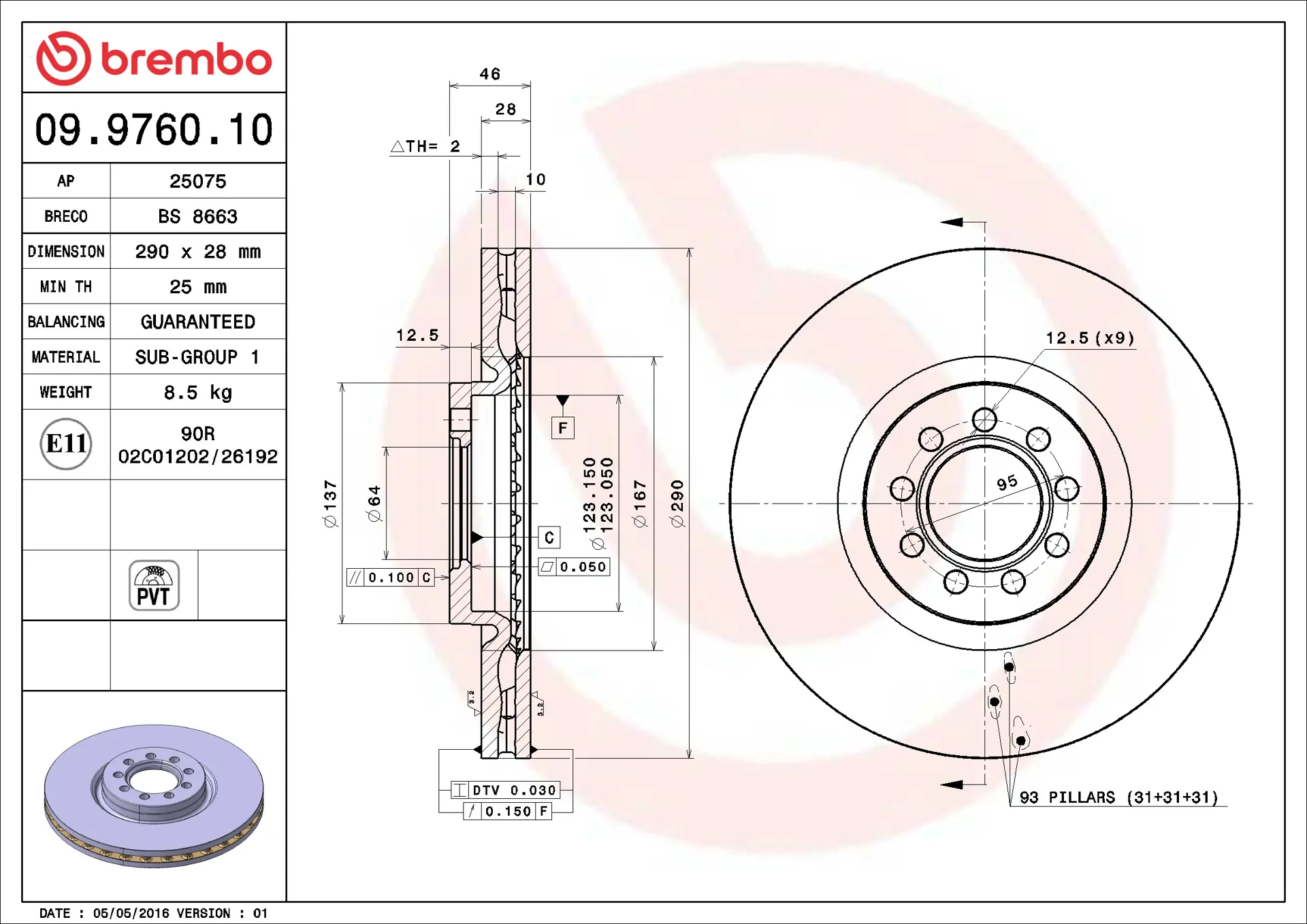

Technische Daten der Scheiben

Achse

Vorne

Durchmesser

290 mm

Gesamthöhe (A)

46 mm

Nabendurchmesser (B)

64 mm

Anzahl der Bohrungen (C)

Stärke (TH)

28 mm

Minimalstärke

25 mm

Stück pro Karton

EAN-Code

8020584976012

Herstellernummer

Brembo 09.9760.10

AP 25075

Breco BS 8663

Händlersuche

Download Datenblatt

Technische Daten

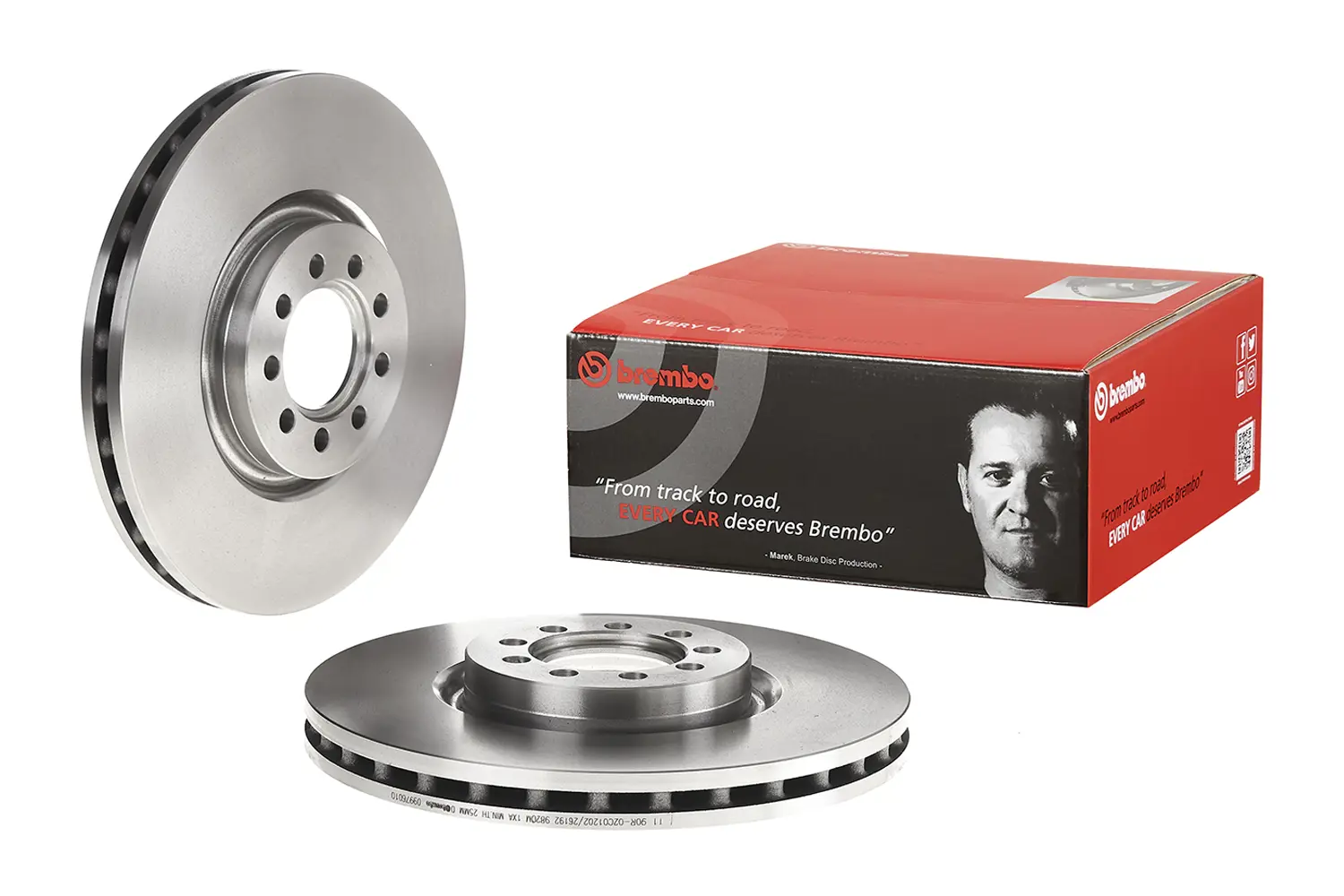

PVT-Bremsscheibe

Die PVT-Bremsscheibe hat für die Innenbelüftung Noppen anstelle von radialen Luftkanälen. Das verbessert die Kühlung um 40 % und reduziert die Bildung von Oberflächenrissen.

IVECO

ModellDAILY IV Bus Typ35S14, 35S14 /P kW100 CV136 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C10 K kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C11 K, 35C11 DK, 35S11 K, 35S11 DK kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C12 kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C13 K, 35C13 DK, 35S13 K, 35S13 DK kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C14 K, 35C14 DK, 35S14 K, 35S14 DK kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Dump Truck Typ35C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C17 K, 35C17 DK, 35S17 K, 35S17 DK kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ40C14 K, 40C14 DK kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Dump Truck Typ40C17 K, 40C17 DK kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ50C14 K, 50C14 DK kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Dump Truck Typ50C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ50C17 K, 50C17 DK kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ50C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C10, 35S10 kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C11, 35S11, 35S11 D, 35S11 /P kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C12, 35S12 kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,... kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35S14, 35S14 /P kW100 CV136 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C18, 35S18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C11, 40C11 D kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C12 kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C13, 40C13 /P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14 G, 40C14 G/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14, 40C14 /P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ40C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C17, 40C17 /P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ45C14, 45C14 /P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ45C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ45C17, 45C17 /P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ45C18, 45C18 /P, 45C18 D, 45C18 D/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14 G, 50C14 G/P, 50C14 GD, 50C14 GD/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14, 50C14 /P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ50C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ50C17, 50C17 /P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ35C10, 35S10 kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ35C11 V, 35S11 V kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Van Typ35C15 V, 35C15 V/P kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,... kW100 CV136 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ40C10 V kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ40C11 V kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ40C12 V, 40C14 V/P kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ40C13 V, 40C13 V/P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ40C14 GV, 40C14 GV/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ40C14 V, 40C14 V/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Van Typ40C15 V, 40C15 V/P kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ40C17 V, 40C17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ40C18 V, 40C18 V/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ45C15 V kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ45C17 V, 45C17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ45C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ50C14 GV, 50C14 GV/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ50C14 V, 50C14 V/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Van Typ50C15 V, 50C15 V/P kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Van Typ50C17 V, 50C17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Van Typ50C18 V, 50C18 V/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY V Dump Truck Typ35C11K, 35S11DKP kW78 CV106 Baujahr09/11 - 02/14

ModellDAILY V Dump Truck Typ35C13K, 35C13DKP kW93 CV126 Baujahr09/11 - 02/14

ModellDAILY V Dump Truck Typ35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K kW107 CV146 Baujahr09/11 - 02/14

ModellDAILY V Dump Truck Typ35C17K, 35S17DKP, 50C17K, 65C17DK 70C17K kW125 CV170 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ26L11, 26L11D, 35C11D, 35S11, 40C11 kW78 CV106 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L13, 29L13D, 35C13D, 40C13 kW93 CV126 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L15 V, 35S15, 35C15L V, 40C15L V, 50C15L V kW107 CV146 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C15, 35C15D, 35S15, 40C15, 45C15, 50C15, 60C15,65C15,... kW107 CV146 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C17, 35C17D, 35S17, 40C17, 45C17, 50C17, 60C17, 70C17 kW125 CV170 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 70C21 kW150 CV205 Baujahr09/11 - 02/14

ModellDAILY V Van Typ29L11 V, 35C11 V, 35S11 V, 40C11 V kW78 CV106 Baujahr09/11 - 02/14

ModellDAILY V Van Typ29L13 V, 35C13 V, 35S13 V, 40C13 V, 40S13 V kW93 CV126 Baujahr09/11 - 02/14

ModellDAILY V Van Typ29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V kW107 CV146 Baujahr09/11 - 02/14

ModellDAILY V Van Typ35C15 V, 40C15 V, 45C15 V, 50C15 V, 60C15 V,65C15 V kW107 CV146 Baujahr09/11 - 02/14

ModellDAILY V Van Typ35C17 V, 35S17 V, 40C17 V, 45C17 V, 50C17 V, 60C17 V kW125 CV170 Baujahr09/11 - 02/14

ModellDAILY V Van Typ35C21 V, 35S21 V, 40C21 V, 45C21 V, 50C21 V kW150 CV204 Baujahr09/11 - 02/14

ModellDAILY VI Platform/Chassis Typ33S11, 35S11, 35C11 kW78 CV106 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S13, 35S13, 35C13 kW93 CV126 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S14, 35S14, 35C14 kW100 CV136 Baujahr04/16

ModellDAILY VI Platform/Chassis Typ33S15, 35S15, 35C15 kW107 CV146 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 65C15, 70C15 kW107 CV146 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S17, 35C17, 40C17, 45S17,45C17, 50C17, 55C17, 65C17,... kW125 CV170 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 CV205 Baujahr03/14

ModellDAILY VI Platform/Chassis TypNaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14,... kW100 CV136 Baujahr03/14

ModellDAILY VI Van Typ35S15, 35C15, 40C15, 50C15, 65C15, 70C15 kW107 CV146 Baujahr03/14 - 04/16

ModellDAILY VI Van Typ35S17, 35C17, 40C17, 50C17, 55C17, 65C17, 70C17 kW125 CV170 Baujahr03/14 - 04/16

ModellDAILY VI Van Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 CV205 Baujahr03/14

ModellDAILY VI Van Typ40C15, 50C15, 65C15 kW107 CV146 Baujahr03/14 - 04/16

ModellDAILY VI Van TypNatural Power 35S14, 35C14, 40C14, 50C14, 65C14, 70C14 kW100 CV136 Baujahr03/14

OE-Teilenr.

Passende OE-Teilenummern

IVECO 2996121

IVECO 504121612

NAC IVECO (NAVECO) 5801341021
