09.9761.10

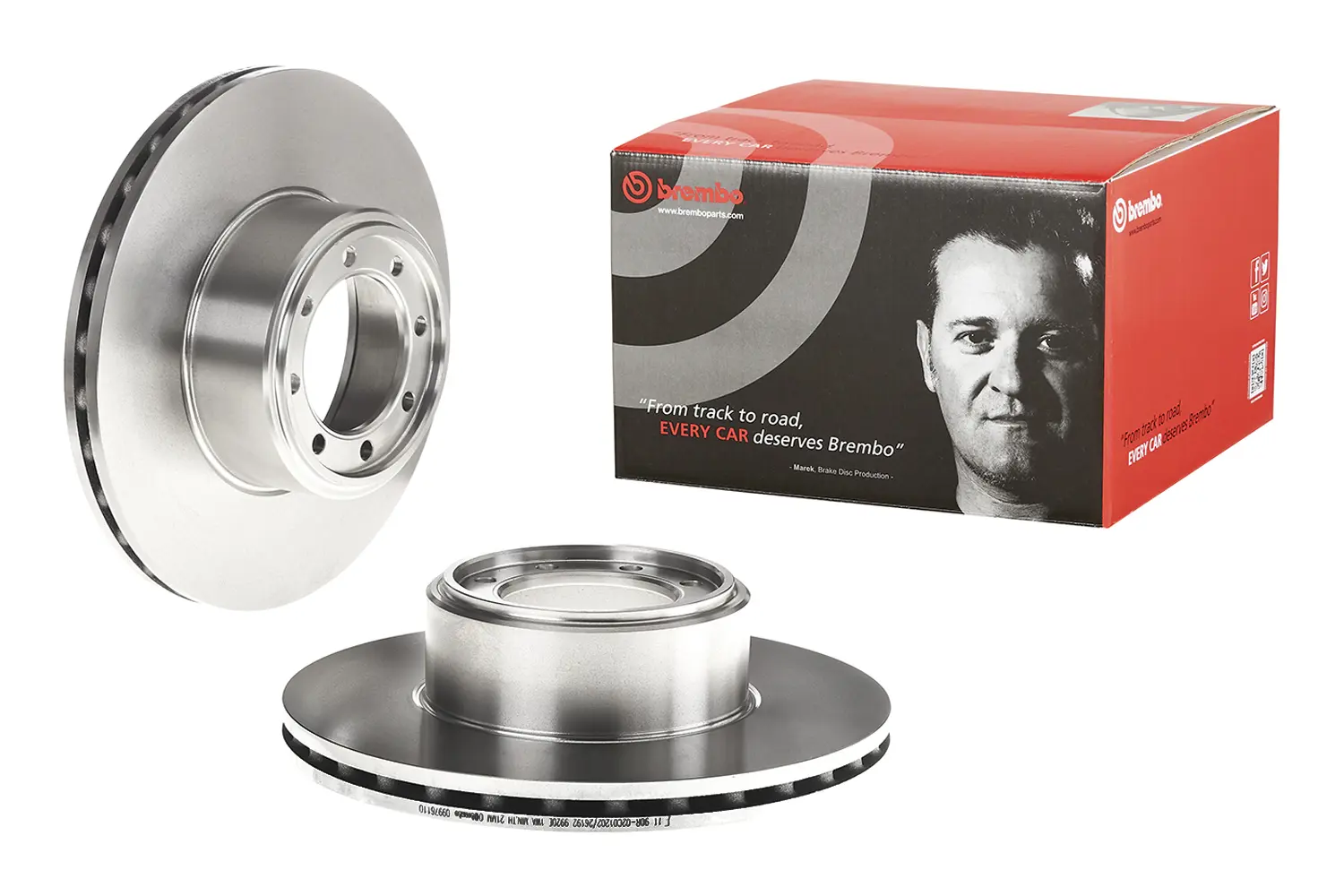

Scheiben

In den Produktvergleich

Zu Favoriten hinzufügen

Meine Favoriten

Verglichene Produkte

Technische Daten der Scheiben

Achse

Hinten

Durchmesser

294 mm

Gesamthöhe (A)

83,5 mm

Nabendurchmesser (B)

128 mm

Anzahl der Bohrungen (C)

8

Stärke (TH)

24 mm

Minimalstärke

21 mm

Stück pro Karton

2

EAN-Code

8020584976111

Scheiben

Herstellernummer

Brembo 09.9761.10

AP 25077

Breco BS 8665

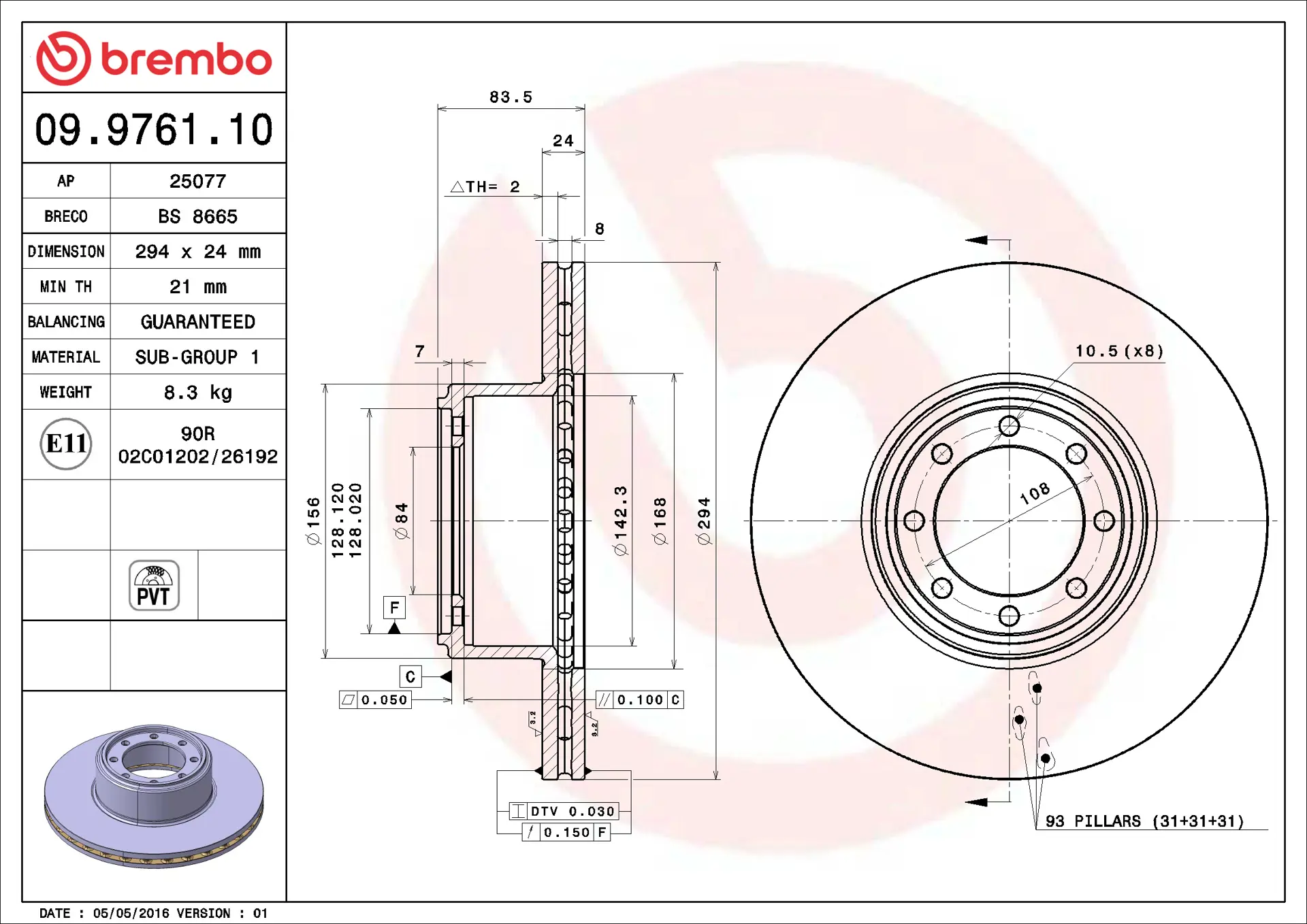

Download Datenblatt

09.9761.10

09.9761.10

09.9761.10

Kompat. Fahrzg.

IVECO

ModellDAILY IV Box Body/Estate Typ35C10, 35S10 kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C11 V, 35S11 V kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Box Body/Estate Typ35C15 V, 35C15 V/P kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ40C11 V kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ40C12 V, 40C14 V/P kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ40C13 V, 40C13 V/P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ40C14 GV, 40C14 GV/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ40C14 V, 40C14 V/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Box Body/Estate Typ40C15 V, 40C15 V/P kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ40C17 V, 40C17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ40C18 V, 40C18 V/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ45C15 V kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ45C17 V, 45C17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ45C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ50C14 GV, 50C14 GV/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ50C14 V, 50C14 V/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Box Body/Estate Typ50C15 V, 50C15 V/P kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Box Body/Estate Typ50C17 V, 50C17 V/P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Box Body/Estate Typ50C18 V, 50C18 V/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Bus Typ35S14, 35S14 /P kW100 CV136 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C10 K kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C11 K, 35C11 DK, 35S11 K, 35S11 DK kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C12 kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C13 K, 35C13 DK, 35S13 K, 35S13 DK kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C14 K, 35C14 DK, 35S14 K, 35S14 DK kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Dump Truck Typ35C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35C17 K, 35C17 DK, 35S17 K, 35S17 DK kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ35C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ35S14 K, 35S14 DK kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ40C14 K, 40C14 DK kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Dump Truck Typ40C17 K, 40C17 DK kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ50C14 K, 50C14 DK kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Dump Truck Typ50C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Dump Truck Typ50C17 K, 50C17 DK kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Dump Truck Typ50C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C10, 35S10 kW70 CV95 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C11, 35S11, 35S11 D, 35S11 /P kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C12, 35S12 kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,... kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ35C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C18, 35S18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35S17 W, 35S17 WD kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C11, 40C11 D kW78 CV106 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C12 kW85 CV116 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C13, 40C13 /P kW93 CV126 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14 G, 40C14 G/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14, 40C14 /P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ40C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C17, 40C17 /P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ45C14, 45C14 /P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ45C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ45C17, 45C17 /P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ45C18, 45C18 /P, 45C18 D, 45C18 D/P kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14 G, 50C14 G/P, 50C14 GD, 50C14 GD/P kW100 CV136 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14, 50C14 /P kW103 CV140 Baujahr09/09 - 08/11

ModellDAILY IV Platform/Chassis Typ50C15 kW107 CV146 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ50C17, 50C17 /P kW125 CV170 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C18 kW130 CV176 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ55S17 W, 55S17 WD kW125 CV170 Baujahr07/07 - 08/11

OE-Teilenr.

Passende OE-Teilenummern

IVECO 2996033

IVECO 7188210
