09.9761.60

Scheiben

In den Produktvergleich

Zu Favoriten hinzufügen

Meine Favoriten

Verglichene Produkte

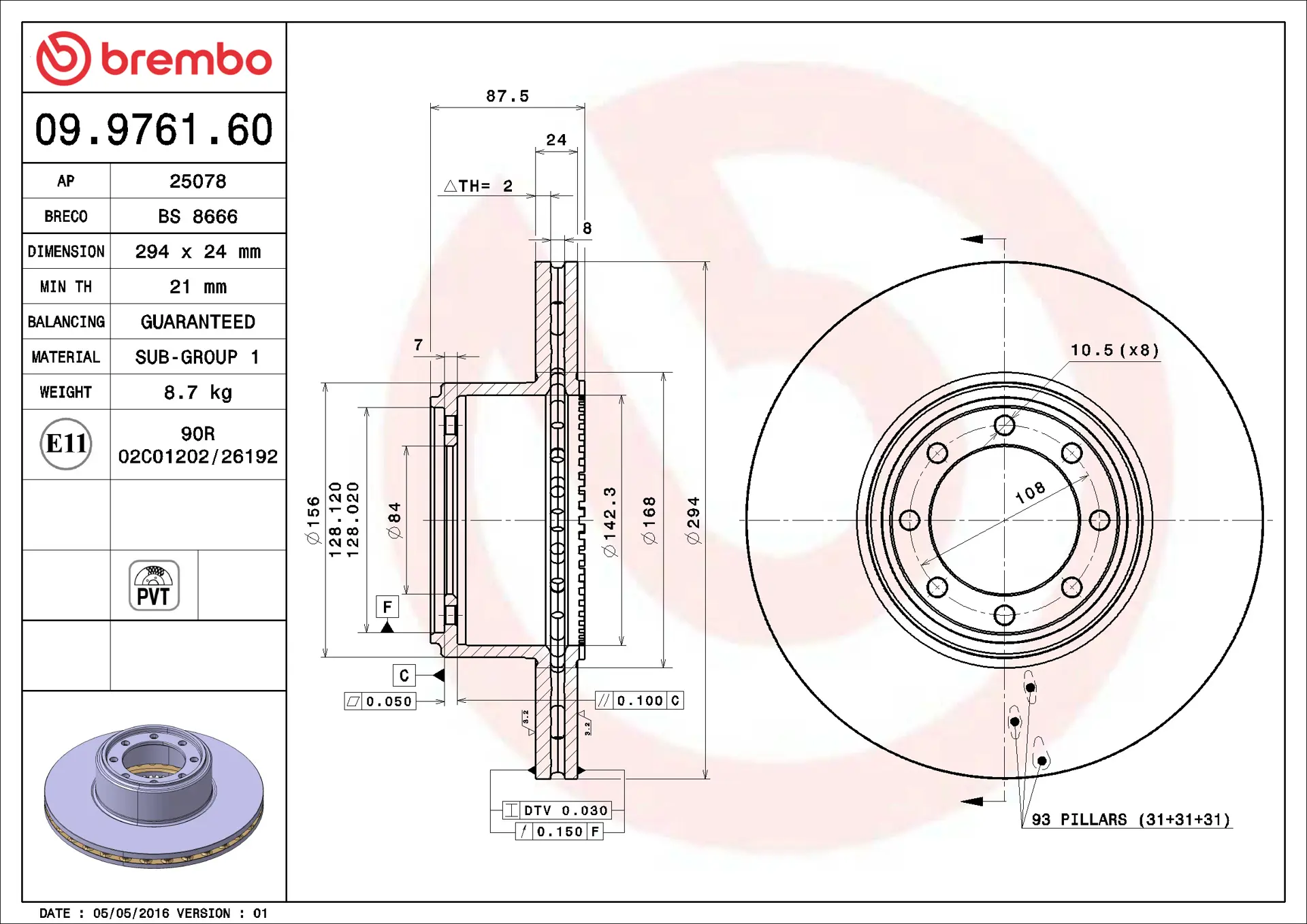

Technische Daten der Scheiben

Achse

Hinten

Durchmesser

294 mm

Gesamthöhe (A)

87,5 mm

Nabendurchmesser (B)

128 mm

Anzahl der Bohrungen (C)

8

Stärke (TH)

24 mm

Minimalstärke

21 mm

Stück pro Karton

2

EAN-Code

8020584976166

Scheiben

Herstellernummer

Brembo 09.9761.60

AP 25078

Breco BS 8666

Download Datenblatt

09.9761.60

09.9761.60

09.9761.60

Kompat. Fahrzg.

IVECO

ModellDAILY IV Box Body / Estate Typ35C10, 35S10 kW70 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35C11 V, 35S11 V kW78 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P kW85 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C15 V, 35C15 V/P kW107 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P kW130 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ40C11 V kW78 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C12 V, 40C14 V/P kW85 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ40C13 V, 40C13 V/P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C14 GV, 40C14 GV/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C14 V, 40C14 V/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C15 V, 40C15 V/P kW107 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ40C17 V, 40C17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ40C18 V, 40C18 V/P kW130 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ45C15 V kW107 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ45C17 V, 45C17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ45C18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ50C14 GV, 50C14 GV/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ50C14 V, 50C14 V/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ50C15 V, 50C15 V/P kW107 Baujahr05/06 - 08/11

ModellDAILY IV Box Body / Estate Typ50C17 V, 50C17 V/P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Box Body / Estate Typ50C18 V, 50C18 V/P kW130 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ35C10 K kW70 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ35C11 K, 35C11 DK, 35S11 K, 35S11 DK kW78 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C12 kW85 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ35C13 K, 35C13 DK, 35S13 K, 35S13 DK kW93 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C14 K, 35C14 DK, 35S14 K, 35S14 DK kW103 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C15 kW107 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ35C17 K, 35C17 DK, 35S17 K, 35S17 DK kW125 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ35C18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ35S14 K, 35S14 DK kW100 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ40C14 K, 40C14 DK kW103 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ40C17 K, 40C17 DK kW125 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ50C14 K, 50C14 DK kW103 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ50C15 kW107 Baujahr05/06 - 08/11

ModellDAILY IV Dumptruck Typ50C17 K, 50C17 DK kW125 Baujahr07/07 - 08/11

ModellDAILY IV Dumptruck Typ50C18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C10, 35S10 kW70 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C11, 35S11, 35S11 D, 35S11 /P kW78 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C12, 35S12 kW85 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,... kW100 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C15 kW107 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ35C18, 35S18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ35S17 W, 35S17 WD kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C11, 40C11 D kW78 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C12 kW85 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C13, 40C13 /P kW93 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14 G, 40C14 G/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C14, 40C14 /P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C15 kW107 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ40C17, 40C17 /P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ40C18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ45C14, 45C14 /P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ45C15 kW107 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ45C17, 45C17 /P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ45C18, 45C18 /P, 45C18 D, 45C18 D/P kW130 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14 G, 50C14 G/P, 50C14 GD, 50C14 GD/P kW100 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C14, 50C14 /P kW103 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C15 kW107 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ50C17, 50C17 /P kW125 Baujahr07/07 - 08/11

ModellDAILY IV Platform/Chassis Typ50C18 kW130 Baujahr05/06 - 08/11

ModellDAILY IV Platform/Chassis Typ55S17 W, 55S17 WD kW125 Baujahr07/07 - 08/11

ModellDAILY V Box Body / Estate Typ29L11 V, 35C11 V, 35S11 V, 40C11 V kW78 Baujahr09/11 - 02/14

ModellDAILY V Box Body / Estate Typ29L13 V, 35C13 V, 35S13 V, 40C13 V, 40S13 V kW93 Baujahr09/11 - 02/14

ModellDAILY V Box Body / Estate Typ29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V kW107 Baujahr09/11 - 02/14

ModellDAILY V Box Body / Estate Typ35C15 V, 40C15 V, 45C15 V, 50C15 V, 60C15 V,65C15 V kW107 Baujahr09/11 - 02/14

ModellDAILY V Box Body / Estate Typ35C17 V, 35S17 V, 40C17 V, 45C17 V, 50C17 V, 60C17 V kW125 Baujahr09/11 - 02/14

ModellDAILY V Box Body / Estate Typ35C21 V, 35S21 V, 40C21 V, 45C21 V, 50C21 V kW150 Baujahr09/11 - 02/14

ModellDAILY V Dumptruck Typ35C11K, 35S11DKP kW78 Baujahr09/11 - 02/14

ModellDAILY V Dumptruck Typ35C13K, 35C13DKP kW93 Baujahr09/11 - 02/14

ModellDAILY V Dumptruck Typ35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K kW107 Baujahr09/11 - 02/14

ModellDAILY V Dumptruck Typ35C17K, 35S17DKP, 50C17K, 65C17DK 70C17K kW125 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ26L11, 26L11D, 35C11D, 35S11, 40C11 kW78 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L13, 29L13D, 35C13D, 40C13 kW93 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ29L15 V, 35S15, 35C15L V, 40C15L V, 50C15L V kW107 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C15, 35C15D, 35S15, 40C15, 45C15, 50C15, 60C15,65C15,... kW107 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C17, 35C17D, 35S17, 40C17, 45C17, 50C17, 60C17, 70C17 kW125 Baujahr09/11 - 02/14

ModellDAILY V Platform/Chassis Typ35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 70C21 kW150 Baujahr09/11 - 02/14

ModellDAILY VI Box Typ33S11, 35S11, 35C11 kW78 Baujahr03/14 - 04/16

ModellDAILY VI Box Typ33S13, 35S13, 35C13 kW93 Baujahr03/14 - 04/16

ModellDAILY VI Box Typ33S14, 35S14, 35C14 kW100 Baujahr04/16

ModellDAILY VI Box Typ33S15, 35S15, 35C15 kW107 Baujahr03/14 - 04/16

ModellDAILY VI Box Typ35S15, 35C15, 40C15, 50C15, 65C15, 70C15 kW107 Baujahr03/14 - 04/16

ModellDAILY VI Box Typ35S17, 35C17, 40C17, 50C17, 55C17, 65C17, 70C17 kW125 Baujahr03/14 - 04/16

ModellDAILY VI Box Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 Baujahr03/14

ModellDAILY VI Box TypNatural Power 35S14, 35C14, 40C14, 50C14, 65C14, 70C14 kW100 Baujahr03/14

ModellDAILY VI Platform/Chassis Typ33S11, 35S11, 35C11 kW78 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S13, 35S13, 35C13 kW93 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ33S14, 35S14, 35C14 kW100 Baujahr04/16

ModellDAILY VI Platform/Chassis Typ33S15, 35S15, 35C15 kW107 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 65C15, 70C15 kW107 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S17, 35C17, 40C17, 45S17,45C17, 50C17, 55C17, 65C17,... kW125 Baujahr03/14 - 04/16

ModellDAILY VI Platform/Chassis Typ35S21, 35C21, 40C21, 50C21, 65C21, 70C21 kW150 Baujahr03/14

ModellDAILY VI Platform/Chassis TypNaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14,... kW100 Baujahr03/14

OE-Teilenr.

Passende OE-Teilenummern

IVECO 2996043

IVECO 7186485
