Xtra Line

Brake disc Xtra 09.5457.3X

Save vehicle in the list

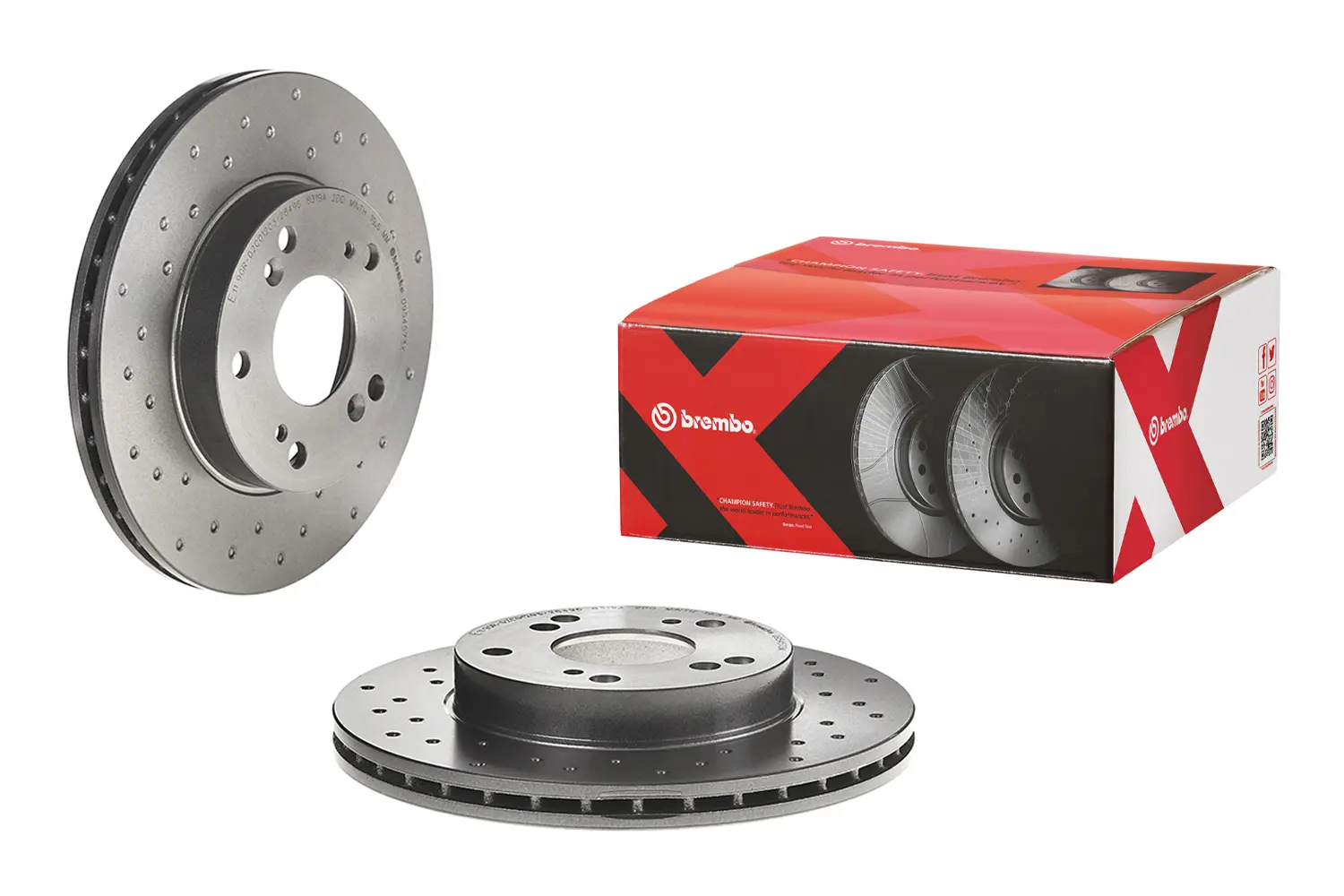

The 09.5457.3X Xtra brake disc is synonymous with reliability

The Brembo Xtra brake disc features holes on the braking surface. The holes are designed to improve the cooling of the braking system, to generate greater fading resistance and grip in the initial stages of braking. The sports look is also enhanced by the presence of the UV paint.
Brembo quality
ECE-R90 certificate
Performance
Sports driving
Sporty look
High carbon
Anti-corrosion
Fastening screws

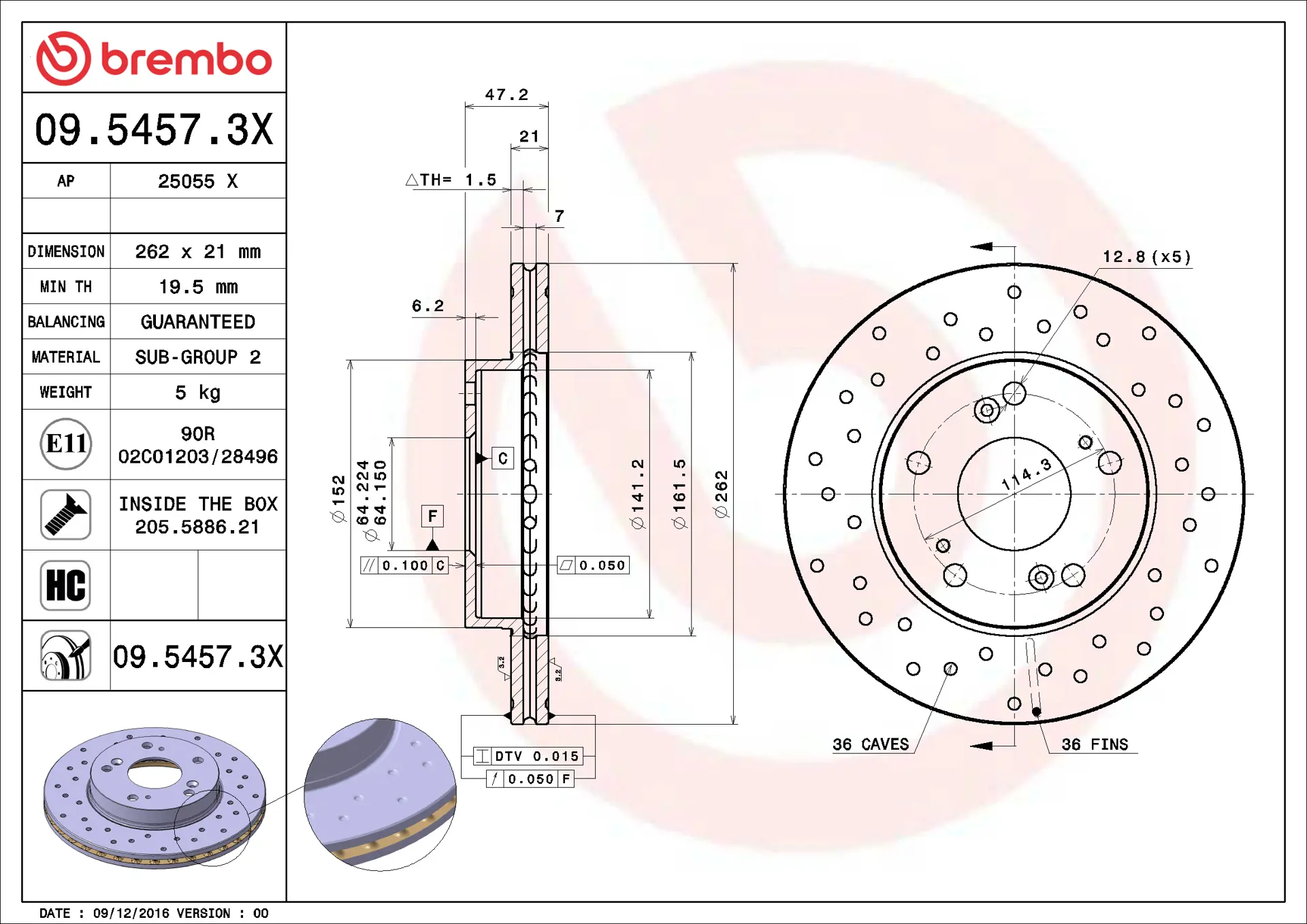

Technical specifications
Brake discs
Diameter Ø
262mm
Thickness (TH)
21mm
Height (A)
47mm
Number of holes (C)
5
Brake disc type
Ventilated
Centering (B)
64mm
Min. thickness
19,5mm
Tightening torque
108Nm
Axle
Front
Units per box
1
EAN code
8020584225721
UNECE R 90 homologation for the entire range of Brembo Xtra brake discs
The entire range of Brembo Xtra brake discs has received the new UNECE R 90 homologation. Download the UNECE R90 certification for your Brembo Xtra brake disc from the following link.
E11 90R-02C01203-28496.pdf (389.4 KB) E11 90R-02C01203-28496.pdf (389.4 KB)
If you can’t find the certificate for the Brembo Max or Brembo Xtra part number you have selected or if you live in Switzerland, please get in touch. Click here
For vehicles circulating in Switzerland, an additional certification is required. It is issued exclusively by Rhiag Switzerland, our distributor for this market, at the time of purchase of the discs. For more information please visit the following link: https://www.rhiag.ch/it/contatto
For any enquiries, please write to information request
Product images, packaging, labels, product design and other visual representations displayed on this website are intended to provide a general indication of the products. Product appearance, packaging configuration, markings, colours, finishes and included components may vary from those shown as a result of manufacturing, sourcing, regulatory, technical or commercial requirements. The quantity of items included as well as the applicable technical characteristics and specifications are those set out in the relevant technical specifications table.
Discs in comparison
Prime
Prime
Max
Max
Xtra
Xtra
Sport
Sport
GT Kit
GT Kit
Type of use Road use Road use and sports driving Road use and sports driving Road use and sports driving Track use
Installation No modifications required for installation No modifications required for installation No modifications required for installation No modifications required for installation Must be verified
Feature OE equivalent design Grooved brake disc Drilled brake disc TY3 grooved brake disc Oversized braking system
Performance OE equivalent Exceeds OE Exceeds OE Exceeds OE Exceeds OE
Corrosion treatment UV coated or Zinc coated UV coated UV coated UV coated Zinc coated
Technical content Exceeds OE Exceeds OE Exceeds OE Exceeds OE Exceeds OE
Quality Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo
certified quality
Download comparison table
