Prime Line

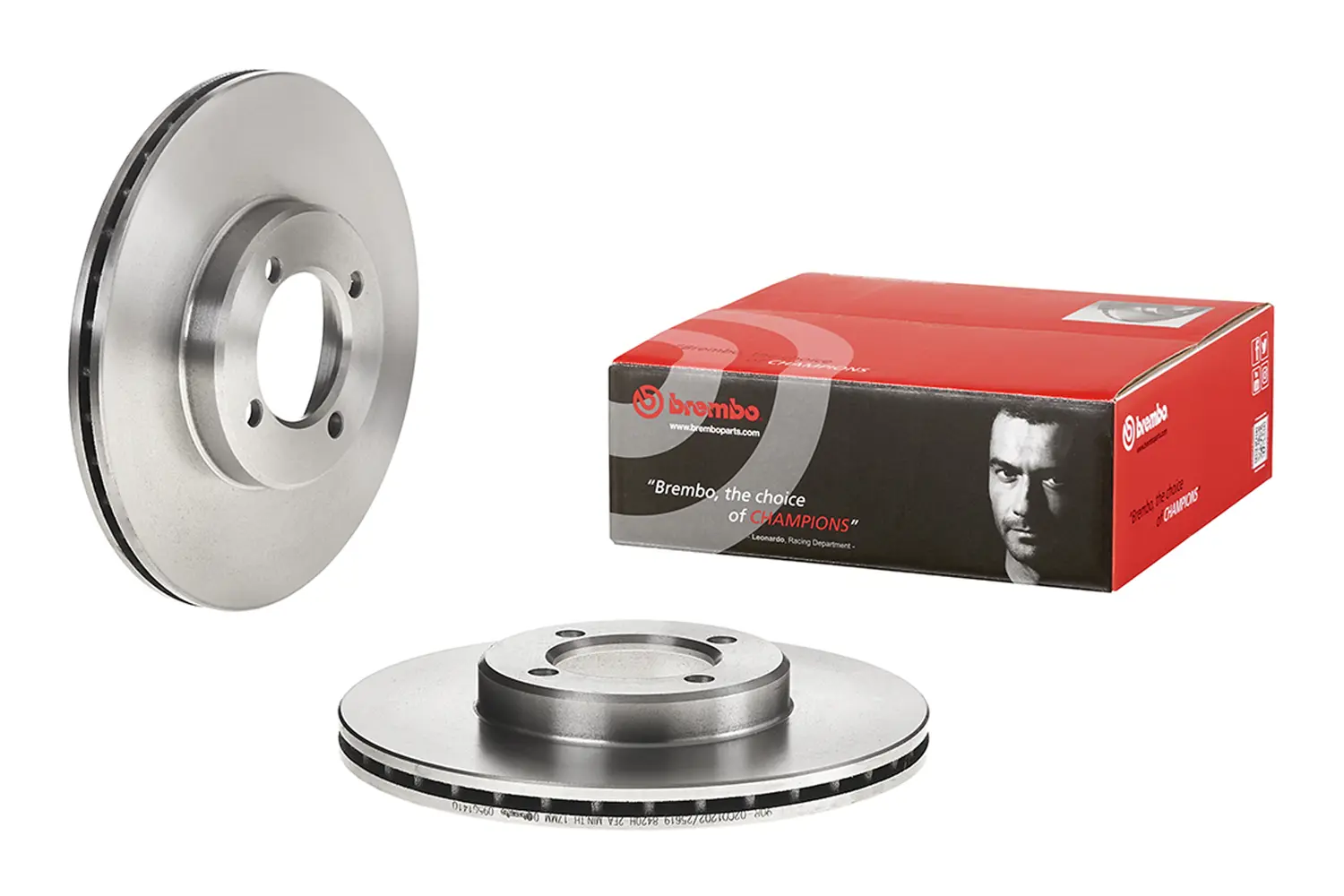

Brake disc 09.5614.10

Save vehicle in the list

The 09.5614.10 brake disc is synonymous with reliability

The Brembo brake disc is fully interchangeable with an Original Equipment brake disc. The control of the entire production cycle allows Brembo to offer brake discs with outstanding performance levels, reliability, durability and comfort in all conditions of use. All Brembo brake discs are accompanied by the ECE-R90 homologation.
OE-equivalent
Brembo quality
ECE-R90 certificate
Safety

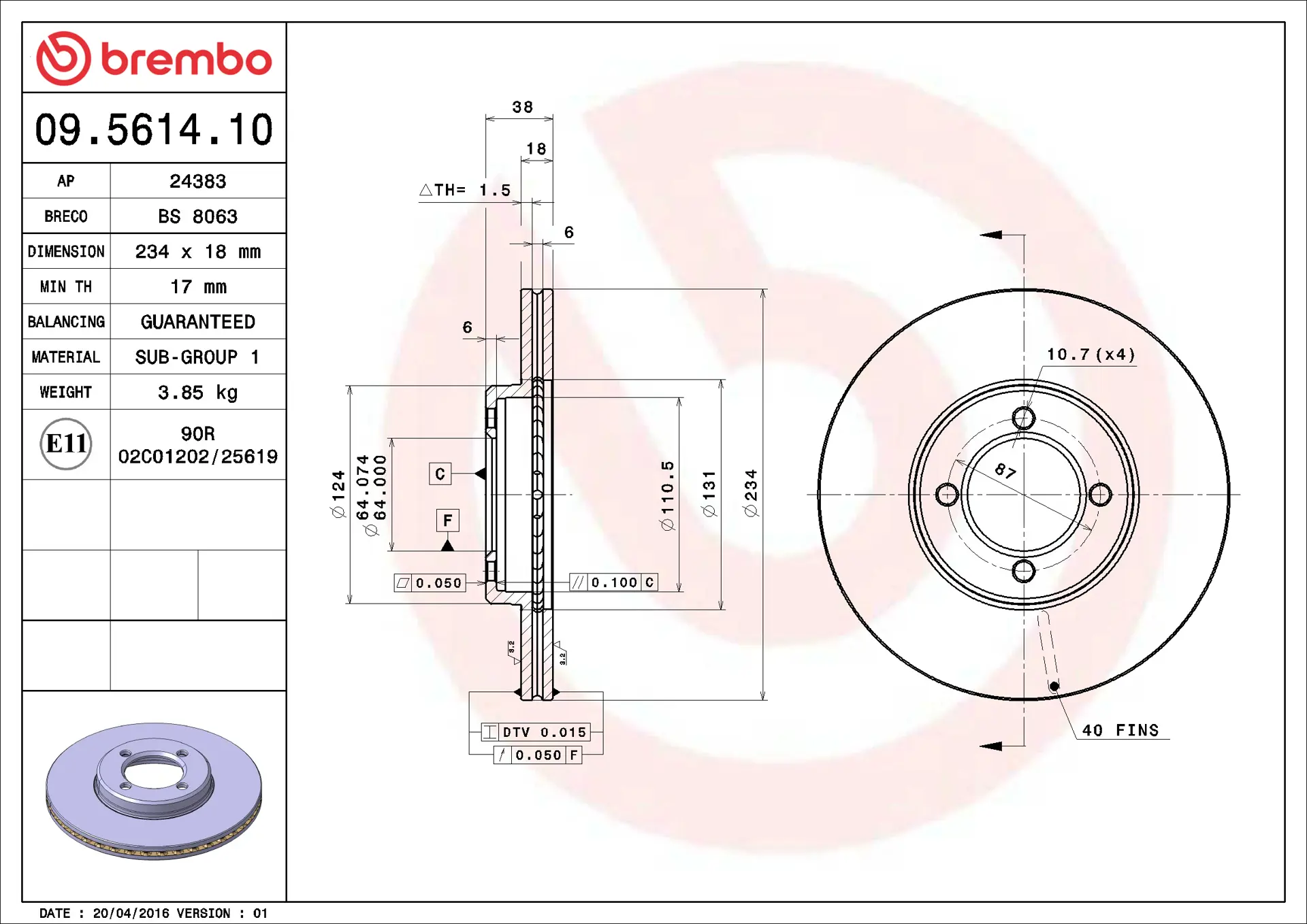

Technical specifications
Brake discs
Diameter Ø
234mm
Thickness (TH)
18mm
Height (A)
38mm
Number of holes (C)
4
Brake disc type
Ventilated
Centering (B)
64mm
Min. thickness
17mm
Tightening torque
103Nm
Axle
Front
Units per box
1
EAN code
8020584561416
Product images, packaging, labels, product design and other visual representations displayed on this website are intended to provide a general indication of the products. Product appearance, packaging configuration, markings, colours, finishes and included components may vary from those shown as a result of manufacturing, sourcing, regulatory, technical or commercial requirements. The quantity of items included as well as the applicable technical characteristics and specifications are those set out in the relevant technical specifications table.
Discs in comparison
Prime
Prime
Max
Max
Xtra
Xtra
Sport
Sport
GT Kit
GT Kit
Type of use Road use Road use and sports driving Road use and sports driving Road use and sports driving Track use
Installation No modifications required for installation No modifications required for installation No modifications required for installation No modifications required for installation Must be verified
Feature OE equivalent design Grooved brake disc Drilled brake disc TY3 grooved brake disc Oversized braking system
Performance OE equivalent Exceeds OE Exceeds OE Exceeds OE Exceeds OE
Corrosion treatment UV coated or Zinc coated UV coated UV coated UV coated Zinc coated
Technical content Exceeds OE Exceeds OE Exceeds OE Exceeds OE Exceeds OE
Quality Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo
certified quality
Download comparison table
