Essential Line

Drum 14.C184.10

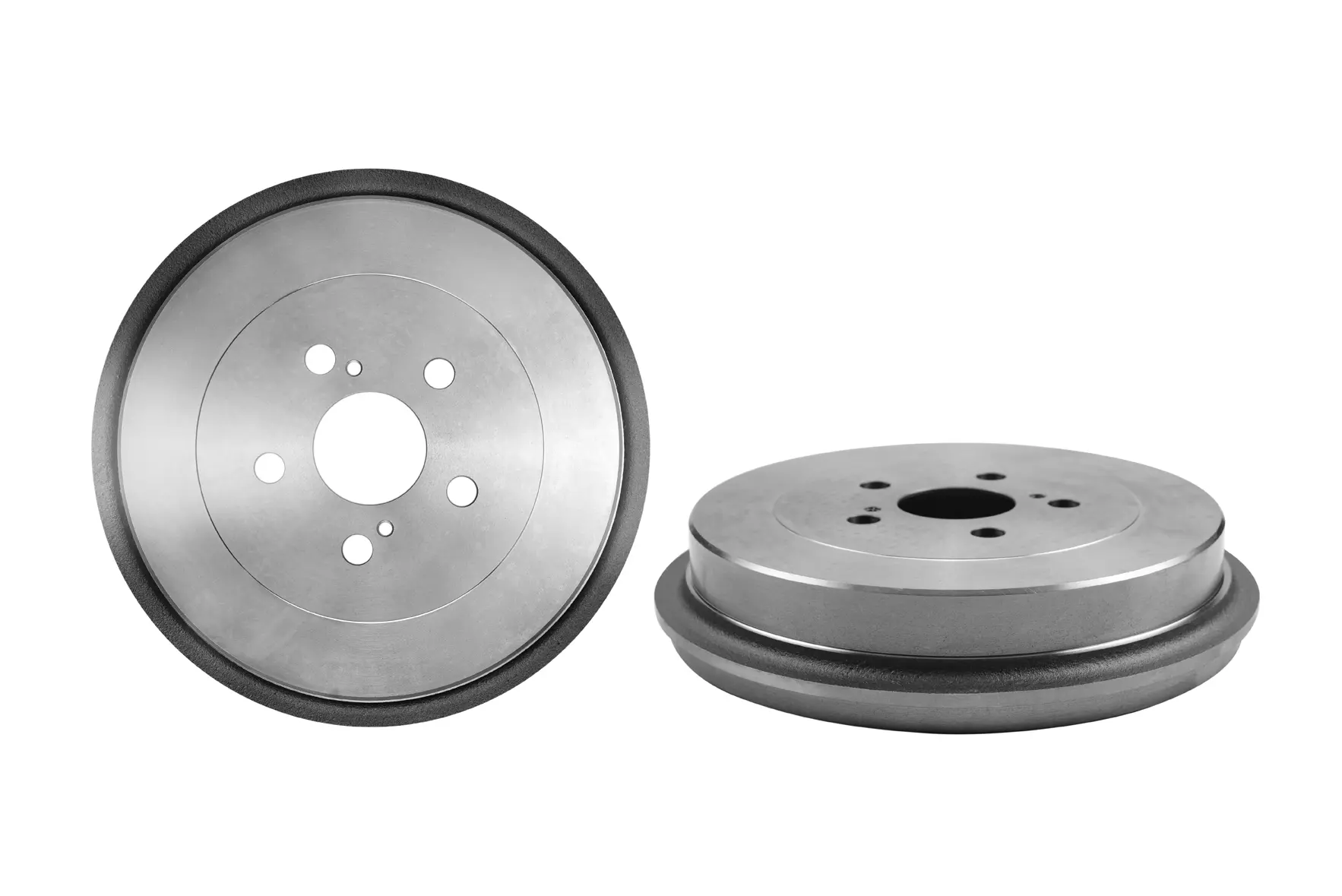

Name: Drum 14.C184.10
Brand: Brembo
SKU: 14.C184.10

The 14.C184.10 drum is synonymous with reliability

Brembo has developed several design solutions for drum brakes which combine multiple materials to reduce the overall weight. The most popular range of lamellar graphite cast iron drums is supplemented by cast iron drums with a steel sprocket flange and aluminium drums, whereby only the inner part of the drum on which the shoes operate are made of lamellar cast iron, namely the brake band. Additionally drums with built-in bearing kit and hub are added to this range.

OE-equivalent

Brembo quality

Safety

Durability

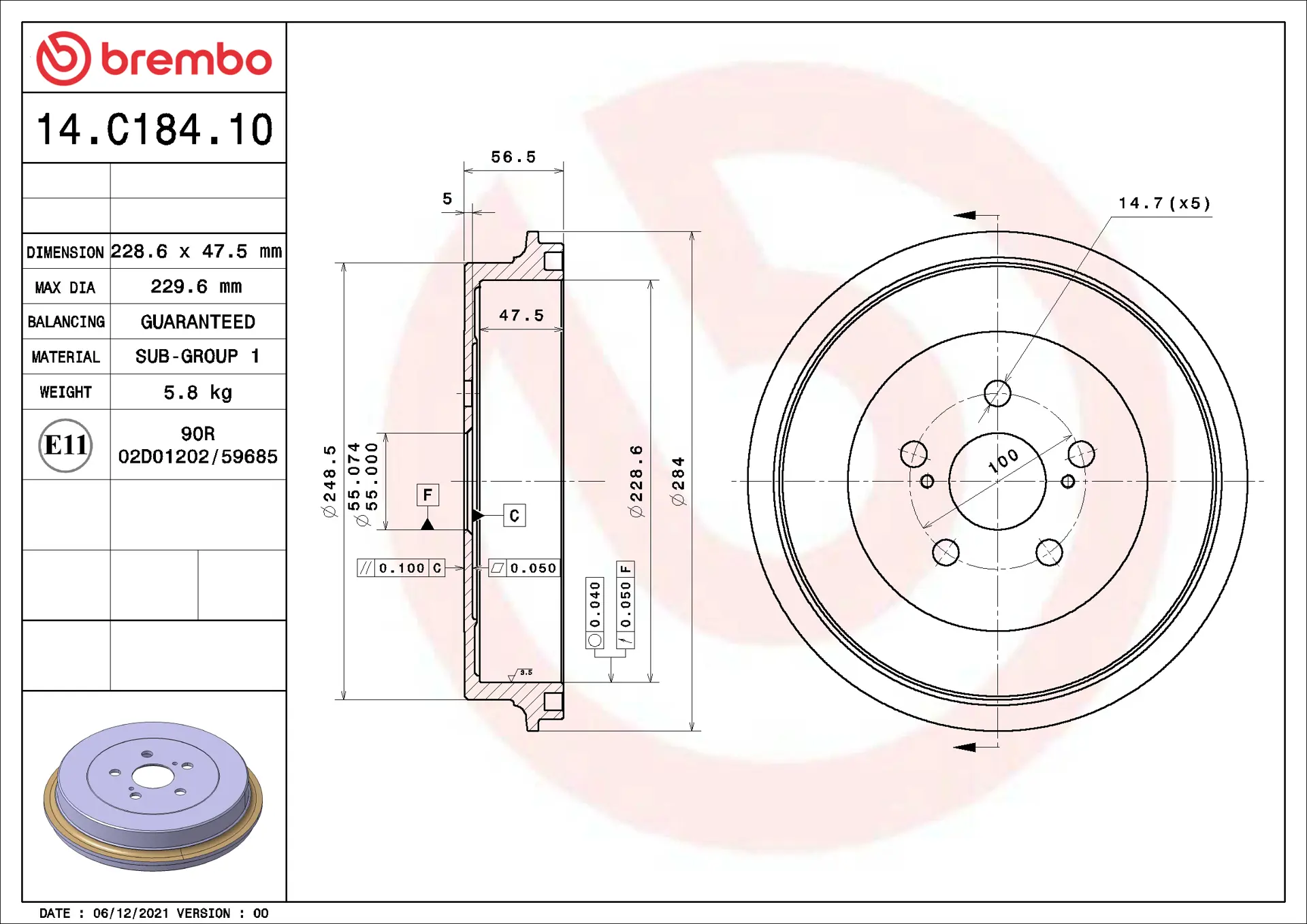

Technical specifications

Diameter

228,6mm

Width

47mm

Height

56,5mm

Number of holes

Centering

55mm

Max diameter

229,6mm

Axle

Rear

EAN code

8020584033586

Assembly instructions

Limited Warranty
